SELECT A DIAGRAM

Diagram for 01 - Cabinet And Drain Block Assy
01 - Cabinet And Drain Block Assy

Diagram for 02 - Cabinet Back
02 - Cabinet Back

Diagram for 03 - Door Assemblies
03 - Door Assemblies

Diagram for 04 - Door, Hinges And Accessories
04 - Door, Hinges And Accessories

Diagram for 05 - Evaporator And Fan Motor Assemblies
05 - Evaporator And Fan Motor Assemblies

Diagram for 06 - Ice Maker Assy And Parts
06 - Ice Maker Assy And Parts

Diagram for 07 - Ladders, Lower Cabinet And Rollers
07 - Ladders, Lower Cabinet And Rollers

Diagram for 08 - Machine Compartment
08 - Machine Compartment

Diagram for 09 - Shelving And Crisper Assemblies
09 - Shelving And Crisper Assemblies


New Model Search:


1-855-472-4566
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
11 67006692 Screw, Shoulder   (Replaces: M0238105) Special Order $ 10.79

12 10436603 Cover, Glass Shelf Rail Appelez-nous -
13 10433805 Rail, Crisper Back Appelez-nous -
22 10436604 Cover, Glass Shelf Rail Appelez-nous -
23 10467802 Band, Crisper Control (18-19) Appelez-nous -
31 10451405 Extrusion Mk Rear Appelez-nous -
32 10562504 Ext, Gl Shelf Side Appelez-nous -
33 10797501 Slide, Crisper Appelez-nous -
41 10450320 Extr-mk Front Appelez-nous -
42 10370014 Glass, Shelf (18-19) Appelez-nous -
43 10432703 Rail, Side Crisper Appelez-nous -
51 10440904 Sleeve, Mt Kpr. Appelez-nous -
52 10681402 Rail, Pntd Appelez-nous -
53 10432704 Rail, Side Crisper Appelez-nous -
61 10681403 Rail, Pnt Appelez-nous -
62 10436906 Extr, Gl Shelf Rear Appelez-nous -
63 10432805 Rail, Ctr. Crisper Special Order $ 21.50

71 10681402 Rail, Pntd Appelez-nous -
72 10436816 Ext-gl Shlf Front Appelez-nous -
73 10432806 Rail, Ctr. Crisper Special Order $ 23.67

81 10445702 Scoop, Air Appelez-nous -
82 WPW10348409 Screw, Mounting   (Replaces: M0211533) In-Stock Immediately $ 8.20

83 10687701 Rail, Crisper Fr0nt(r) Appelez-nous -
91 10588201 Slide, Mtkp Cont. Appelez-nous -
93 10687702 Rail, Crisper Front(l) Appelez-nous -
101 10454003 Band, Mk Control Appelez-nous -
103 10435605 Rail, Crisper Back Appelez-nous -
111 10417301 Glide, Meat Kpr. Appelez-nous -
113 10481001 Roller, Pan Special Order $ 10.99

121 10432101 Glide, Meat Kpr. Appelez-nous -
131 10417115 Pan, Meat Keeper Appelez-nous -
133 10370016 Glass, Shelf (18) Appelez-nous -
141 10370014 Glass, Shelf (18-19) Appelez-nous -
151 10562504 Ext, Gl Shelf Side Appelez-nous -
171 10481001 Roller, Pan Special Order $ 10.99

173 67006692 Screw, Hi Lo   (Replaces: M0237932) Special Order $ 10.79

183 10688060 Extr-r Crisp Front Appelez-nous -
191 WPW10348409 Screw, Mounting   (Replaces: M0211533) In-Stock Immediately $ 8.20

193 10688059 Extr-l Crisp Front Periwinkle Appelez-nous -
203 10530205 Seal, Crisper Appelez-nous -
213 67006692 Screw, Shoulder   (Replaces: M0238105) Special Order $ 10.79

251 12027302 Stop- Slide   (Replaces: 12019302) Special Order $ 10.36


    View Diagram in Separate Window     Print Icon   Print Part List

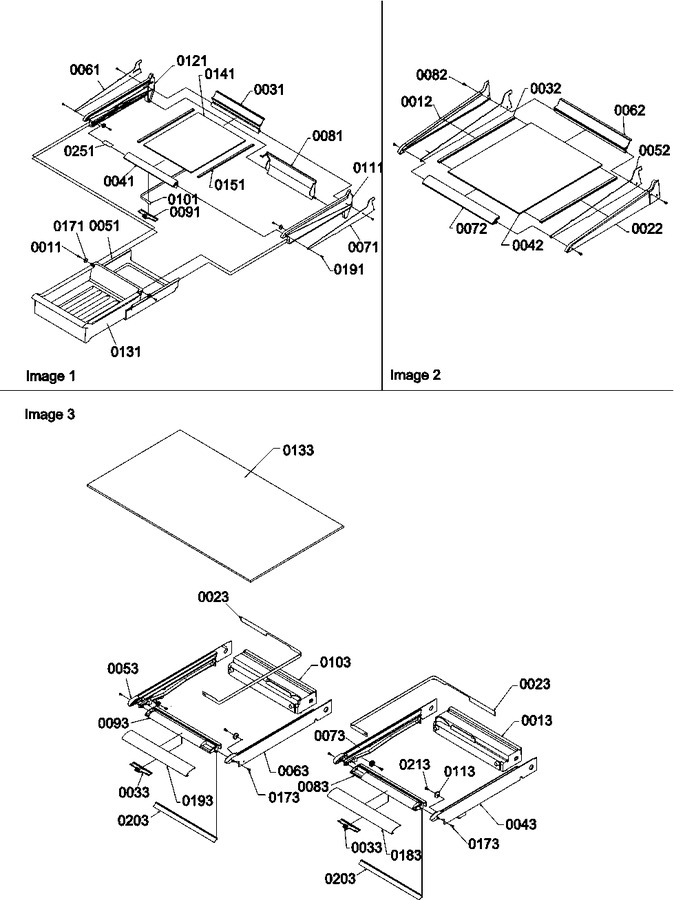

Diagram for TS19VL (BOM: P1306302W L)
