SELECT A DIAGRAM

01 - Cabinet Back


02 - Door Assemblies


03 - Door, Hinges And Accessories


04 - Evap And Fan Motor Assemblies

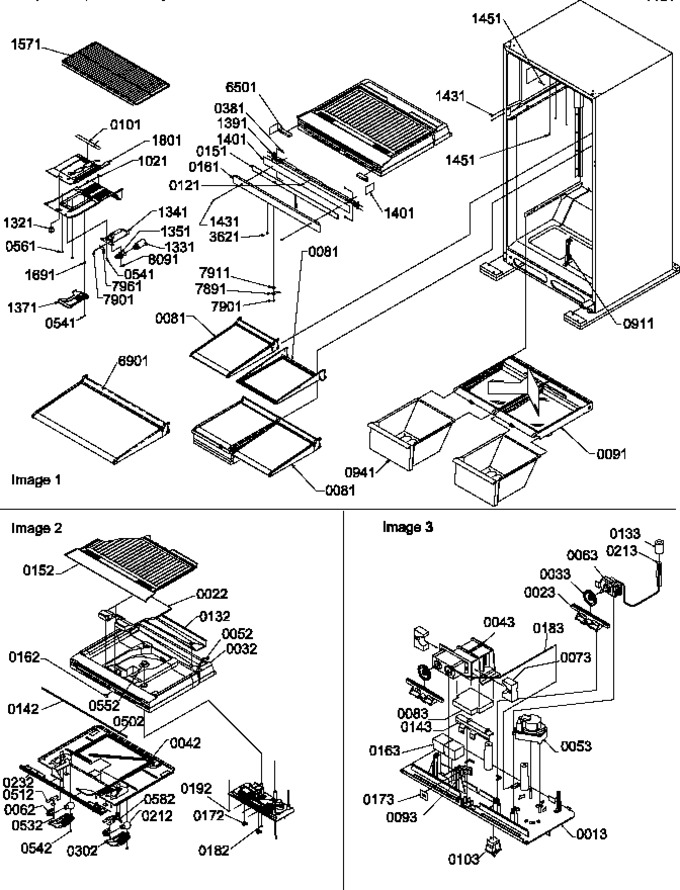

05 - Ice Maker Assy And Parts


06 - Interior Cabinet And Drain Block Assy


07 - Ladders, Lower Cabinet And Rollers


08 - Machine Compartment


09 - Shelving Assemblies


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
13	12035103		Housing, Control		Appelez-nous	-
22	10476401		Insert-drain Blk		Appelez-nous	-
23	10439601		Rack, Control		Appelez-nous	-
32	10996002		Block, Drain		Appelez-nous	-
33	10442601		Pinion, Control		Appelez-nous	-
42	12035208		Ref Top E-ct		Appelez-nous	-
43	R0161072		Assy, Damper Control		Appelez-nous	-
52	10781101		Harness, Mullion		Appelez-nous	-
53	10428602		Timer-defrost		Appelez-nous	-
62	D7845103		Socket, Light		Appelez-nous	-
63	R0161084		Assy, Fz Control		Appelez-nous	-
73	10442801		Insert,damper		Appelez-nous	-
81	10480424		Assy, Glass Shelf		Appelez-nous	-
83	10442901		Insulation, Damper		Appelez-nous	-
91	10698545		Crisper Frame Assy		Appelez-nous	-
93	10279202		Switch, Heater		Appelez-nous	-
101	B8386613		Gasket		Appelez-nous	-
103	W11384469		Switch, Light   (Replaces: C3680308)			Immediately	$ 39.09
121	67006425		Screw, Sm   (Replaces: M0238616)			Immediately	$ 7.30
132	10435911		Tray, Drip		Appelez-nous	-
133	10673602		Insulation, Cap		Appelez-nous	-
142	10450837		Membrane-breaker Sl1		Appelez-nous	-
143	10565101		Shield, Wire		Appelez-nous	-
151	10543608		Heater- Mullion		Appelez-nous	-
152	10995001		Bottom, Frz		Appelez-nous	-
161	10433346		Mullion, Center (white)		Appelez-nous	-
162	10752201		Cap-switch		Appelez-nous	-
163	10900801		Shield, Cont Hsg.		Appelez-nous	-
172	10565401		Knob, Control		Appelez-nous	-
173	10877103		Cover, Switch		Appelez-nous	-
182	67006425		Screw, Sm   (Replaces: M0238616)			Immediately	$ 7.30
183	A3012542		Tube-plastic		Appelez-nous	-
192	M0224128		Screw		Appelez-nous	-
212	M0360402		Light Bulb (230/240 Vac)		Appelez-nous	-
213	A3012543		Tube-plastic		Appelez-nous	-
232	10435513		Frame, Ref Top Brk		Appelez-nous	-
302	10508701		Shield, Refrig. Light		Appelez-nous	-
381	R9800670		Screw, Tf   (Replaces: M0238731)				$ 10.58
502	10775302		Heater, Ref Top		Appelez-nous	-
512	10907501		Brkt, Light		Appelez-nous	-
532	M0223328		Screw		Appelez-nous	-
541	WP90767		Screw   (Replaces: M0216716)			Immediately	$ 8.25
542	WP90767		Screw   (Replaces: M0216716)			Immediately	$ 8.25
552	10993701		Cap-air		Appelez-nous	-
561	WP98165		Screw, Sm   (Replaces: M0211018)				$ 8.57
582	WP489128		Screw   (Replaces: M0253516)				$ 11.40
911	10461901		Post, Crisper Support			Immediately	$ 25.85
941	10430216		Pan-crisper		Appelez-nous	-
1021	10440403		Duct, Frz Air		Appelez-nous	-
1321	W11384469		Switch, Light   (Replaces: C3680308)			Immediately	$ 39.09
1331	M0360402		Light Bulb (230/240 Vac)		Appelez-nous	-
1341	D7861803		Housing-light		Appelez-nous	-
1351	D7845103		Socket, Light		Appelez-nous	-
1371	10678401		Shield, Frz Light		Appelez-nous	-
1391	10433610		Plate, Center Top		Appelez-nous	-
1401	B0523584		Insulation Per Ft.		Appelez-nous	-
1431	WP67001130		Plug, Top Hinge Button (wht)   (Replaces: M0310729)			Immediately	$ 5.98
1451	M0311602		Plug, Button (white)		Appelez-nous	-
1571	Y10440001		Shelf, Wire Frz. (18)		Appelez-nous	-
1691	M0580007		Grommet, Screw		Appelez-nous	-
1801	10779601		Insul. Air Duct		Appelez-nous	-
3621	M0211520		Screw - Sm		Appelez-nous	-
6501	10772301		Insulation		Appelez-nous	-
7891	M0320901		Terminal		Appelez-nous	-
7901	A4539626		Pop Rivet		Appelez-nous	-
7911	M0272803		Lock Washer		Appelez-nous	-
7961	M0320905		Terminal Ground A		Appelez-nous	-
8091	M0223328		Screw		Appelez-nous	-
NI	10785801		Harness, Control		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
