SELECT A DIAGRAM

01 - Cabinet


02 - Refrigerator Liner


03 - Refrigerator Shelf


04 - Freezer Liner


05 - Motor And Ice Container


06 - Refrigerator Door


07 - Freezer Door


08 - Dispenser Front


09 - Unit


10 - Air Flow


11 - Control


12 - Icemaker, Lit/optional

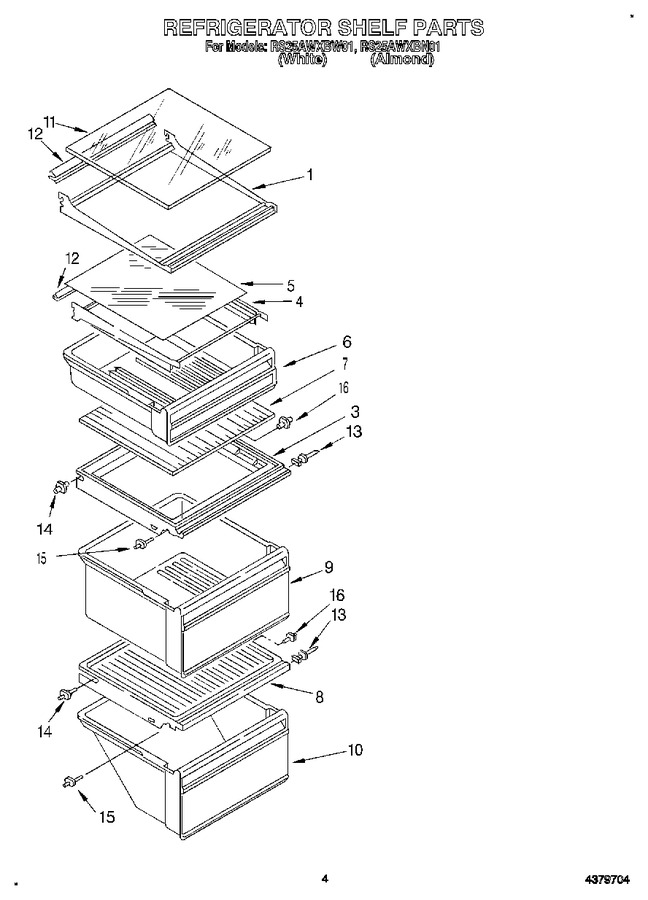

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2163572		Shelf Assembly, Cantilever (2)		Appelez-nous	-
3	WP1126289		Cover, Crisper   (Replaces: 2163672)				$ 190.80
4	2173125		Shelf, Cantilever (snack Bin)		Appelez-nous	-
5	2173126		Glass (snack Bin)		Appelez-nous	-
6	2173113		Snack Bin		Appelez-nous	-
7	2163673		Glass, Crisper Cover		Appelez-nous	-
8	WP2148298		Cover, Meat Pan   (Replaces: 1126323)				$ 183.32
9	2163663		Pan, Crisper		Appelez-nous	-
10	2163666		Pan, Meat		Appelez-nous	-
11	2163573		Glass, Shelf		Appelez-nous	-
12	1125594		Retainer, Glass		Appelez-nous	-
13	4388538		Shelf Stud   (Replaces: 2147997)			Immediately	$ 32.85
14	1115290		Shelf Stud				$ 7.61
15	WP2149540		Shelf Stud   (Replaces: 2149540)				$ 10.96
16	4388538		Shelf Stud   (Replaces: 1110718)			Immediately	$ 32.85

    View Diagram in Separate Window       Print Part List
