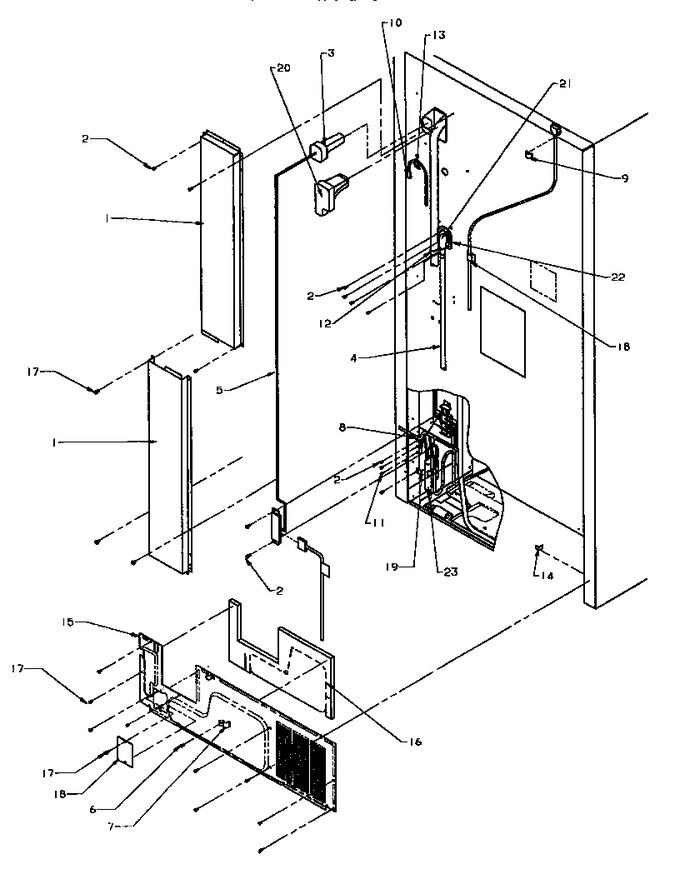

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	10442202		Cover, Heat Exch.		Appelez-nous	-
2	M0227217		Screw, Sm		Appelez-nous	-
3	10699301		Grommet		Appelez-nous	-
4	10908101		Tube, Drain		Appelez-nous	-
5	10573604		Harness, Cab. Wire		Appelez-nous	-
6	M0227217		Screw, Sm		Appelez-nous	-
7	10547101		Clip, Tube		Appelez-nous	-
8	M0103904		Clamp, Speed		Appelez-nous	-
9	WPM0114003		Clip, Speed   (Replaces: M0114003)				$ 11.60
10	10678501		Cord, Power		Appelez-nous	-
11	M0232317		Screw		Appelez-nous	-
12	B8372901		Clamp		Appelez-nous	-
13	WPM0104106		Clip,cord   (Replaces: M0104101)				$ 8.17
14	B5720303		Clip		Appelez-nous	-
15	10467912		Back, Mach Comp		Appelez-nous	-
16	10584601		Insulation, Mach Comp Bk		Appelez-nous	-
17	WP12990527		Screw   (Replaces: M0219916)			Immediately	$ 8.76
18	WPM0104106		Clip,cord   (Replaces: M0104101)				$ 8.17
19	10547001		Clip, Drier		Appelez-nous	-
20	10428001		Plug, Ht Exch V		Appelez-nous	-
21	10163201		Elbow Drain Tube		Appelez-nous	-
22	A3132301		Gasket		Appelez-nous	-
23	Y00000000		See Note Drier-hi Side		Appelez-nous	-
NI	YNOTE		Not Warranted As An Assembly.		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
