SELECT A DIAGRAM

01 - Cabinet


02 - Refrigerator Liner


03 - Refrigerator Shelf


04 - Freezer Liner


05 - Motor And Ice Container


06 - Refrigerator Door


07 - Freezer Door


08 - Dispenser Front


09 - Unit


10 - Air Flow


11 - Control


12 - Icemaker, Lit/optional

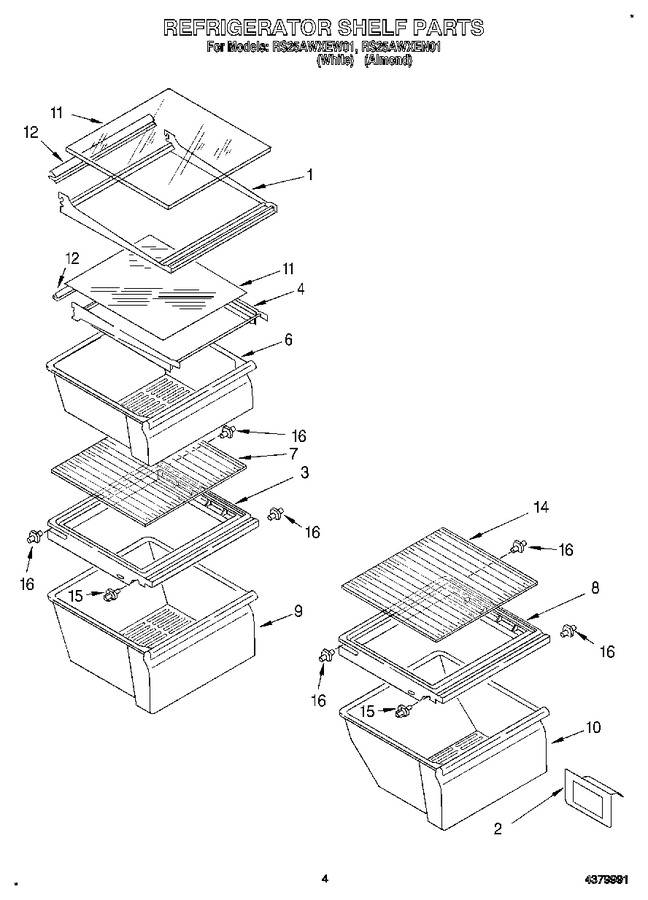

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2163572		Shelf Assembly, Cantilever (2)		Appelez-nous	-
2	2179350		Deflector				$ 85.89
3	W10508993		Cover, Crisper   (Replaces: 2173394)				$ 305.85
4	2179443		Shelf, Cantilever (snack Bin)				$ 116.68
6	W11497323		Snack Bin   (Replaces: 2174421)				$ 234.84
7	W10864399		Glass, Crisper Cover   (Replaces: 2173405)				$ 232.03
8	W10508993		Cover, Meat Pan   (Replaces: 2182710)				$ 305.85
9	WP2188656		Pan, Crisper   (Replaces: 2173386)				$ 143.22
10	WP2188664		Pan, Meat   (Replaces: 2173387)			Immediately	$ 92.70
11	2163573		Glass, Shelf		Appelez-nous	-
12	1125594		Retainer, Glass		Appelez-nous	-
14	W10864399		Glass, Meat Cover   (Replaces: 2179259)				$ 232.03
15	4388539		Shelf Stud   (Replaces: 2172943)				$ 22.28
16	4388538		Shelf Stud   (Replaces: 1110718)			Immediately	$ 32.85
