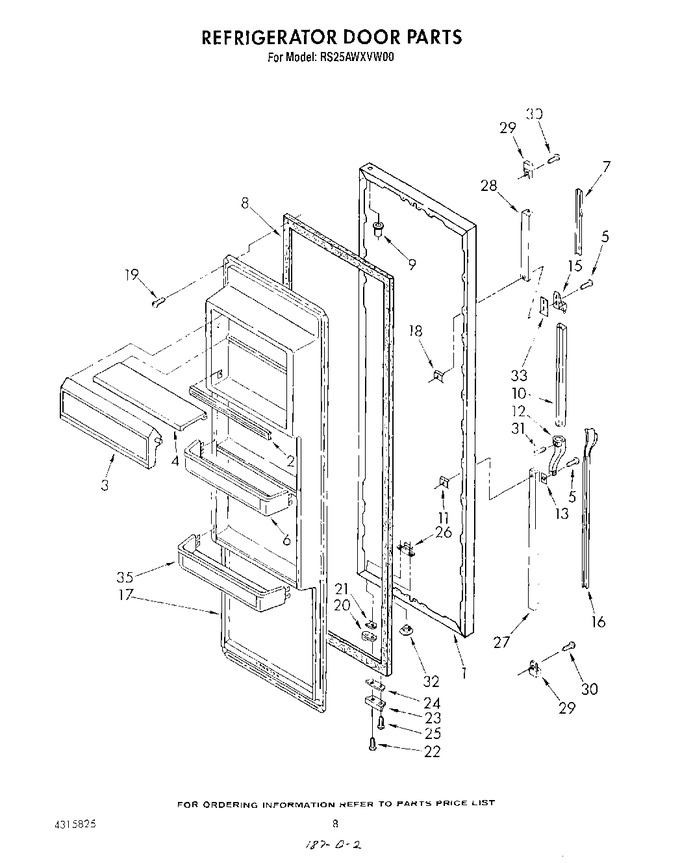

RS25AWXVL00 | Leon's : Appliance Model Lookup

Diagram #	Part Number	Description	Availability	Ships	Price
1	1124504	Refrigerator Door (white)	Appelez-nous	-
1	1124505	Refrigerator Door (almond)	Appelez-nous	-
2	1124512	Trim, Door Shelf	Appelez-nous	-
3	1124511	Door, Compartment	Appelez-nous	-
4	1116707	Shelf, Compartment	Appelez-nous	-
5	WP488729	Screw (3) (Replaces: 489222)		Immediately	$ 8.28
6	1124513	Trim, Door Shelf	Appelez-nous	-
7	1124508	Insert, Handle	Appelez-nous	-
8	1118191	Door Gasket, Magnetic	Appelez-nous	-
9	509929	Cap, Hinge Sleeve	Appelez-nous	-
10	1119757	Handle, Center	Appelez-nous	-
11	941242	Screw Anchor	Appelez-nous	-
12	1109189	End Cap, Center Handle	Appelez-nous	-
13	935075	Shim	Appelez-nous	-
15	936930	End Cap, Handle	Appelez-nous	-
16	1124510	Insert, Handle	Appelez-nous	-
17	1120533	Panel, Interior Door	Appelez-nous	-
18	WP939101	Screw, Anchor (Replaces: 939101)			$ 7.88
19	WPW10141645	Screw (repair) (Replaces: 489084)			$ 8.05
19	WP489069	Screw, 7 X 1/2 (32) (Replaces: 489101)		Immediately	$ 8.40
20	4318165	Door Closer, Upper Cam (Replaces: 1115905)		Immediately	$ 29.74
21	WP1104787	Shim, Door Closer (Replaces: 1104787)			$ 7.96
22	WP489069	Screw, 8 X 1/2 (Replaces: 488938)		Immediately	$ 8.40
23	1115906	Bracket, Door Stop	Appelez-nous	-
24	988421	Shim	Appelez-nous	-
25	488549	Screw, 8 X 1/2	Appelez-nous	-
26	988402	Tap Plate	Appelez-nous	-
27	1119360	Retainer, Insert (bottom)	Appelez-nous	-
28	1124507	Retainer, Insert (top)	Appelez-nous	-
29	941259	End Cap (2)	Appelez-nous	-
30	00489248	Screw, 10-32 X 5/8 (2) (Replaces: 489248)			$ 38.59
31	489022	Screw, 6-20 X 3/8 (2)	Appelez-nous	-
32	534927	Hole Plug (2)	Appelez-nous	-
33	935076	Shim, End Cap	Appelez-nous	-
35	1124514	Trim, Shelf (2)	Appelez-nous	-
