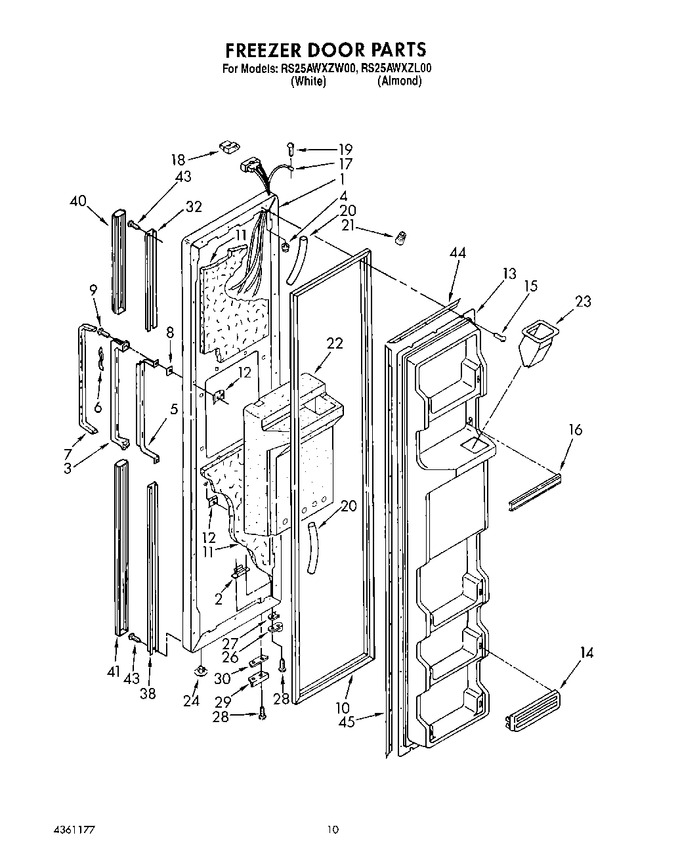

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2147506		Freezer, Door Panel (almond (also Order Item 11))		Appelez-nous	-
1	2147504		Freezer, Door Panel (white)		Appelez-nous	-
2	988402		Tap Plate		Appelez-nous	-
3	1127464		Handle		Appelez-nous	-
4	939886		Seal, Hinge Pin		Appelez-nous	-
5	1127465		Reinforcement, Handle		Appelez-nous	-
6	849445		Clip, Handle (3)		Appelez-nous	-
7	2147581		Insert, Handle		Appelez-nous	-
8	2147097		Shim, Handle (2)		Appelez-nous	-
9	WPW10141645		Screw, 8 X 1/2   (Replaces: 489084)				$ 8.05
10	1127308		Door Gasket, Magnetic		Appelez-nous	-
11	876029		Foam Insulation (required When Replacing Exterior Door Panel)		Appelez-nous	-
12	WP939101		Screw Anchor (4)   (Replaces: 939101)				$ 7.88
13	1129231		Panel, Interior Door		Appelez-nous	-
14	1124525		Trim, Door Shelf		Appelez-nous	-
15	WP489069		Screw, 7 X 1/2 (28)   (Replaces: 489101)			Immediately	$ 8.40
16	1124524		Trim, Door Shelf		Appelez-nous	-
17	1116960		Harness, Door (includes Illustration 18)		Appelez-nous	-
18	936183		Connector, Plug		Appelez-nous	-
19	WP488234		Screw, 8-32 X 5/32   (Replaces: 488889)				$ 7.08
20	1119060		Tube, Door Wiring		Appelez-nous	-
21	227991		Wire Connector		Appelez-nous	-
22	1115345		Insulation, Dispenser		Appelez-nous	-
23	987188		Chute, Ice		Appelez-nous	-
24	534927		Hole Plug (white)		Appelez-nous	-
24	989197		Hole Plug (almond)		Appelez-nous	-
26	4318165		Door Closer, Upper Cam   (Replaces: 1115905)			Immediately	$ 29.74
27	WP1104787		Shim, Door Closer   (Replaces: 1104787)				$ 7.96
28	WP489069		Screw, 8 X 1/2   (Replaces: 488938)			Immediately	$ 8.40
29	1115906		Bracket, Door Stop		Appelez-nous	-
30	988421		Shim		Appelez-nous	-
32	2147895		Retainer (top)		Appelez-nous	-
38	2147896		Retainer (bottom)		Appelez-nous	-
40	1127470		Extension (top)		Appelez-nous	-
41	1127473		Extension (bottom)		Appelez-nous	-
43	WP489478		Screw   (Replaces: 489242)				$ 8.18
44	1118306		Retainer, Gasket		Appelez-nous	-
45	1118302		Retainer, Gasket		Appelez-nous	-
