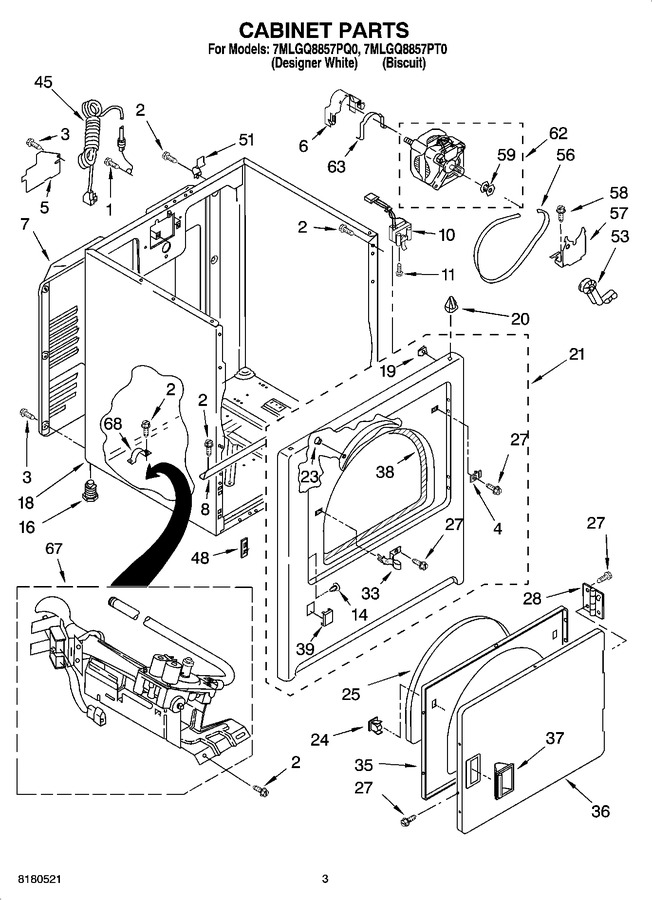

02 - Cabinet Parts


03 - Bulkhead Parts


04 - 8318272 Burner Assembly, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10850756		Screw, 10-32 X 5/8 (external Ground)   (Replaces: 697776)				$ 7.76
2	WP681414		Screw,10-16 X 1/2   (Replaces: 343641)			Immediately	$ 7.85
3	WP693995		Screw, Hex Head   (Replaces: 693995)			Immediately	$ 7.19
4	WP3403630		Plug, Strike Hole (white)   (Replaces: 3403630)				$ 7.53
4	3403632		Plug, Strike Hole (biscuit)		Appelez-nous	-
5	W11539855		Cover, Block   (Replaces: 3396795)			Immediately	$ 599.76
6	WP3404162		Clamp, Motor (w/shield)   (Replaces: 3404162)			Immediately	$ 7.82
7	280043		Panel, Rear   (Replaces: 3396805)				$ 341.30
8	8541400		Bracket, Cabinet		Appelez-nous	-
10	WP3406107		Door, Switch Assembly   (Replaces: 3406107)			Immediately	$ 31.20
11	WP3395530		Screw, 6-20 X 7/8   (Replaces: 697773)				$ 7.70
14	WP3404413		Plug, Hinge Hole (white)   (Replaces: 3404413)			Immediately	$ 7.95
14	3404415		Plug, Hinge Hole (biscuit)		Appelez-nous	-
16	49621		Foot - Optional (extended Length Package Of 2 ) (not Included)   (Replaces: 279810)			Immediately	$ 8.55
16	49621		Foot, Dryer   (Replaces: 3392100)			Immediately	$ 8.55
18	8530606		Cabinet (includes Illus. 8) (biscuit)		Appelez-nous	-
18	8533643		Cabinet (includes Illus. 8) (white)   (Replaces: 8530603)				$ 399.26
19	WP98234		Clip, Ground (2)   (Replaces: 98234)			Immediately	$ 11.39
20	WP18776		Lock, Front Top (2)   (Replaces: 690363)			Immediately	$ 12.68
21	8282482		Front Panel Assembly (biscuit)		Appelez-nous	-
21	3403447		Front Panel Assembly (white)		Appelez-nous	-
23	279220		Clip, Felt Pad (2)   (Replaces: 685203)				$ 20.65
24	279570		Catch, Door Assembly   (Replaces: 690081)			Immediately	$ 8.89
25	W10861521		Seal, Door   (Replaces: 3405246)			Immediately	$ 58.69
27	WP488627		Screw, 8-18 X 1/2   (Replaces: 342055)				$ 7.57
28	WPW10362431		Hinge, Door   (Replaces: 3405514)			Immediately	$ 7.91
33	W11429589		Strike, Door   (Replaces: 3403431)			Immediately	$ 20.99
35	WP3402341		Door, Rear   (Replaces: 3402341)				$ 198.77
36	W10861227		Door, Front (white)   (Replaces: 3402335)				$ 256.44
36	3402337		Door, Front (biscuit)		Appelez-nous	-
37	WP3405184		Handle, Door (white)   (Replaces: 3405184)				$ 76.01
37	WP3405189		Handle, Door (biscuit)   (Replaces: 3405189)				$ 86.72
38	W11035878		Seal & Bearing Assembly   (Replaces: 3406129)			Immediately	$ 78.78
39	3394978		Plug, Front Panel (biscuit)		Appelez-nous	-
39	3394975		Plug, Front Panel (white)				$ 5.70
45	W11222083		Cord, Power   (Replaces: 344020)				$ 120.59
48	W10854425		Clip, Front Panel   (Replaces: 3394083)			Immediately	$ 15.56
51	WP8066217		Hinge, Top (2)   (Replaces: 238088)				$ 7.82
53	WP691366		Idler & Pulley Assembly   (Replaces: 691366)			Immediately	$ 22.47
56	341241		Belt, Drive   (Replaces: 8066065)			Immediately	$ 18.15
57	WP348780		Base, Motor   (Replaces: 348780)			Immediately	$ 121.57
58	3400500		Bolt, 5/16-18 X 3/4			Immediately	$ 13.37
59	WP8066184		Pulley, 60 Hz.   (Replaces: 3394341)			Immediately	$ 51.02
62	279827		Motor Assembly 60 Hz.   (Replaces: 8538262)			Immediately	$ 191.95
63	WP660658		Clamp, Motor   (Replaces: 660658)				$ 7.83
67	W10823508		Burner Assembly, 60 Hz. (see Pages 7 & 8 For Further Burner Breakdown)   (Replaces: 8318272)				$ 490.93
68	341029		Clamp, Pipe		Appelez-nous	-
