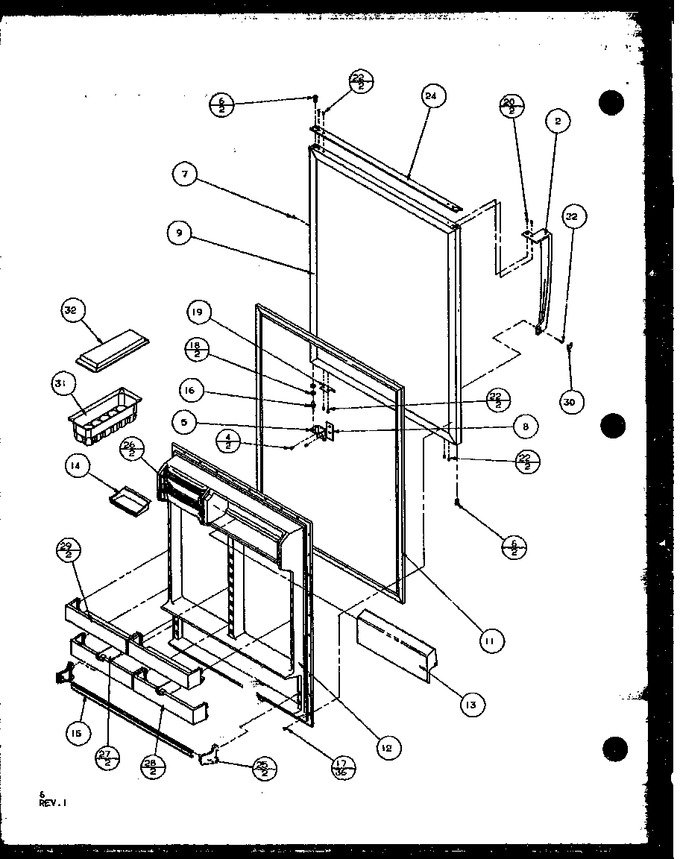

TX18QB2W (BOM: P1111412W W) | Leon's : Appliance Model Lookup

Diagram #	Part Number	Description	Availability	Ships	Price
2	10253508	Ref Handle Assy Bk	Appelez-nous	-
4	WP67006715	Screw (Replaces: M0233847)			$ 7.55
5	10163607	Btm Hinge Brkt E	Appelez-nous	-
6	10392601	Bushing	Appelez-nous	-
6	10392602	Bushing	Appelez-nous	-
7	M0310704	Plug	Appelez-nous	-
7	M0310714	Plug	Appelez-nous	-
7	WP67001130	Plug, Button (wht) (Replaces: M0310701)		Immediately	$ 5.98
8	B5744802	Shim	Appelez-nous	-
8	B5744804	Shim, Bottom Hinge	Appelez-nous	-
8	B5744803	Shim	Appelez-nous	-
8	B5744801	Kit,btm Hinge Shim	Appelez-nous	-
9	10253904Q	Assy, Refr Door	Appelez-nous	-
9	10253906Q	L Ref Dr As Cfc11	Appelez-nous	-
9	10253905Q	G Ref Dr Fm Cfc 11	Appelez-nous	-
11	D7605107	Gasket	Appelez-nous	-
12	D7805605	Inner Door Liner Ref	Appelez-nous	-
13	D7805707	Door Dairy	Appelez-nous	-
14	10310901	Tray, Butter	Appelez-nous	-
15	C8907223	Retainer Pkg	Appelez-nous	-
16	C8814901	Pin, Hinge K	Appelez-nous	-
17	M0219730	Screw			$ 7.65
18	M0274049	Washer	Appelez-nous	-
19	10266101	Stop Door	Appelez-nous	-
20	WPW10348409	Screw (Replaces: M0222429)		Immediately	$ 8.20
22	WPW10348409	Mounting Screw (Replaces: M0203944)		Immediately	$ 8.20
24	D3958306	Cap Door	Appelez-nous	-
25	D7681803	Cap, Pkg Retainer End	Appelez-nous	-
25	D7681804	Cap, Pkg Retainer End	Appelez-nous	-
26	D7806403	Container Sec. Ser.	Appelez-nous	-
27	D7806101	Snugger Door Shelf	Appelez-nous	-
28	D7574512	Retainer Cant.	Appelez-nous	-
29	D7565412	Door Shelf	Appelez-nous	-
30	10201804	Cover-handle Screw G	Appelez-nous	-
30	10201802	Cover-handle Screw W	Appelez-nous	-
30	10201806	Cover- Hndl Screw Almond	Appelez-nous	-
30	10201810	Cover, Handle Screw-blk	Appelez-nous	-
31	D7695613	Bucket, Egg A-v	Appelez-nous	-
32	D7805907	Cover-bucket	Appelez-nous	-
