SELECT A DIAGRAM

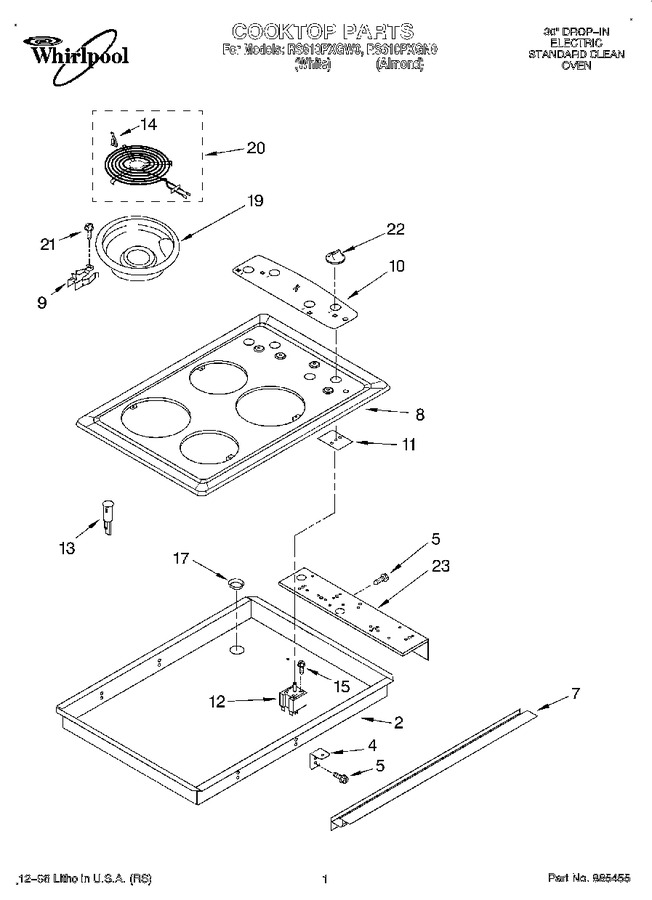

01 - Cooktop


02 - Control Panel, Literature


03 - Oven


04 - Oven Door


05 - Internal Oven


06 - Top Venting, Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	3192459		Burner Box		Appelez-nous	-
4	3192454		Bracket, Mounting		Appelez-nous	-
5	WP3196557		Screw, 8-18 X 3/8   (Replaces: 3196537)			Immediately	$ 7.95
7	3192102		Trim, Extension		Appelez-nous	-
8	3191168		Cooktop (white)		Appelez-nous	-
8	3191169		Cooktop (almond)		Appelez-nous	-
9	WP9760411		Clip, Receptacle   (Replaces: 3195210)				$ 8.56
10	3191228		Panel, Control		Appelez-nous	-
11	3183956		Seal, Switch (4)				$ 48.77
12	WP3191472		Switch, Infinite (use W/ 8`` Surface (silver Shaft))   (Replaces: 3191472)				$ 175.98
12	WP3191471		Switch, Infinite (use W/ 6`` Surface (blue Shaft))   (Replaces: 3191471)				$ 198.96
13	WP4456181		Light, Indicator   (Replaces: 3191491)				$ 111.25
14	WP3195917		Clip, Element   (Replaces: 3195917)			Immediately	$ 8.12
15	3400855		Screw, 8-32 X 1/4		Appelez-nous	-
17	WP4448444		Grommet   (Replaces: 4448444)				$ 7.85
19	W10196405RW		Drip Bowl (8`` (2))   (Replaces: 3195209)			Immediately	$ 21.82
19	WPW10196406		Drip Bowl (6`` (2))   (Replaces: 3195208)			Immediately	$ 13.39
20	WPW10345407		Element, Coil (6`` Lf-rr)   (Replaces: 8053265)			Immediately	$ 165.42
20	WP9761346		Element, Coil (8`` Rf-lr)   (Replaces: 8053267)			Immediately	$ 104.62
21	WP12990527		Screw, 8-18 X 3/8   (Replaces: 3400843)			Immediately	$ 8.76
22	WP3196231		Knob, Control (4)   (Replaces: 3196231)			Immediately	$ 22.00
23	3192330		Bracket, Switch Mounting		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
