SELECT A DIAGRAM

01 - Cooktop, Literature


02 - Control Panel

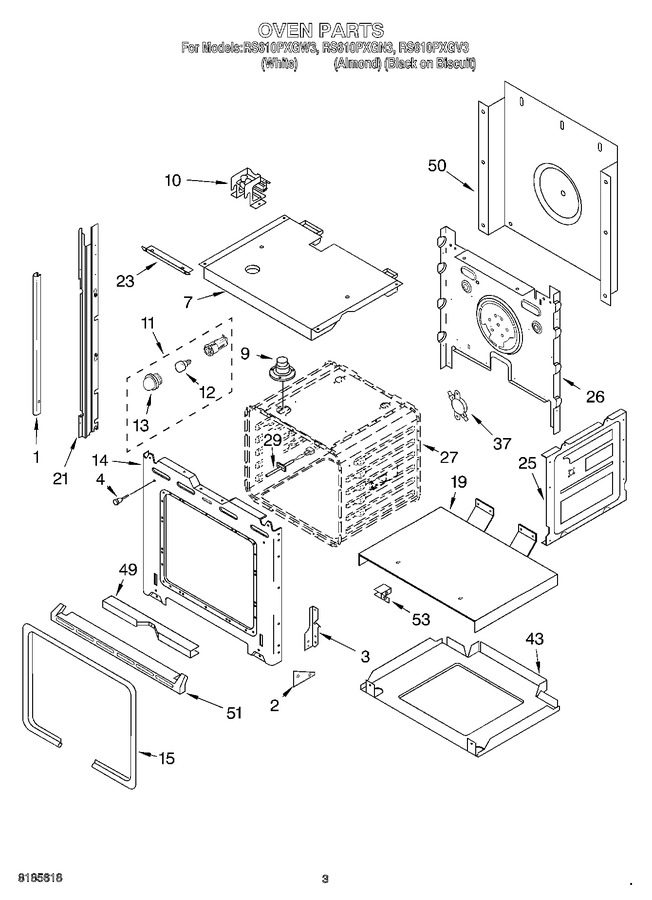

03 - Oven


04 - Oven Door


05 - Internal Oven


06 - Top Venting, Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4450847		Trim, Side (lh Black)		Appelez-nous	-
1	4450844		Trim, Side (rh Black)		Appelez-nous	-
1	WP8281236		Trim, Side (screw)   (Replaces: 4449747)				$ 8.16
2	WP4455509		Bracket, Support   (Replaces: 4455509)				$ 94.01
3	4455723		Reciever, Hinge (right Hand)				$ 37.24
3	4455722		Reciever, Hinge (left Hand)				$ 37.47
4	4448520		Bumper, Door				$ 22.25
7	4455286		Top, Chassis		Appelez-nous	-
7	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
9	W11233072		Screw   (Replaces: 3196176)			Immediately	$ 14.72
9	W10861715		Tube, Vent   (Replaces: 4452159)				$ 122.46
10	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
10	4451664		Fan & Bracket Assy		Appelez-nous	-
11	4452368		Oven Light Assy		Appelez-nous	-
12	WP4173175		Bulb, Light   (Replaces: 4452166)			Immediately	$ 53.62
13	4452165		Lens, Light		Appelez-nous	-
14	WP4450118		Nut   (Replaces: 4450118)				$ 8.78
14	WP4449040		Screw   (Replaces: 4449040)				$ 6.78
14	4451740		Frame, Front		Appelez-nous	-
15	4450493		Gasket, Door		Appelez-nous	-
19	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
19	4451478		Support, Insulation				$ 54.10
21	WP4449154		Rail, Side (screw)   (Replaces: 4449154)				$ 8.16
21	814372		Rail, Side (left)   (Replaces: 4450580)				$ 126.74
21	814371		Rail, Side (right)   (Replaces: 4450579)				$ 127.79
21	WP4448444		Rail, Side (grommet)   (Replaces: 4448444)				$ 7.85
23	WP4449154		Screw   (Replaces: 4449154)				$ 8.16
23	4450051		Deflector		Appelez-nous	-
25	4454691		Side, Chassis (r.h. & L.h.)		Appelez-nous	-
25	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
26	4452234		Back, Chassis		Appelez-nous	-
26	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
29	WP4449154		Screw   (Replaces: 4449154)				$ 8.16
29	WPW10131825		Sensor   (Replaces: 4455636)			Immediately	$ 95.83
37	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
37	WP4451354		Fuse - Thermal   (Replaces: 4451354)				$ 45.50
43	4455530		Base, Chassis		Appelez-nous	-
49	WP4448933		Retainer   (Replaces: 4448933)				$ 9.30
49	WP4449154		Screw   (Replaces: 4449154)				$ 8.16
50	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
50	WP4451747		Cover-back   (Replaces: 4451747)				$ 150.07
51	4448477		Trim, Bottom				$ 71.44
53	4450365		Insulation, Back				$ 70.95
53	4449845		Bracket-support		Appelez-nous	-
53	WP4449154		Screw   (Replaces: 4449154)				$ 8.16
53	W11684730		Insulation, Wrap   (Replaces: 4449316)				$ 124.85

    View Diagram in Separate Window       Print Part List
