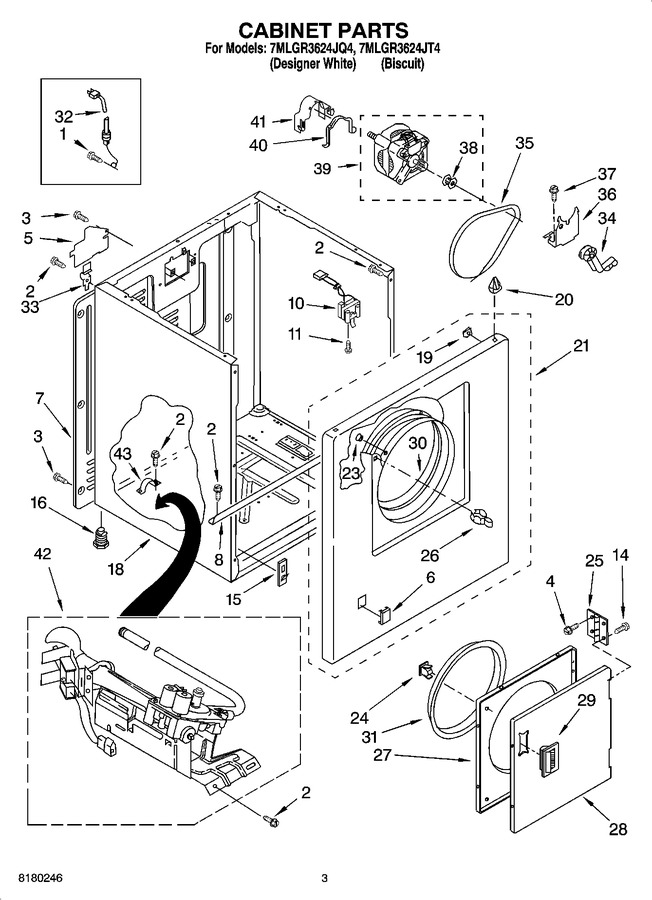

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10850756		Screw, 10-32 X 5/8   (Replaces: 697776)				$ 8.20
2	WP681414		Screw,10-16 X 1/2   (Replaces: 343641)			Immediately	$ 8.47
3	WP693995		Screw, Hex Head   (Replaces: 693995)			Immediately	$ 7.55
4	WP488627		Screw, 8-18 X 1/2   (Replaces: 342055)				$ 8.11
5	W11539855		Cover, Block   (Replaces: 3396795)			Immediately	$ 629.75
6	3394978		Plug, Front Panel (biscuit)		Appelez-nous	-
6	3394975		Plug, Front Panel (white)				$ 5.70
7	3396807		Panel, Rear		Appelez-nous	-
8	8541400		Bracket, Cabinet		Appelez-nous	-
10	WP3406102		Door Switch Assembly   (Replaces: 3406102)				$ 41.66
11	WP3395530		Screw, 6-20 X 7/8   (Replaces: 697773)				$ 8.57
14	WP694091		Screw, 8-18 X 3/8   (Replaces: 694091)				$ 7.55
15	W10854425		Clip, Front Panel   (Replaces: 3394083)			Immediately	$ 16.34
16	49621		Foot, Dryer (4)   (Replaces: 3392100)			Immediately	$ 8.55
18	8533643		Cabinet (includes Illus. 8) (white)   (Replaces: 8530603)				$ 419.22
18	8530606		Cabinet (includes Illus. 8) (biscuit)		Appelez-nous	-
19	WP98234		Clip, Ground (2)   (Replaces: 98234)			Immediately	$ 11.96
20	WP18776		Lock, Front Top (2)   (Replaces: 690363)			Immediately	$ 13.31
21	3394895		Front Panel Assembly (white)		Appelez-nous	-
21	8537517		Front Panel Assembly (biscuit)		Appelez-nous	-
23	279220		Clip, Felt Pad   (Replaces: 685203)				$ 23.55
24	WP3389441		Catch, Door   (Replaces: 3389441)				$ 6.20
25	WP348023		Hinge & Pin Assembly (2)   (Replaces: 348023)				$ 9.32
26	279570		Strike, Door   (Replaces: 696144)			Immediately	$ 8.89
27	280077		Door, Rear   (Replaces: 695656)				$ 207.46
28	3978598		Door, Front (biscuit)		Appelez-nous	-
28	WP348205		Door, Front (white)   (Replaces: 348205)			Immediately	$ 154.76
29	WP686711		Handle, Door (white)   (Replaces: 686711)			Immediately	$ 8.35
29	3978592		Handle, Door (biscuit)				$ 71.07
30	279264		Seal & Bearing Assembly   (Replaces: 8066123)			Immediately	$ 74.52
31	W11613302		Seal, Door   (Replaces: 3390734)				$ 56.31
32	W11222083		Cord, Power   (Replaces: 344020)				$ 126.62
33	WP8066217		Hinge, Top (2)   (Replaces: 238088)				$ 8.21
34	WP691366		Idler & Pulley Assembly   (Replaces: 691366)			Immediately	$ 22.47
35	341241		Belt, Drive   (Replaces: 8066065)			Immediately	$ 18.15
36	WP348780		Base, Motor   (Replaces: 348780)			Immediately	$ 127.65
37	3400500		Bolt, 5/16-18 X 3/4			Immediately	$ 14.04
38	WP8066184		Pulley, 60 Hz.   (Replaces: 3394341)			Immediately	$ 51.02
39	279827		Motor, 60 Hz.   (Replaces: 8538262)			Immediately	$ 191.95
40	WP660658		Clamp, Motor   (Replaces: 660658)				$ 8.22
41	WP3404162		Clamp, Motor (w/shield)   (Replaces: 3404162)			Immediately	$ 8.21
42	W10823508		Burner Assembly, 60 Hz. (refer To Pages 5 & 6 For Further Breakdown)   (Replaces: 8318272)				$ 541.24
43	4392900		Paint, Bulk (1 Qt.) (biscuit) (uncut)		Appelez-nous	-
43	4392901		Paint, Pressurized Spray (12oz.) (biscuit)		Appelez-nous	-
43	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
43	WP689790		Dry Rack   (Replaces: 689790)				$ 60.22
43	4392899		Paint, Touch-up (1/2oz.) (biscuit)			Immediately	$ 27.77
43	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 40.12
43	350938		Paint, Pressurized Spray (12 Oz.) (primer,grey)		Appelez-nous	-
43	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
43	341029		Clamp, Pipe		Appelez-nous	-
43	N/A		Accessory Parts		Appelez-nous	-
43	4392065		Kit, Dryer Repair   (Replaces: 279948)			Immediately	$ 53.85
43	346764		Kit, Hold-down (gas Dryer Mobile Home Installation)		Appelez-nous	-
43	W11224254		Kit, Dryer Vent Testing   (Replaces: 8522199)				$ 12.34
