SELECT A DIAGRAM

01 - Cabinet Back


02 - Cabinet Bottom


03 - Compressor Compartment


04 - Control Panel


05 - Divider Block


06 - Evap Area


07 - Page 11


08 - Page 12


09 - Page 14


10 - Page 3


11 - Page 7

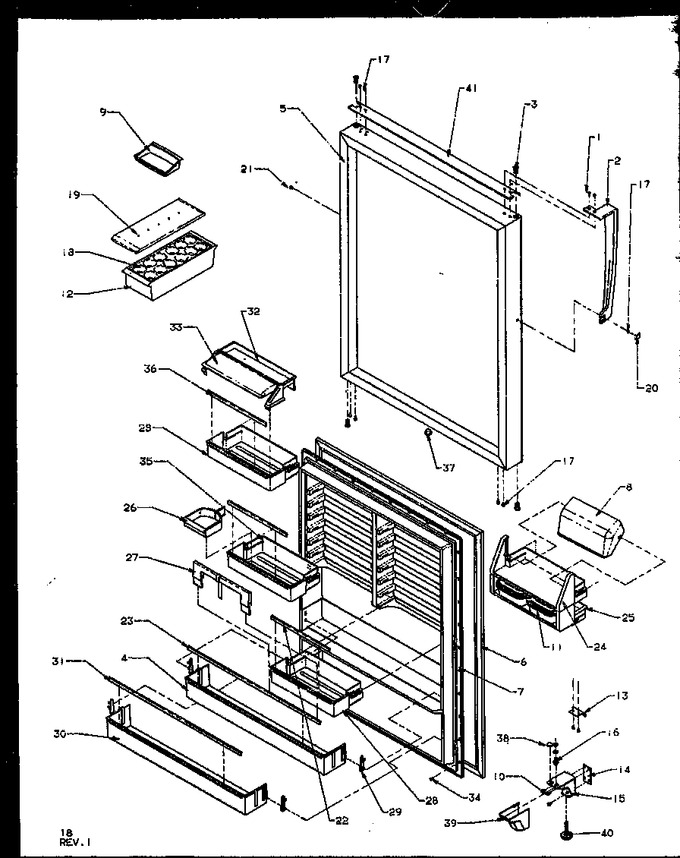

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10348409		Screw   (Replaces: M0222429)			Immediately	$ 8.20
2	10253514		Assy, Ref Hndl L		Appelez-nous	-
2	10253510		Handle Assy Ref W		Appelez-nous	-
2	10253522		Ref Handle Assy Bk		Appelez-nous	-
3	10393802		Bushing, Door (wht)		Appelez-nous	-
3	10393803		Bushing, Door (blk)		Appelez-nous	-
4	10419101		Retainer, Ref Door		Appelez-nous	-
5	10481904LQ		Assy Ref. Cfc11		Appelez-nous	-
5	10481904WQ		Assy Ref. Door Fm		Appelez-nous	-
5	10481904EQ		Assy Ref. Dr Fm		Appelez-nous	-
6	10456811		Gasket,ref Dr(black)		Appelez-nous	-
6	WP12550109Q		Gasket,ref Dr(white)   (Replaces: 10456801)			Immediately	$ 322.33
7	10461801		Liner, Refr Door (19)		Appelez-nous	-
8	10422605		Door, Dairy		Appelez-nous	-
9	10310901		Tray, Butter		Appelez-nous	-
10	WP67006715		Screw   (Replaces: M0233847)				$ 7.55
11	10185001		Container		Appelez-nous	-
12	10423120		Bin, Egg		Appelez-nous	-
13	W11708403		Stop-black Door   (Replaces: 10447103)			Immediately	$ 14.75
13	10447102		Stop, Door		Appelez-nous	-
14	10447902		Shim Hinge		Appelez-nous	-
14	10447901		Shim, Btm Hinge		Appelez-nous	-
15	10575306		Assy,hinge B-btm		Appelez-nous	-
15	10575304		Hinge, Btm (white)		Appelez-nous	-
15	10575305		Hinge, Bottom (almond)		Appelez-nous	-
16	67007018		Pin, Hinge (btm)   (Replaces: 10200801)			Immediately	$ 8.62
17	WPW10348409		Mounting Screw   (Replaces: M0203944)			Immediately	$ 8.20
18	10436504		Tray, Egg		Appelez-nous	-
19	10436404		Lid, Utility				$ 60.85
20	10201810		Cover, Handle Screw-blk		Appelez-nous	-
20	10201806		Cover- Hndl Screw Almond		Appelez-nous	-
20	10201802		Cover-handle Screw W		Appelez-nous	-
20	10423120		Bin, Egg		Appelez-nous	-
21	WP12246608		Plug, Top Hinge Button (blk)   (Replaces: M0310731)			Immediately	$ 8.15
21	M0310730		Plug Button (almond)		Appelez-nous	-
21	WP67001130		Plug, Top Hinge Button (wht)   (Replaces: M0310729)			Immediately	$ 8.21
22	10183938		Trim, Door Shelf		Appelez-nous	-
23	10183952		Trim, Door Shelf		Appelez-nous	-
24	10182702		Shelf, Dairy		Appelez-nous	-
25	10182802		Shelf, Container Ser.		Appelez-nous	-
26	10441101		Hugger, Bottle (shelf Divider)		Appelez-nous	-
27	10468001		Retainer, Tall Pkg		Appelez-nous	-
28	10183006		Shelf, Ref Door		Appelez-nous	-
29	10202001		Clip, Retainer		Appelez-nous	-
30	10419201		Retainer, Ref Door		Appelez-nous	-
31	10183953		Trim, Door Shelf		Appelez-nous	-
32	10431101		Shelf, Snack Stop		Appelez-nous	-
33	10431007		Door, Snack Stop		Appelez-nous	-
34	M0219730		Screw				$ 7.65
35	10419901		Shelf, Refrig. Door (19)		Appelez-nous	-
36	10183950		Trim, Door Shelf		Appelez-nous	-
37	M0310338		Plug Button Almond		Appelez-nous	-
37	M0310308		Plug, Button (wht)		Appelez-nous	-
37	M0310336		Plug, Button (blk)		Appelez-nous	-
38	M0310330		Plug, Button White		Appelez-nous	-
38	M0310331		Plug, Button Almond		Appelez-nous	-
39	10462702		Cover, Hinge Lower (white)		Appelez-nous	-
39	10462704		Cover-l Hinge Lw		Appelez-nous	-
39	10462701		Cover, Hinge Lower (black)		Appelez-nous	-
40	W11177593		Brake, Foot   (Replaces: 10354001)				$ 12.18
41	Y10201504		Cap, Door (tq18)		Appelez-nous	-
41	10201505		Cap, Door (tx18-19)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
