Diagram # Part Number Description Series Availability Ships Price Add to Cart
12 10925611E Assy Frz Dr Fm Appelez-nous -
15 10925408E Assy Ref Dr Fm Appelez-nous -
21 10253525 Assy, Fz Handle Blk Appelez-nous -
22 M0219730 Screw Special Order $ 7.65

24 10253526 Assy, Ref Hndl-blk Appelez-nous -
25 WPW10348409 Screw, Mounting   (Replaces: M0211533) In-Stock Immediately $ 8.20

31 10201809 Cover, Handle Screw-blk Appelez-nous -
32 B0523593 Insulation, Batt Frz. Dr. Appelez-nous -
34 10201810 Cover, Handle Screw-blk Appelez-nous -
35 M0219730 Screw Special Order $ 7.65

41 WPW10348409 Screw, Mounting   (Replaces: M0211533) In-Stock Immediately $ 8.20

42 W11708403 Stop, Door (blk)   (Replaces: 10447109) In-Stock Immediately $ 14.75

44 WPW10348409 Screw, Mounting   (Replaces: M0211533) In-Stock Immediately $ 8.20

51 WPW10348409 Screw   (Replaces: M0221718) In-Stock Immediately $ 8.20

52 10202001 Clip, Retainer Appelez-nous -
54 WPW10348409 Screw   (Replaces: M0221718) In-Stock Immediately $ 8.20

61 10184305 Plug Nameplate Appelez-nous -
62 10456840 Gasket Frz (black) Appelez-nous -
63 10961002 Bushing, Door (blk) Appelez-nous -
66 10961002 Bushing, Door (blk) Appelez-nous -
71 10184401 Nameplate, Handle Appelez-nous -
72 10461101 Liner, Freezer Dr Appelez-nous -
81 10184501 Pad Nameplate Appelez-nous -
84 10419104 Retainer, Ref Door Appelez-nous -
85 W11708403 Stop, Door (blk)   (Replaces: 10447109) In-Stock Immediately $ 14.75

92 WP12246608 Plug, Top Hinge Button (blk)   (Replaces: M0310731) In-Stock Immediately $ 8.15

94 10183015 Shelf, Ref Door Appelez-nous -
101 10419204 Retainer, Ref Door Appelez-nous -
102 WPW10348409 Screw, Mounting   (Replaces: M0211533) In-Stock Immediately $ 8.20

104 12348101 Door- Dairy Appelez-nous -
111 10183015 Shelf, Ref Door Appelez-nous -
113 M0310336 Plug, Button (blk) Appelez-nous -
114 10419906 Shelf, Ref Door Appelez-nous -
121 10419906 Shelf, Ref Door Appelez-nous -
124 12348001 Shelf, Dairy Appelez-nous -
126 M0310336 Plug, Button (blk) Appelez-nous -
135 10456839 Gasket,ref Dr(black) Appelez-nous -
155 10461801 Liner, Refr Door (19) Appelez-nous -
195 WP12246608 Plug, Top Hinge Button (blk)   (Replaces: M0310731) In-Stock Immediately $ 8.15

215 10419204 Retainer, Ref Door Appelez-nous -
225 10202001 Clip, Retainer Appelez-nous -
253 12028602 Bushing, Door (blk) Appelez-nous -
263 10252903 Filter, Bushing Appelez-nous -
5003 10686404 Plug, Button(black) Appelez-nous -
8006 WPW10348409 Screw, Mounting   (Replaces: M0211533) In-Stock Immediately $ 8.20


    View Diagram in Separate Window     Print Icon   Print Part List

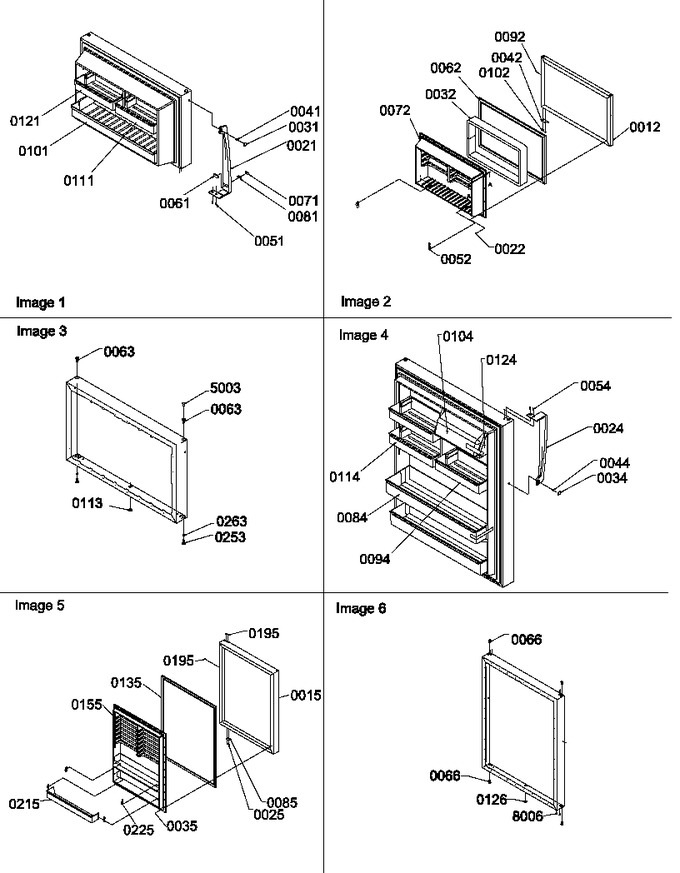

Diagram for TX19V2E (BOM: P1315802W E)
