SELECT A DIAGRAM

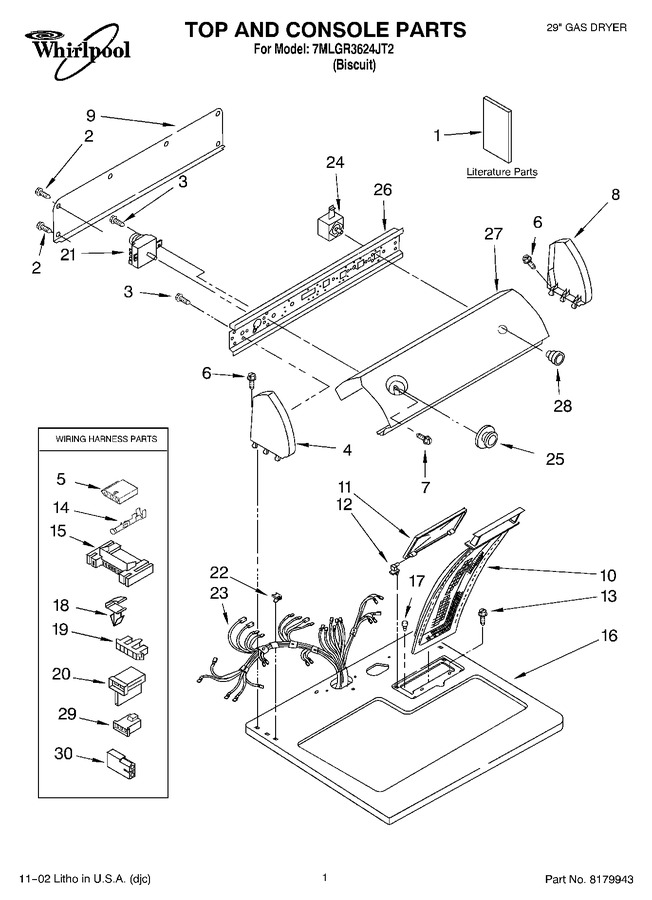

01 - Top And Console, Literature


02 - Cabinet


03 - 8318272 Burner


04 - Bulkhead


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LIT8528116		Literature Parts (use & Care Guide)		Appelez-nous	-
1	LIT8533202		Literature Parts (wiring Diagram)		Appelez-nous	-
1	LIT3978910		Literature Parts (installation Instructions (spanish))		Appelez-nous	-
2	WP693995		Screw, Hex Head   (Replaces: 693995)			Immediately	$ 7.55
3	WPW10139210		Screw, 8-18 X 5/16   (Replaces: 3390646)				$ 8.03
4	8271368		Cap, End (l.h.)		Appelez-nous	-
5	3936144		Connector				$ 21.22
6	WP388326		Screw, Console   (Replaces: 388326)				$ 9.29
7	3400859		Screw, Grounding				$ 13.88
8	8271362		Cap, End (r.h.)		Appelez-nous	-
9	W10103406		Panel, Rear Console   (Replaces: 8274261)				$ 135.31
10	339392V		Screen, Lint   (Replaces: 339392)			Immediately	$ 41.91
11	8283380		Cover, Lint Screen		Appelez-nous	-
12	WPW10044480		Hinge, L.h.   (Replaces: 3978606)				$ 8.11
12	WPW10044470		Hinge, R.h.   (Replaces: 3978605)				$ 8.11
13	W11693756		Screw, 8-18 X 5/8   (Replaces: 688983)			Immediately	$ 14.76
14	WP94614		Terminal (female)   (Replaces: 94614)				$ 8.05
15	3395683		Connector (motor)			Immediately	$ 54.45
16	8271392		Top		Appelez-nous	-
17	297535		Bumper, Lint Lid		Appelez-nous	-
18	WP3394427		Clip, Harness   (Replaces: 3394427)				$ 8.18
19	3397269		Connector, Timer				$ 25.55
20	WP3403499		Connector, 2-position Gas Valve   (Replaces: 3403499)				$ 6.02
21	WP3976575		Timer, 60 Hz.   (Replaces: 3976575)			Immediately	$ 378.72
22	WP357213		Nut, Push-in (2)   (Replaces: 357213)				$ 7.76
23	8299875		Harness, Wiring		Appelez-nous	-
24	WP3977456		Switch, Push-to-start   (Replaces: 3977456)			Immediately	$ 26.66
25	WP3957755		Timer Knob Assembly   (Replaces: 8271404)				$ 2.61
26	8271418		Bracket, Control				$ 57.15
27	8528133		Panel, Control		Appelez-nous	-
28	8271349		Knob, Push-to-start		Appelez-nous	-
29	WP3403498		Connector, 3-position (gas Valve)   (Replaces: 3403498)				$ 7.30
30	4392900		Paint, Bulk (1 Qt.) (biscuit) (uncut)		Appelez-nous	-
30	4392065		Kit, Dryer Repair   (Replaces: 279948)			Immediately	$ 53.85
30	346764		Kit, Hold-down (gas Dryer Mobile Home Installation)		Appelez-nous	-
30	WP689790		Dry Rack   (Replaces: 689790)				$ 60.22
30	4392899		Biscuit			Immediately	$ 27.77
30	350938		Paint, Pressurized Spray (12 Oz.) (primer,grey)		Appelez-nous	-
30	4392901		Paint, Pressurized Spray (12oz.) (biscuit)		Appelez-nous	-
30	717252		Receptacle, 2 Way		Appelez-nous	-
	LIT677818		Dryer		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
