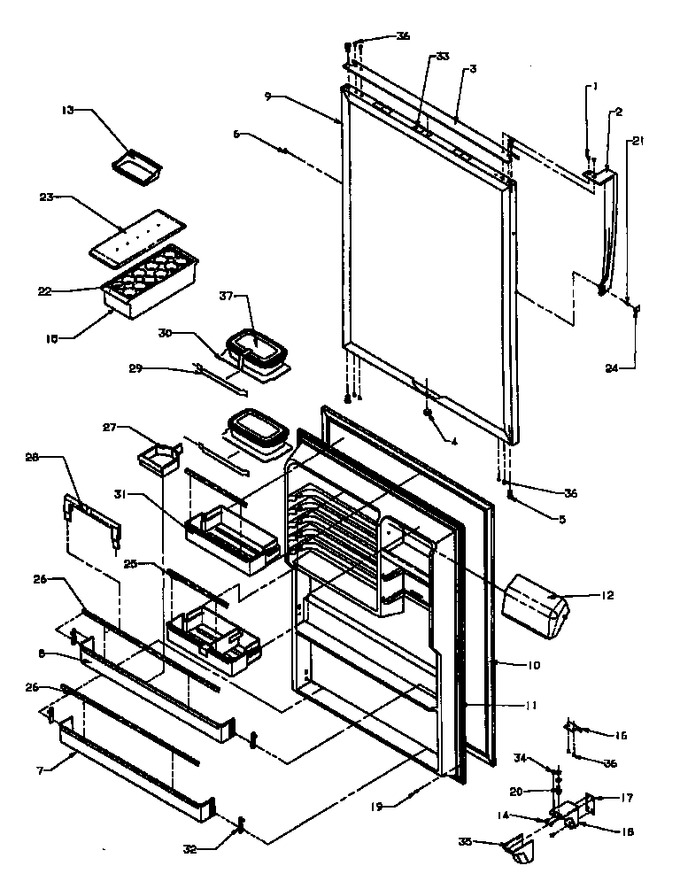

TX21A3W (BOM: P1181504W W) | Leon's : Appliance Model Lookup

Diagram #	Part Number	Description	Availability	Ships	Price
1	WPW10348409	Screw (Replaces: M0221718)		Immediately	$ 8.20
2	10253510	Handle Assy Ref W	Appelez-nous	-
3	10201507	Cap, Door	Appelez-nous	-
4	M0310308	Plug, Button (wht)	Appelez-nous	-
5	10393802	Bushing, Door (wht)	Appelez-nous	-
6	M0310730	Plug Button (almond)	Appelez-nous	-
6	WP67001130	Plug, Top Hinge Button (wht) (Replaces: M0310729)		Immediately	$ 5.98
7	10419001	Retainer, Door	Appelez-nous	-
8	10183108	Retainer, Ref Door (no Decor)	Appelez-nous	-
9	10481901WQ	Assy, Ref Door (white) Btm	Appelez-nous	-
10	WP12550111Q	Gasket,ref Dr(white) (Replaces: 10456803)			$ 178.50
11	10440801	Liner, Refrig Door	Appelez-nous	-
12	10423409	Door, Dairy	Appelez-nous	-
13	10310901	Tray, Butter	Appelez-nous	-
14	WP67006715	Screw (Replaces: M0233847)			$ 7.55
15	10423120	Bin, Egg	Appelez-nous	-
16	10447102	Stop, Door	Appelez-nous	-
17	10447901	Shim, Btm Hinge	Appelez-nous	-
17	10447902	Shim Hinge	Appelez-nous	-
18	10433208	Hinge, Bottom White	Appelez-nous	-
19	M0219730	Screw			$ 7.65
20	67007018	Pin, Hinge (btm) (Replaces: 10200801)		Immediately	$ 8.62
21	WPW10348409	Mounting Screw (Replaces: M0203944)		Immediately	$ 8.20
22	10436504	Tray, Egg	Appelez-nous	-
23	10436404	Lid, Utility			$ 60.85
24	10201802	Cover-handle Screw W	Appelez-nous	-
25	10183939	Trim, Door Shelf	Appelez-nous	-
26	10183970	Trim, Door Shelf	Appelez-nous	-
27	10441101	Hugger, Bottle (shelf Divider)	Appelez-nous	-
28	10468001	Retainer, Tall Pkg	Appelez-nous	-
29	10425301	Retainer, Package	Appelez-nous	-
30	10425101	Shelf, Service	Appelez-nous	-
31	10416901	Shelf, Ref Door	Appelez-nous	-
32	10202001	Clip, Retainer	Appelez-nous	-
33	M0275163	Tape Per Roll	Appelez-nous	-
34	M0310330	Plug, Button White	Appelez-nous	-
35	10462802	Cover, Hinge Lower (white)	Appelez-nous	-
36	WPW10348409	Screw, Mounting (Replaces: M0211533)		Immediately	$ 8.20
37	D7806405	Container Sec. Ser.	Appelez-nous	-
