SELECT A DIAGRAM

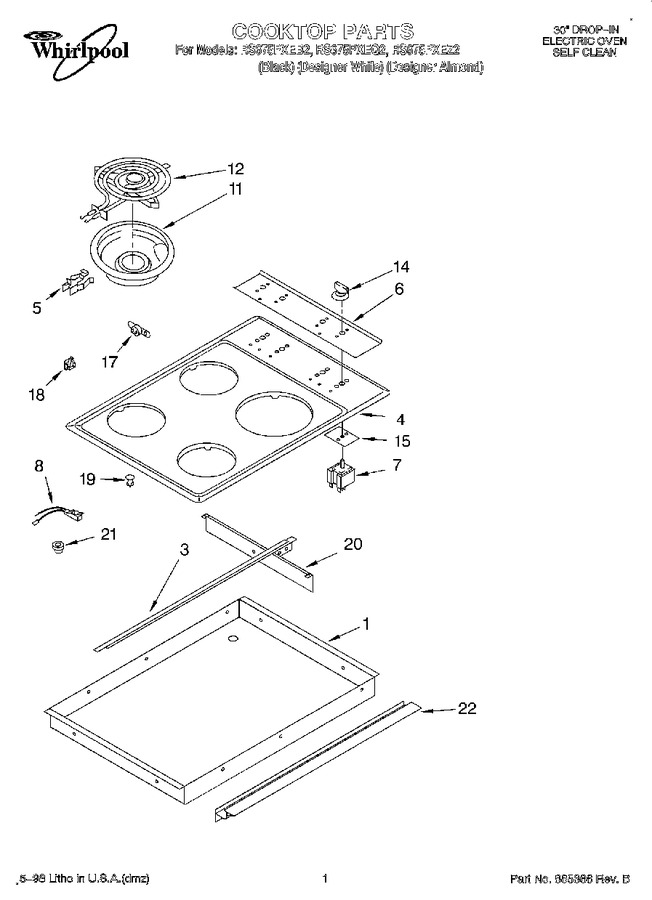

01 - Cooktop


02 - Oven


03 - Oven Door


04 - Internal Oven


05 - Control Panel, Literature


06 - Top Venting, Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4450883		Burner Box		Appelez-nous	-
3	4159456		Screw (6)		Appelez-nous	-
3	4454836		Bracket, Mounting		Appelez-nous	-
4	3148754		Cooktop (white)		Appelez-nous	-
4	3148755		Cooktop (almond)		Appelez-nous	-
4	3183618		Cooktop (black)		Appelez-nous	-
5	330031		Clip, Mtg. (4)   (Replaces: 312606)			Immediately	$ 17.93
6	4450908		Panel, Control (black)		Appelez-nous	-
6	4449025		Panel, Control (white)		Appelez-nous	-
6	4449008		Panel, Control (almond)		Appelez-nous	-
7	4454532		Switch, Infinite (use W/6`` Surface Unit)		Appelez-nous	-
7	4454534		Switch, Infinite (use W/8`` Surface Unit)		Appelez-nous	-
8	3187778		Light, Indicator		Appelez-nous	-
11	WPW10196406		Pan, Surface (6`` Pan)   (Replaces: 3150246)			Immediately	$ 12.05
11	W10196405RW		Pan, Surface (8`` Pan)   (Replaces: 3150247)			Immediately	$ 19.64
12	WP660532		Unit, Surface (2) 6``   (Replaces: 660532)			Immediately	$ 45.10
12	WP660533		Unit, Surface (2) 8``   (Replaces: 660533)			Immediately	$ 40.21
14	3183119		Knob, Control (white)		Appelez-nous	-
14	3183120		Knob, Control (black)		Appelez-nous	-
14	3183114		Knob, Control (almond)		Appelez-nous	-
15	3183956		Seal, Switch Shaft (4)				$ 43.89
17	WP3188286		Thermostat   (Replaces: 3188286)				$ 69.44
17	313806		Screw (2)		Appelez-nous	-
18	814103		Clip, Retainer (4)   (Replaces: 3148790)				$ 9.47
19	313602		Light Lens		Appelez-nous	-
20	4454837		Shield, Heat		Appelez-nous	-
21	4159035		Bushing		Appelez-nous	-
22	4451005		Trim, Extension (black)		Appelez-nous	-
22	4451003		Trim, Extension (white)		Appelez-nous	-
22	4451004		Trim, Extension (almond)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
