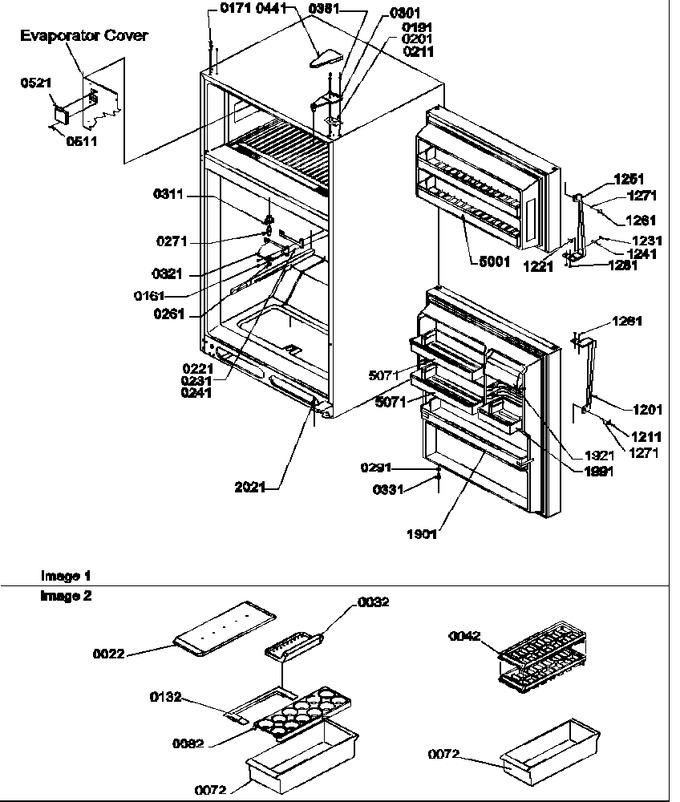

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 22 | 10436404 | Lid, Utility |
|
$ 60.85 | |||||
| 32 | 10310901 | Tray, Butter |
|
- | |||||
| 42 | WP841180A | Ice Tray (Replaces: D7725402) |
|
Immediately | $ 47.84 | ||||
| 72 | 10423129 | Bin-utility |
|
- | |||||
| 82 | 10436506 | Tray, Egg |
|
$ 8.28 | |||||
| 132 | 12106902 | Retainer, Tall Pkg |
|
- | |||||
| 161 | W11573362 | Screw, T. F. (Replaces: M0226233) |
|
$ 14.72 | |||||
| 171 | M0310716 | Plug |
|
- | |||||
| 191 | 10448501 | Shim, Top Hinge |
|
- | |||||
| 201 | 10448502 | Shim, Top Hinge |
|
- | |||||
| 211 | 10448503 | Shim, Top Hinge |
|
- | |||||
| 221 | 10562201 | Shim, Center Hinge |
|
- | |||||
| 231 | 10562202 | Shim, Center Hinge |
|
- | |||||
| 241 | 10562203 | Shim, Center Hinge |
|
- | |||||
| 261 | WPM0274057 | Shim, Non Metal (wht) (Replaces: M0274057) |
|
Immediately | $ 8.40 | ||||
| 271 | 10351002 | Pin, Hinge (ctr) |
|
- | |||||
| 291 | M0274058 | Shim, Non Metal (wht) |
|
$ 5.83 | |||||
| 301 | 5303918507 | Assy, Top Hinge (Replaces: 12077303) |
|
$ 956.29 | |||||
| 311 | 12028501 | Closure, Door (wht) |
|
$ 6.67 | |||||
| 321 | 10433412 | Hinge-ctr Chrome |
|
- | |||||
| 331 | 67007018 | Pin, Hinge (btm) (Replaces: 10200801) |
|
Immediately | $ 8.62 | ||||
| 381 | R9800670 | Screw, Tf (Replaces: M0238731) |
|
$ 10.58 | |||||
| 441 | 10444706 | Cover, Hinge (almond) |
|
- | |||||
| 511 | 67006425 | Screw, Sm (Replaces: M0238616) |
|
Immediately | $ 7.30 | ||||
| 521 | D7874403 | Cover-fl Tb/plug |
|
- | |||||
| 1201 | 10253523 | Assy, Ref Hndl L |
|
- | |||||
| 1211 | 10201812 | Cover- Hndl Screw Almond |
|
- | |||||
| 1221 | 10184306 | Plug-l Nameplate |
|
- | |||||
| 1231 | 10184401 | Nameplate, Handle |
|
- | |||||
| 1241 | 10184501 | Pad Nameplate |
|
- | |||||
| 1251 | 10253524 | Assy, Frz Hndl L |
|
- | |||||
| 1261 | 10201811 | Cover- Hndl Screw Almond |
|
- | |||||
| 1271 | WPW10348409 | Screw, Mounting (Replaces: M0211533) |
|
Immediately | $ 8.20 | ||||
| 1281 | WPW10348409 | Screw (Replaces: M0221718) |
|
Immediately | $ 8.20 | ||||
| 1901 | 10183114 | Retainer, Ref Door |
|
- | |||||
| 1921 | 10423416 | Door,dairy |
|
- | |||||
| 1991 | 10502906 | Bucket, Ref Door |
|
- | |||||
| 5001 | 10419007 | Retainer, Ref Door |
|
- | |||||
| 5071 | 10416906 | Use 10416911 |
|
- |
