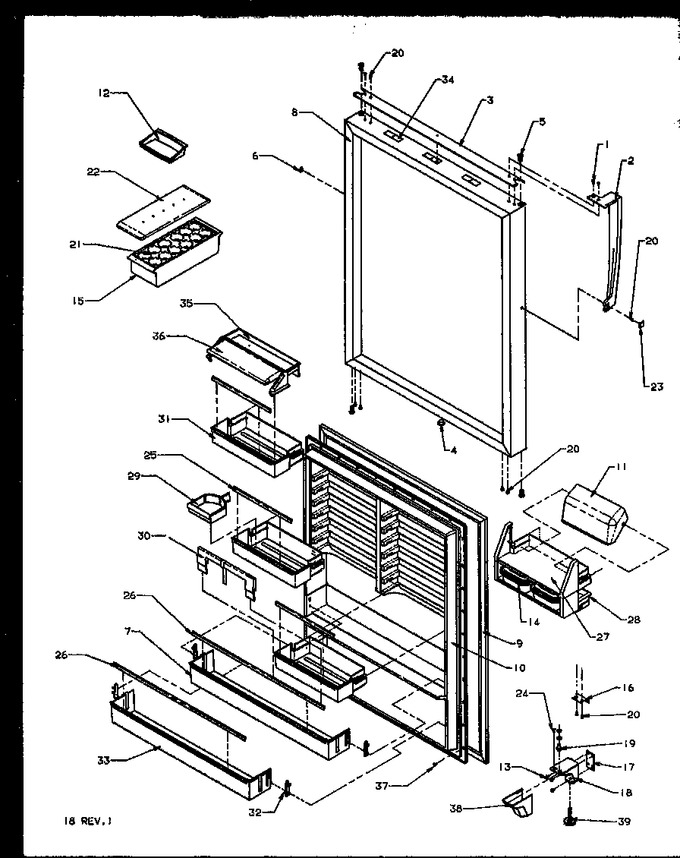

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10348409		Screw   (Replaces: M0222429)			Immediately	$ 8.20
2	10253522		Ref Handle Assy Bk		Appelez-nous	-
2	10253514		Assy, Ref Hndl L		Appelez-nous	-
2	10253510		Handle Assy Ref W		Appelez-nous	-
3	10201506		Cap, Door		Appelez-nous	-
3	10201507		Cap, Door		Appelez-nous	-
4	M0310308		Plug, Button (wht)		Appelez-nous	-
4	M0310336		Plug, Button (blk)		Appelez-nous	-
4	M0310338		Plug Button Almond		Appelez-nous	-
5	10393803		Bushing, Door (blk)		Appelez-nous	-
5	10393802		Bushing, Door (wht)		Appelez-nous	-
6	M0310714		Plug		Appelez-nous	-
6	WP67001130		Plug, Button (wht)   (Replaces: M0310701)			Immediately	$ 5.98
6	WP12246608		Plug, Button (blk)   (Replaces: M0310728)			Immediately	$ 8.15
7	10183108		Retainer, Ref Door (no Decor)		Appelez-nous	-
8	10481902EQ		Refrig Door Foam Assy E		Appelez-nous	-
8	10481902LQ		Assy Dr Ref.		Appelez-nous	-
8	10481902WQ		Assy Ref Door Fm		Appelez-nous	-
9	10456813		Gasket,ref Dr(black)		Appelez-nous	-
9	WP12550111Q		Gasket,ref Dr(white)   (Replaces: 10456803)				$ 178.50
10	10444601		Liner, Refrig. Door		Appelez-nous	-
11	10422605		Door, Dairy		Appelez-nous	-
12	10310901		Tray, Butter		Appelez-nous	-
13	WP67006715		Screw   (Replaces: M0233847)				$ 7.55
14	10185001		Container		Appelez-nous	-
15	10423120		Bin, Egg		Appelez-nous	-
16	W11708403		Stop-black Door   (Replaces: 10447103)			Immediately	$ 14.75
16	10447102		Stop, Door		Appelez-nous	-
17	10447902		Shim Hinge		Appelez-nous	-
17	10447901		Shim, Btm Hinge		Appelez-nous	-
18	10575303		Assy,hinge B-btm		Appelez-nous	-
18	10575301		Hinge, Btm (white)		Appelez-nous	-
18	10575302		Hinge, Bottom (almond)		Appelez-nous	-
19	67007018		Pin, Hinge (btm)   (Replaces: 10200801)			Immediately	$ 8.62
20	WPW10348409		Mounting Screw   (Replaces: M0203944)			Immediately	$ 8.20
21	10436504		Tray, Egg		Appelez-nous	-
22	10436404		Lid, Utility				$ 60.85
23	10201810		Cover, Handle Screw-blk		Appelez-nous	-
23	10201806		Cover- Hndl Screw Almond		Appelez-nous	-
23	10201802		Cover-handle Screw W		Appelez-nous	-
24	M0310330		Plug, Button White		Appelez-nous	-
24	M0310331		Plug, Button Almond		Appelez-nous	-
25	10183938		Trim, Door Shelf		Appelez-nous	-
26	10183970		Trim, Door Shelf		Appelez-nous	-
27	10182702		Shelf, Dairy		Appelez-nous	-
28	10182802		Shelf, Container Ser.		Appelez-nous	-
29	10441101		Hugger, Bottle (shelf Divider)		Appelez-nous	-
30	10468001		Retainer, Tall Pkg		Appelez-nous	-
31	10183006		Shelf, Ref Door		Appelez-nous	-
32	10202001		Clip, Retainer		Appelez-nous	-
33	10419001		Retainer, Door		Appelez-nous	-
34	M0275163		Tape Per Roll		Appelez-nous	-
35	10431101		Shelf, Snack Stop		Appelez-nous	-
36	10431007		Door, Snack Stop		Appelez-nous	-
37	M0219730		Screw				$ 7.65
38	10462704		Cover-l Hinge Lw		Appelez-nous	-
38	10462702		Cover, Hinge Lower (white)		Appelez-nous	-
38	10462701		Cover, Hinge Lower (black)		Appelez-nous	-
39	W11177593		Brake, Foot   (Replaces: 10354001)				$ 12.18
