01 - Cooktop Parts
02 - Control Panel Parts

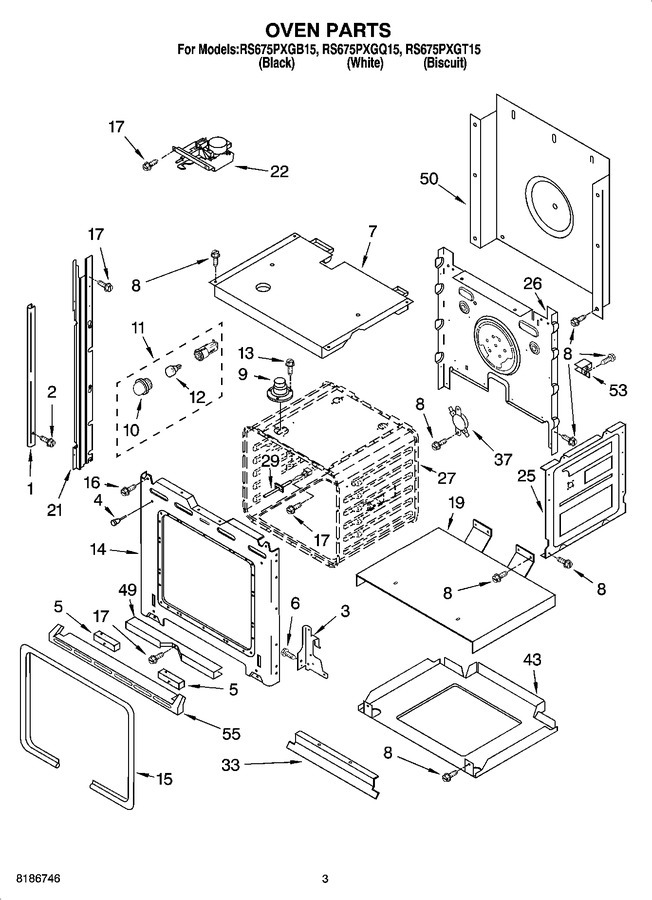

03 - Oven Parts
04 - Oven Door Parts
05 - Internal Oven Parts
06 - Top Venting Parts, Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4450847 | Trim, Side (left Hand) (black) |
|
- | |||||
| 1 | 4450845 | Trim, Side (right Hand) (white) |
|
- | |||||
| 1 | 4452120 | Trim, Side (right Hand) (biscuit) |
|
- | |||||
| 1 | 4450844 | Trim, Side (right Hand) (black) |
|
- | |||||
| 1 | 4450848 | Trim, Side (left Hand) (white) |
|
- | |||||
| 1 | 4452121 | (trim, Side (left Hand) (biscuit) |
|
- | |||||
| 2 | WP8281236 | Screw (Replaces: 8281236) |
|
$ 8.16 | |||||
| 3 | WP4455605 | Hinge Receiver (left) (Replaces: 4455605) |
|
Immediately | $ 127.70 | ||||
| 3 | WP4455606 | Hinge Receiver (right) (Replaces: 4455606) |
|
Immediately | $ 131.74 | ||||
| 4 | 4448520 | Bumper, Door |
|
$ 22.25 | |||||
| 5 | 4452260 | Spacer, Foam |
|
- | |||||
| 6 | WP4449743 | Screw (Replaces: 4449743) |
|
$ 7.55 | |||||
| 7 | 8303099 | Top Chassis |
|
$ 70.97 | |||||
| 8 | WP4449809 | Screw (Replaces: 4449809) |
|
Immediately | $ 7.55 | ||||
| 9 | W10861715 | Tube, Vent (Replaces: 4452158) |
|
$ 122.46 | |||||
| 10 | W10067870 | Lens, Light |
|
$ 65.50 | |||||
| 11 | WPW10734065 | Oven Light Assy (Replaces: W10009930) |
|
$ 101.46 | |||||
| 12 | WP4173175 | Bulb, Light (Replaces: 4452166) |
|
Immediately | $ 53.62 | ||||
| 13 | W11233072 | Screw (Replaces: 3196176) |
|
Immediately | $ 14.72 | ||||
| 14 | WPW10115831 | Frame, Front (Replaces: 9760756) |
|
$ 351.89 | |||||
| 15 | W11675844 | Gasket, Door (Replaces: 4455382) |
|
Immediately | $ 74.56 | ||||
| 16 | WP4449040 | Screw (Replaces: 4449040) |
|
$ 6.78 | |||||
| 17 | WP4449154 | Screw (Replaces: 4449154) |
|
$ 8.16 | |||||
| 19 | 4451478 | Support, Insulation |
|
$ 54.10 | |||||
| 21 | 814372 | Rail, Side (left Side) (Replaces: 4450580) |
|
$ 126.74 | |||||
| 21 | 814371 | Rail, Side (right Side) (Replaces: 4450579) |
|
$ 127.79 | |||||
| 22 | WP9760889 | Latch, Motorized (Replaces: 9760888) |
|
Immediately | $ 345.08 | ||||
| 25 | W10782197 | Side, Chassis (r.h. & L.h.) (Replaces: 4455641) |
|
$ 150.69 | |||||
| 26 | 4452234 | Back, Chassis |
|
- | |||||
| 29 | WPW10131825 | Sensor (Replaces: 4455636) |
|
Immediately | $ 95.83 | ||||
| 33 | 4457117 | Deflector, Vent |
|
- | |||||
| 37 | WP9759243 | Thermostat (tod) (temp.) Spst (Replaces: 9759243) |
|
Immediately | $ 55.44 | ||||
| 43 | 9759713 | Base, Chassis |
|
$ 100.19 | |||||
| 49 | WP4448933 | Retainer, Gasket (Replaces: 4448933) |
|
$ 9.30 | |||||
| 50 | WP4451747 | Cover-back (Replaces: 4451747) |
|
$ 150.07 | |||||
| 53 | 4449845 | Support, Bracket |
|
- | |||||
| 55 | 4450365 | Insulation, Back |
|
$ 70.95 | |||||
| 55 | 4448478 | Trim, Bottom (white) |
|
- | |||||
| 55 | 4452415 | Trim, Bottom (biscuit) |
|
- | |||||
| 55 | 4448477 | Trim, Bottom (black) |
|
$ 71.44 | |||||
| 55 | W11684730 | Insulation, Wrap (Replaces: 4449316) |
|
$ 124.85 |
