SELECT A DIAGRAM
New Model Search:

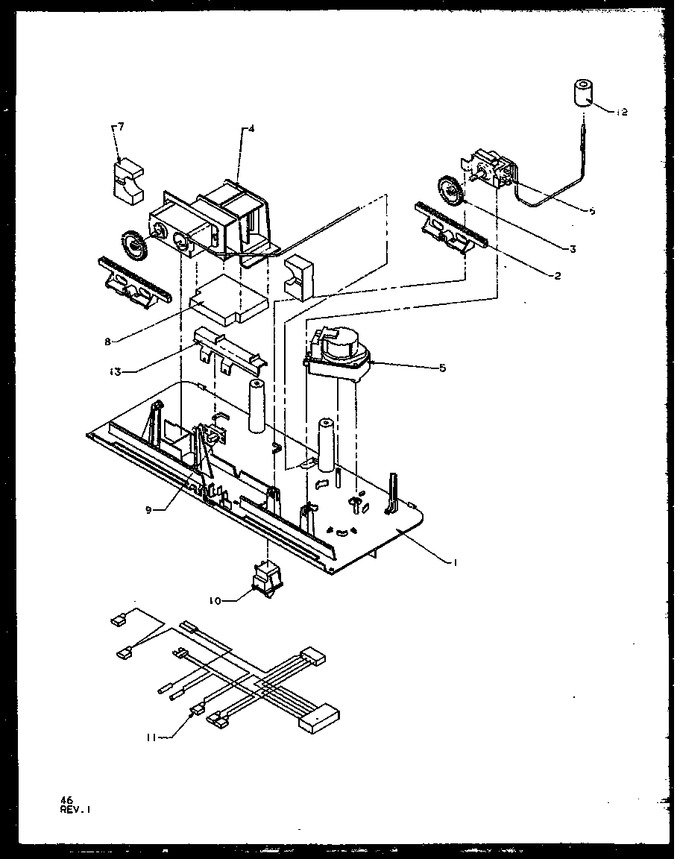

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 10439202 | Housing, Control |
|
- | |||||
| 2 | 10439601 | Rack, Control |
|
- | |||||
| 3 | 10442601 | Pinion, Control |
|
- | |||||
| 4 | R0161072 | Assy, Damper Control |
|
- | |||||
| 5 | R0168027 | Timer-defrost (Replaces: 10428601) |
|
Immediately | $ 159.86 | ||||
| 6 | R0161073 | Assy, Frz Control |
|
- | |||||
| 7 | 10442801 | Insert,damper |
|
- | |||||
| 8 | 10442901 | Insulation, Damper |
|
- | |||||
| 9 | M0350201 | Switch, St |
|
- | |||||
| 10 | W11384469 | Switch (Replaces: C3680304) |
|
Immediately | $ 39.09 | ||||
| 11 | 10573401 | Harness, Control |
|
- | |||||
| 12 | 10673601 | Insulation, Cap |
|
- | |||||
| 13 | 10565101 | Shield, Wire |
|
- |
