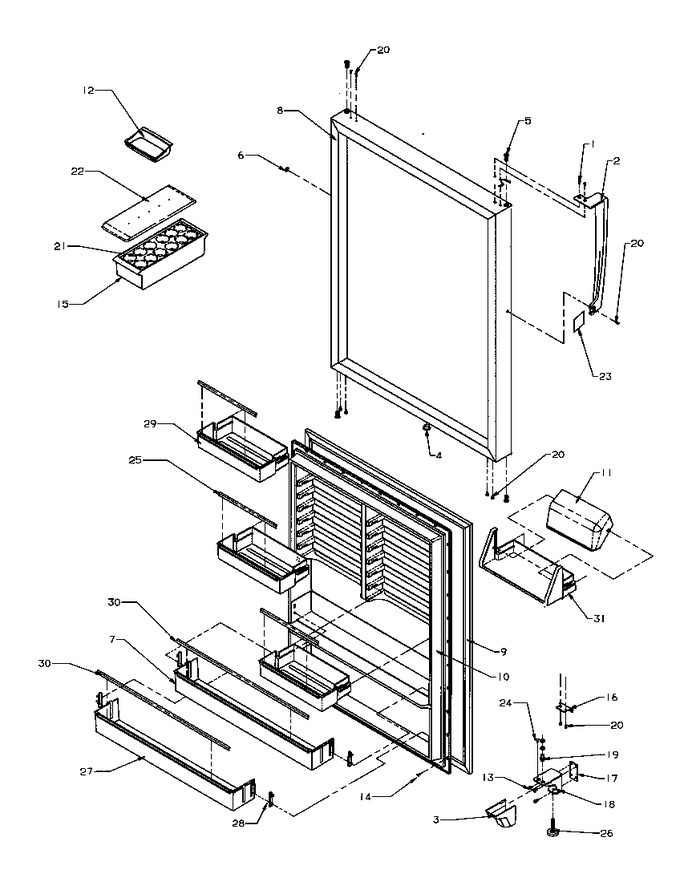

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10348409		Screw   (Replaces: M0221718)			Immediately	$ 8.20
2	10253508		Ref Handle Assy Bk		Appelez-nous	-
3	10462701		Cover, Hinge Lower (black)		Appelez-nous	-
4	M0310336		Plug, Button (blk)		Appelez-nous	-
5	10393803		Bushing, Door (blk)		Appelez-nous	-
6	WP12246608		Plug, Top Hinge Button (blk)   (Replaces: M0310731)			Immediately	$ 8.15
7	10183111		Retainer, Ref Door (no Decor)		Appelez-nous	-
8	10925407E		Refrig Door Foam Assy E		Appelez-nous	-
9	10456813		Gasket,ref Dr(black)		Appelez-nous	-
10	10444601		Liner, Refrig. Door		Appelez-nous	-
11	10422607		Door- Dairy		Appelez-nous	-
12	10310901		Tray, Butter		Appelez-nous	-
13	WP67006715		Screw   (Replaces: M0233847)				$ 7.55
14	M0219730		Screw				$ 7.65
15	10423128		Bin-utility		Appelez-nous	-
16	10447102		Stop, Door		Appelez-nous	-
17	10447901		Shim, Btm Hinge		Appelez-nous	-
17	10447902		Shim Hinge		Appelez-nous	-
18	10575307		Hinge, Bottom		Appelez-nous	-
19	67007018		Pin, Hinge (btm)   (Replaces: 10200801)			Immediately	$ 8.62
20	WPW10348409		Screw, Mounting   (Replaces: M0211533)			Immediately	$ 8.20
21	10436504		Tray, Egg		Appelez-nous	-
22	10436404		Lid, Utility				$ 60.85
23	10201810		Cover, Handle Screw-blk		Appelez-nous	-
25	10183929		Trim-door Shelf		Appelez-nous	-
26	W11177593		Brake, Foot   (Replaces: 10354001)				$ 12.18
27	10419005		Retainer, Door		Appelez-nous	-
28	10202001		Clip, Retainer		Appelez-nous	-
29	10183009		Shelf, Ref Door		Appelez-nous	-
30	10183971		Trim Door Shelf		Appelez-nous	-
31	10182702		Shelf, Dairy		Appelez-nous	-
