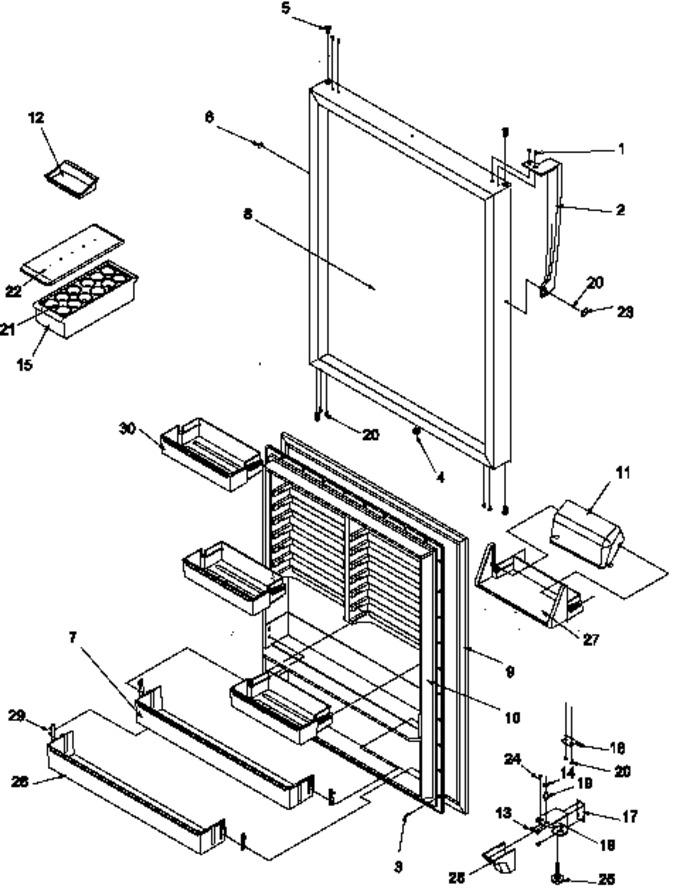

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10348409 | Screw (Replaces: M0221718) |
|
Immediately | $ 8.20 | ||||
| 2 | 10253520 | Assy, Blk Ref Hndl |
|
- | |||||
| 3 | M0219730 | Screw |
|
$ 7.65 | |||||
| 4 | M0310308 | Plug, Button (wht) |
|
- | |||||
| 5 | 10961002 | Bushing, Door (blk) |
|
- | |||||
| 6 | WP12246608 | Plug, Top Hinge Button (blk) (Replaces: M0310731) |
|
Immediately | $ 8.15 | ||||
| 7 | 10183113 | Retainer, Ref Door (no Decor) |
|
- | |||||
| 8 | 10925407E | Refrig Door Foam Assy E |
|
- | |||||
| 9 | 10456813 | Gasket,ref Dr(black) |
|
- | |||||
| 10 | 10444601 | Liner, Refrig. Door |
|
- | |||||
| 11 | 10422608 | Door Dairy |
|
- | |||||
| 12 | 10310901 | Tray, Butter |
|
- | |||||
| 13 | WP67006715 | Screw (Replaces: M0233847) |
|
$ 7.55 | |||||
| 14 | M0274058 | Shim, Non Metal (wht) |
|
$ 5.83 | |||||
| 15 | 10423128 | Bin-utility |
|
- | |||||
| 16 | 10447102 | Stop, Door |
|
- | |||||
| 17 | 10447903 | Shim, Btm Hinge |
|
- | |||||
| 18 | 10825302 | Assy,hinge B-btm |
|
- | |||||
| 19 | 67007018 | Pin, Hinge (btm) (Replaces: 10200801) |
|
Immediately | $ 8.62 | ||||
| 20 | WPW10348409 | Screw, Mounting (Replaces: M0211533) |
|
Immediately | $ 8.20 | ||||
| 21 | 10436505 | Tray, Egg |
|
- | |||||
| 22 | 10436404 | Lid, Utility |
|
$ 60.85 | |||||
| 23 | 10201810 | Cover, Handle Screw-blk |
|
- | |||||
| 24 | WP67001130 | Plug, Top Hinge Button (wht) (Replaces: M0310729) |
|
Immediately | $ 5.98 | ||||
| 25 | W11177593 | Brake, Foot (Replaces: 10354001) |
|
$ 12.18 | |||||
| 26 | 10419006 | Retainer, Door |
|
- | |||||
| 27 | 10182702 | Shelf, Dairy |
|
- | |||||
| 28 | 10462701 | Cover, Hinge Lower (black) |
|
- | |||||
| 29 | 10202001 | Clip, Retainer |
|
- | |||||
| 30 | 10183010 | Shelf, Ref Door |
|
- |
