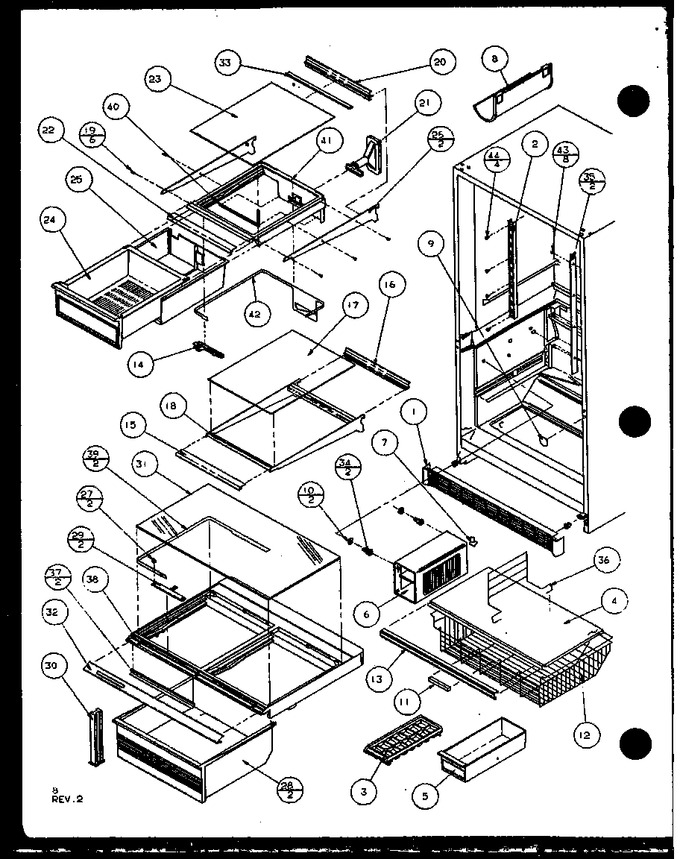

01 - Cabinet Bottom And Back


02 - Cabinet Interior


03 - Compressor Compartment


04 - Controls And Lamps


05 - Divider And Evap


06 - Fz Door


07 - Ref Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	D7520512		Grille-toe K		Appelez-nous	-
2	D7599002		Ladder, Center		Appelez-nous	-
3	WP841180A		Tray, Ice   (Replaces: D7725401)			Immediately	$ 45.56
4	D7681202		Shelf		Appelez-nous	-
5	D7620024		Bin, Ice		Appelez-nous	-
6	D7620110		Rack, Ice		Appelez-nous	-
7	B5720301		Clip		Appelez-nous	-
8	D7547614		Rack, Bottle		Appelez-nous	-
9	WP67001130		Plug, Button (wht)   (Replaces: M0310701)			Immediately	$ 5.98
10	M0270508		Washer		Appelez-nous	-
11	B0571806		Handle Basket		Appelez-nous	-
12	D7677402		Basket		Appelez-nous	-
13	C8832509		Trim Shelf		Appelez-nous	-
14	D7859401		Slide-mk Control		Appelez-nous	-
15	10049908		Trim, Shelf		Appelez-nous	-
16	C8913603		Trim, Shelf Rear		Appelez-nous	-
17	10036018		Glass Shelf		Appelez-nous	-
18	D7871002		Frame, Cantilever		Appelez-nous	-
19	M0230028		Screw, No.8-32 X 5/16 Pph (blk)		Appelez-nous	-
20	C8990403		Trim		Appelez-nous	-
21	D7859305		Grommet M.k.		Appelez-nous	-
22	10049913		Trim, Shelf		Appelez-nous	-
23	10036017		Glass M.k. Shelf		Appelez-nous	-
24	D7698329		Pan-meat		Appelez-nous	-
25	D7698113		Sleeve M.k.		Appelez-nous	-
26	D7862904		Blank Side Rail		Appelez-nous	-
26	D7862903		Blank Side Rail		Appelez-nous	-
27	10038401		Knob, Crisper Control		Appelez-nous	-
28	D7581033		Pan Crisper		Appelez-nous	-
29	YD7860605		Slide, Crisper		Appelez-nous	-
30	D7602202		Crisper Support Post		Appelez-nous	-
31	10036016		Glass Crisper Top Gg		Appelez-nous	-
32	D7616652		Trim, Crisper		Appelez-nous	-
33	10043101		Ext. Rear Glass		Appelez-nous	-
34	M0219559		Screw		Appelez-nous	-
35	D7599105		Ladder, Side		Appelez-nous	-
36	D7815401		Divider, Frz Shelf		Appelez-nous	-
37	D7718402		Seal Crisper		Appelez-nous	-
38	D7856502		Frame Crisper		Appelez-nous	-
39	D7859603		Band Crisper Control		Appelez-nous	-
40	A3263905		Gasket-per Ft		Appelez-nous	-
41	D7853302		Frame M.k. V		Appelez-nous	-
42	D7859503		Band M.k. Control		Appelez-nous	-
43	WP90767		Screw, Sm   (Replaces: M0211016)			Immediately	$ 7.82
44	M0230923		Screw		Appelez-nous	-
NI	R0179185		Glass Crisper Frame Assy		Appelez-nous	-
NI	10144001		Glass Shelf Assembly		Appelez-nous	-
