02 - Cooktop
03 - Control Panel
04 - Oven

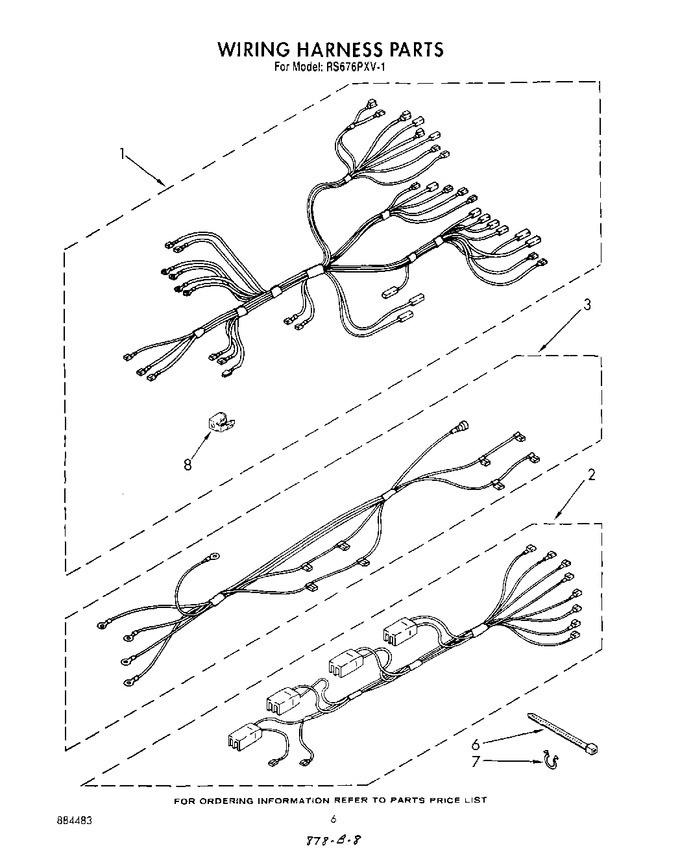

05 - Wiring Harness , Lit/optional
06 - Oven Door
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3148595 | Wiring Harness (main) |
|
- | |||||
| 2 | 3147825 | Harness, Wire (surface Elements) |
|
- | |||||
| 3 | 3147269 | Harness, Wire (infinite Switch) |
|
- | |||||
| 6 | WPW10339879 | Tie Cable (Replaces: 309330) |
|
