SELECT A DIAGRAM

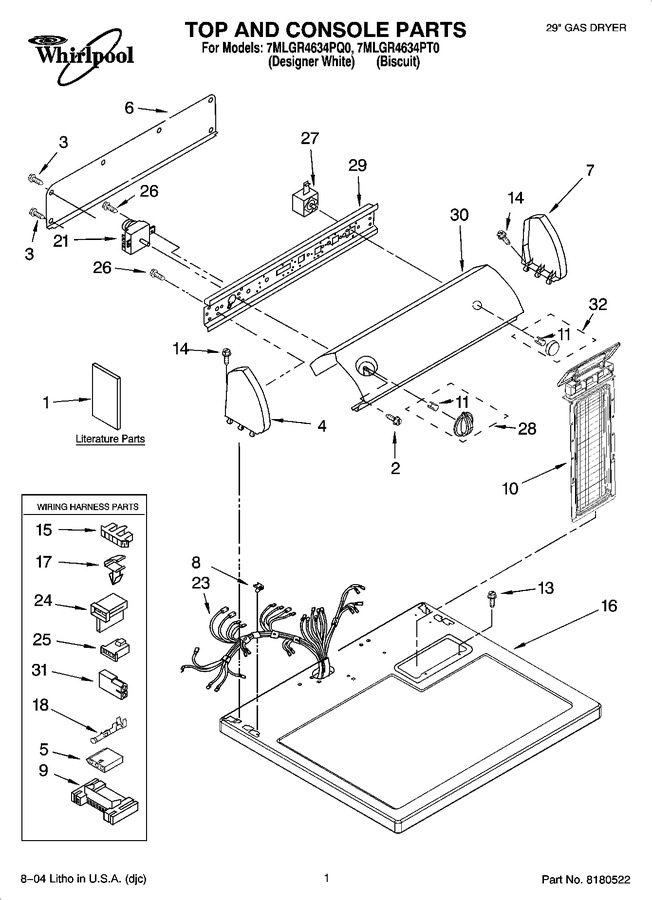

01 - Top And Console Parts


02 - Cabinet Parts


03 - 8318272 Burner Assembly


04 - Bulkhead Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8533203		Wiring Diagram		Appelez-nous	-
1	N/A		Do-it-yourself Repair Manuals		Appelez-nous	-
1	677818		Manual, Do-it- Yourself Repair (dryer)		Appelez-nous	-
1	8565897		Use And Care Guide		Appelez-nous	-
1	8565898		Sheet, Cycle Feature		Appelez-nous	-
1	8564241		Installation Instructions		Appelez-nous	-
2	3400859		Screw, Grounding				$ 13.22
3	WP693995		Screw, Hex Head   (Replaces: 693995)			Immediately	$ 7.19
4	8271368		Cap, End (l.h.) (biscuit)		Appelez-nous	-
4	8271365		Cap, End (l.h.) (white)		Appelez-nous	-
5	3936144		Connector				$ 20.21
6	W10103406		Panel, Rear Console   (Replaces: 8274261)				$ 128.87
7	8271359		Cap, End (r.h.) (white)		Appelez-nous	-
7	8271362		Cap, End (r.h.) (biscuit)		Appelez-nous	-
8	WP357213		Nut, Push-in (2)   (Replaces: 357213)				$ 7.39
9	3395683		Housing, Connector (motor)			Immediately	$ 51.86
10	WP8557862		Screen, Lint (biscuit)   (Replaces: 8557862)				$ 129.42
10	W10874409		Screen, Lint (white)   (Replaces: 8557861)			Immediately	$ 67.01
11	WP8536939		Clip, Spring   (Replaces: 8536939)			Immediately	$ 7.81
13	W11693756		Screw, 8-18 X 5/8   (Replaces: 688983)			Immediately	$ 14.06
14	WP388326		Screw, Console   (Replaces: 388326)				$ 8.11
15	3397269		Connector, Timer				$ 25.55
16	8557931		Top (biscuit)		Appelez-nous	-
16	8557930		Top (white)		Appelez-nous	-
17	WP3394427		Clip, Harness   (Replaces: 3394427)				$ 7.79
18	WP94614		Terminal (female)   (Replaces: 94614)				$ 7.67
21	WP3976584		Timer Assembly (60 Hz.)   (Replaces: 3976584)				$ 362.08
23	8299876		Harness, Wiring		Appelez-nous	-
24	WP3403499		Connector, 2-position Gas Valve   (Replaces: 3403499)				$ 5.73
25	WP3403498		Connector, 3-position (gas Valve)   (Replaces: 3403498)				$ 6.95
26	WPW10139210		Screw, 8-18 X 5/16   (Replaces: 3390646)				$ 7.50
27	WP3977456		Switch, Push-to-start   (Replaces: 3977456)			Immediately	$ 26.66
28	8544956		Timer Knob Assembly (biscuit)		Appelez-nous	-
28	8544955		Timer Knob Assembly (white)				$ 41.86
29	8544895		Bracket, Control		Appelez-nous	-
30	8318801		Panel, Control (biscuit)		Appelez-nous	-
30	8318800		Panel, Control (white)		Appelez-nous	-
31	717252		Receptacle, Latching (2-way)		Appelez-nous	-
32	WP8544941		Knob, Push-to-start (biscuit)   (Replaces: 8544942)				$ 96.78
32	WP8544939		Knob, Push-to-start (white)   (Replaces: 8544939)				$ 49.94

    View Diagram in Separate Window       Print Part List
