01 - Cooktop Parts
02 - Oven Parts
03 - Control Panel Parts
04 - Oven Door Parts
05 - Top Venting Parts
06 - Internal Oven Parts, Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

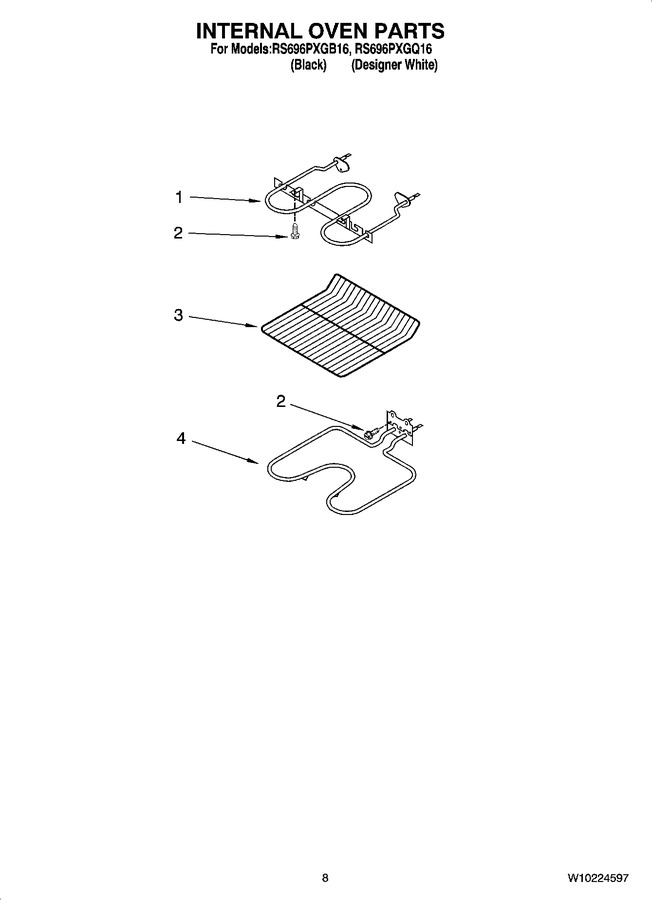

| 1 | WP9760771 | Element, Broil (Replaces: 9760771) |
|
Immediately | $ 126.28 | ||||
| 2 | WP4449154 | Screw (Replaces: 4449154) |
|
$ 8.16 | |||||
| 3 | WPW10179152 | Rack, Oven (Replaces: W10179152) |
|
Immediately | $ 148.08 | ||||
| 4 | WPW10207397 | Element, Bake (Replaces: 9760766) |
|
Immediately | $ 81.31 | ||||
| WP4448950 | Screw, Install (4) (Replaces: 4448950) |
|
$ 8.16 | ||||||
| 72032 | Paint, Touch-up 1/2 Oz. (black) |
|
Immediately | $ 18.69 | |||||
| 591014 | Adhesive Loctite (1/3 Oz.) |
|
- | ||||||
| WP482338 | Sealer, Silastic (3 Oz.) (Replaces: 482338) |
|
Immediately | $ 81.83 | |||||
| 8301876 | Harness, Main |
|
- | ||||||
| 4456646 | Harness, Wire (infinite Switch) |
|
- | ||||||
| 9760502 | Harness, Wire (burners) |
|
- | ||||||
| 4451163 | Conduit |
|
- | ||||||
| 4448664 | Clamp |
|
$ 21.41 | ||||||
| WP4449809 | Screw (Replaces: 4449809) |
|
Immediately | $ 7.55 | |||||
| WP7103P027-60 | Nut, Terminal Block (Replaces: 7103P027-60) |
|
Immediately | $ 7.55 | |||||
| 4450800 | Screw, Ground |
|
$ 13.47 | ||||||
| WPW10339879 | Tie, Cable (Replaces: 535183) |
|
$ 8.30 | ||||||
| 4451761 | Support, Wiring |
|
- | ||||||
| 4452222 | Spacer, Harness |
|
- | ||||||
| 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 12.30 | |||||
| WP261869 | Paint, Touch-up (1/2oz.) (cord Brown) (Replaces: 261869) |
|
$ 27.83 | ||||||
| 350930 | Paint, Spray (white) |
|
Immediately | $ 40.12 | |||||
| 261900 | Paint, Spray (citrine White) |
|
$ 59.89 | ||||||
| 285006 | Paint, Spray (black) (Replaces: 830864) |
|
$ 59.89 |
