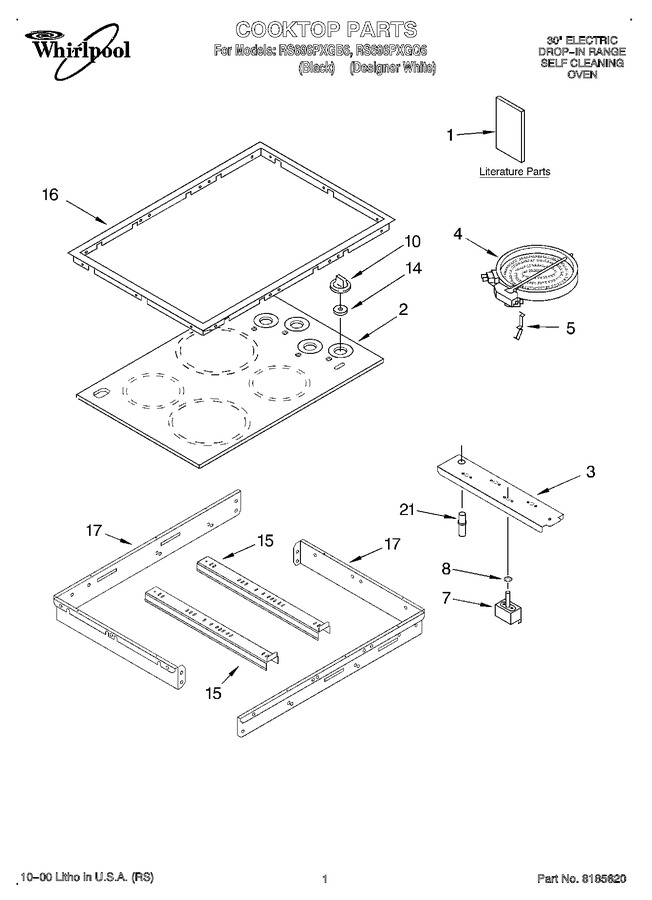

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LIT3191800		Literature Parts (installation Instructions)		Appelez-nous	-
1	LIT3191537		Use & Care Guide		Appelez-nous	-
1	LIT3192844		Tech Sheet		Appelez-nous	-
1	LIT3191638		Safer Cooking Tips		Appelez-nous	-
2	3191189		Cooktop, Glass (white)		Appelez-nous	-
2	3191843		Cooktop, Glass (black)		Appelez-nous	-
3	3191310		Bracket, Switch Mounting		Appelez-nous	-
4	W10823698		Element, Surface (1800 W - Rr)   (Replaces: 8272566)			Immediately	$ 195.12
4	W10823711		Element, Surface (1200w Rf - Lr)   (Replaces: 8272567)			Immediately	$ 204.39
4	W10823696		Element, Surface (2500 W - Lf)   (Replaces: 8272565)			Immediately	$ 214.25
5	WP486754		Screw (8)   (Replaces: 246119)				$ 8.01
5	3191791		Spring, Locator		Appelez-nous	-
7	WP4454541		Switch, Infinite (2500w Lf (red Shaft))   (Replaces: 4454541)				$ 174.37
7	WP3191050		Switch, Infinite (1800w Rr (yellow Shaft))   (Replaces: 3191050)			Immediately	$ 174.68
7	WP3191049		Switch, Infinite (1200w Rr-lr (silver Shaft))   (Replaces: 3191049)				$ 175.29
7	WP486579		Switch, Infinite (screw)   (Replaces: 311865)				$ 7.89
8	3183956		Seal, Switch Cover				$ 48.77
10	WP3196231		Knob, Control (4) (black)   (Replaces: 3196231)			Immediately	$ 22.00
10	3196232		Knob, Control (4) (white)				$ 16.71
14	3182435		Seal, Switch (4)		Appelez-nous	-
15	3191515		Bracket, Support Element		Appelez-nous	-
16	4168863		Trim Ring, Cooktop (screw)		Appelez-nous	-
16	3193228		Trim Ring, Cooktop (black)		Appelez-nous	-
16	3193227		Trim Ring, Cooktop (white)		Appelez-nous	-
17	3192452		Frame, Cooktop		Appelez-nous	-
21	9750835		Bumper, Door		Appelez-nous	-
21	3191952		Lamp, Indicator		Appelez-nous	-
21	3191953		Bumper, Rubber		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
