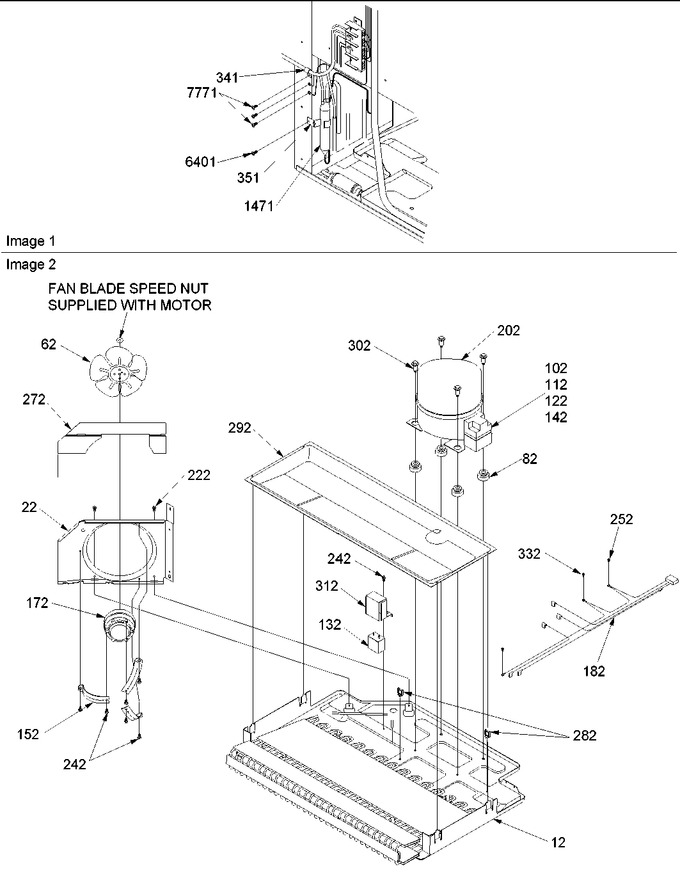

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
12	10481218		Assy,cond/pan-e Ct		Appelez-nous	-
22	10426911		Cond Fan Shrd-e Ct		Appelez-nous	-
62	B5742604		Blade, Fan		Appelez-nous	-
82	WPW10169124		Grommet, Compressor   (Replaces: 10835901)				$ 7.55
112	10377015		Overload		Appelez-nous	-
122	WP10097202		Ptc Relay   (Replaces: 10097202)				$ 124.93
132	WP65889-4		Capacitor   (Replaces: C8931604)			Immediately	$ 61.14
142	10757301		Cover, Terminal		Appelez-nous	-
152	10582501		Bracket, Cond. Motor		Appelez-nous	-
172	833697		Motor, Fan   (Replaces: 10884501)			Immediately	$ 88.15
182	10705803		Harness, Mach Comp		Appelez-nous	-
202	W10309990		Kit, Compressor (1380)   (Replaces: 12049710)			Immediately	$ 632.81
222	WP90767		Screw, Sm   (Replaces: M0224416)			Immediately	$ 8.25
242	M0223816		Screw, Tr				$ 5.27
252	12992301		Screw, Tf   (Replaces: M0231604)				$ 7.32
272	10442702		Gasket, Cond. Fan		Appelez-nous	-
282	B5667304		Wire Clip		Appelez-nous	-
292	10427404		Pan, Drain		Appelez-nous	-
302	M0221523		Screw, Shldr		Appelez-nous	-
312	10266402		Shield, Capacitor		Appelez-nous	-
332	WP489399		Screw   (Replaces: M0232903)				$ 7.30
341	M0103904		Clamp, Speed		Appelez-nous	-
351	10547001		Clip, Drier		Appelez-nous	-
1471	WPB2150504		Drier   (Replaces: B2150504)				$ 136.98
6401	WP489069		Screw   (Replaces: M0220617)			Immediately	$ 8.40
7771	WP489399		Screw, Ca   (Replaces: M0239216)				$ 7.30
