SELECT A DIAGRAM

01 - Cooktop, Literature


02 - Oven


03 - Control Panel


04 - Oven Door


05 - Top Venting


06 - Internal Oven, Optional

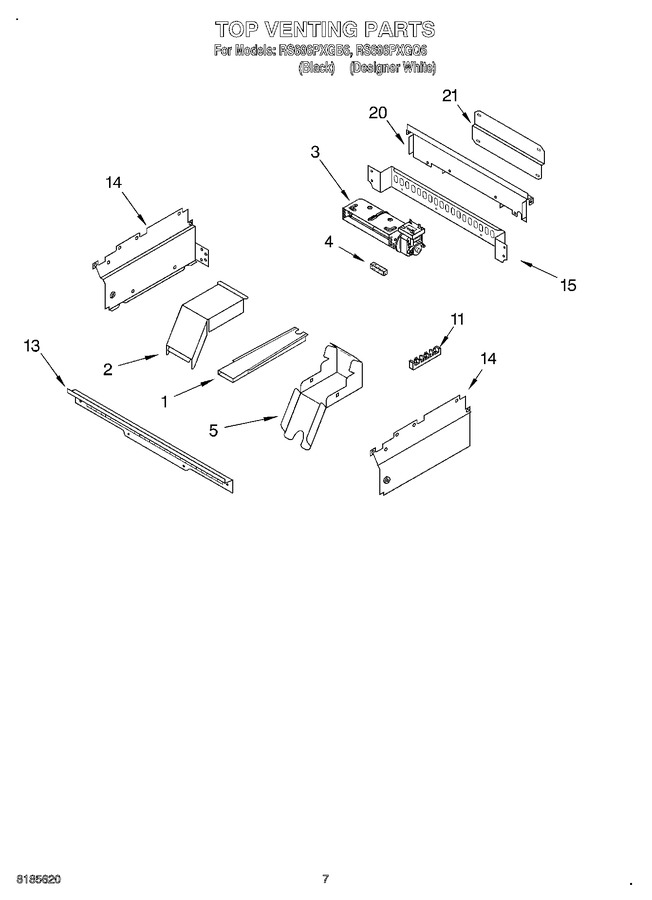

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4451759		Vent, Exhaust				$ 105.01
1	WP4449040		Screw   (Replaces: 4449040)				$ 6.78
2	4455178		Elbow, Vent- Top				$ 15.52
3	WP4455352		Bracket, Blower   (Replaces: 4455352)				$ 37.51
3	4455334		Blower				$ 224.67
4	W10491987		Block, Foam   (Replaces: 4451758)			Immediately	$ 8.14
5	4455177		Elbow, Vent- Bottom				$ 11.39
11	W11684512		Screw   (Replaces: 3400080)				$ 14.81
11	WP8203546		Block, Terminal   (Replaces: 4449868)			Immediately	$ 30.13
13	4448549		Vent, Control Panel		Appelez-nous	-
13	WP4450038		Screw   (Replaces: 4450038)				$ 8.30
14	4451535		Side, Control Compt. (right)		Appelez-nous	-
14	WP4449809		Side, Control Compt. (screw)   (Replaces: 4449809)			Immediately	$ 7.55
14	4451536		Side, Control Compt. (left)		Appelez-nous	-
15	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
15	4452244		Back, Control		Appelez-nous	-
20	3191842		Cover, Rear		Appelez-nous	-
21	4451407		Plate, Support		Appelez-nous	-
21	4452260		Spacer, Foam		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
