SELECT A DIAGRAM

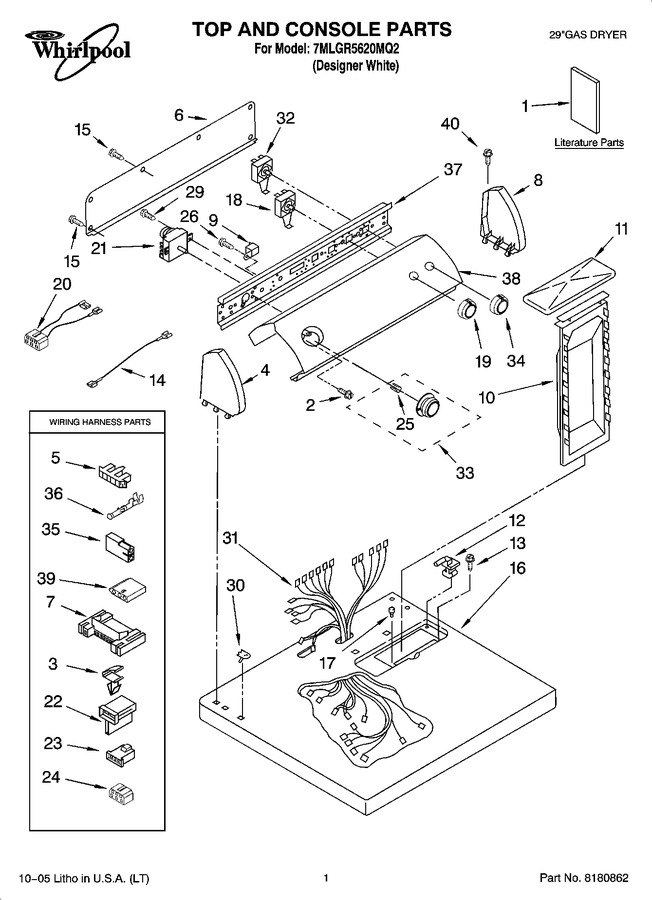

01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts


04 - 8318272 Burner Assembly, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8528187		Wiring Diagram		Appelez-nous	-
1	677818		Manual, Do-it- Yourself Repair (dryer)		Appelez-nous	-
1	N/A		Following May Be Purchased Do-it-yourself Repair Manuals		Appelez-nous	-
1	3978910		Installation Instructions		Appelez-nous	-
1	8543109		Use & Care Guide		Appelez-nous	-
2	3400859		Screw, Grounding   (Replaces: 8533951)				$ 13.88
3	WP3394427		Clip, Harness   (Replaces: 3394427)				$ 8.18
4	8271365		Cap, End (l.h.)		Appelez-nous	-
5	3397269		Connector, Timer				$ 25.55
6	W10103406		Panel, Rear Console   (Replaces: 8274261)				$ 135.31
7	3395683		Housing, Connector (motor)			Immediately	$ 54.45
8	8271359		Cap, End (r.h.)		Appelez-nous	-
9	WP694419		Buzzer, Mini   (Replaces: 694419)				$ 134.05
10	WP349639		Handle & Lint Screen Assembly   (Replaces: 349639)			Immediately	$ 37.21
11	8283378		Cover, Lint Screen				$ 44.80
12	WPW10044480		Hinge, L.h.   (Replaces: 3978606)				$ 8.11
12	WPW10044470		Hinge, R.h.   (Replaces: 3978605)				$ 8.11
13	W11693756		Screw, 8-18 X 5/8   (Replaces: 688983)			Immediately	$ 14.76
14	3401674		Wire, Jumper (black)				$ 34.37
15	WP693995		Screw, Hex Head   (Replaces: 693995)			Immediately	$ 7.55
16	8271390		Top		Appelez-nous	-
17	297535		Bumper, Lint Lid		Appelez-nous	-
18	3405152		Switch, End Of Cycle				$ 131.07
19	WP3957799		Knob, Control   (Replaces: 3957799)				$ 55.06
20	8283292		Wire, Jumper (guard On/off)		Appelez-nous	-
21	WP3976584		Timer Assembly (60 Hz.)   (Replaces: 3976584)				$ 380.18
22	WP3403499		Connector, 2-position Gas Valve   (Replaces: 3403499)				$ 6.02
23	WP3403498		Connector, 3-position (gas Valve)   (Replaces: 3403498)				$ 7.30
24	3347243		Connector 6-circuit		Appelez-nous	-
25	WP688805		Spring Clip, Knob   (Replaces: 688805)			Immediately	$ 8.20
26	WP90767		Screw   (Replaces: 8533971)			Immediately	$ 8.25
29	WPW10139210		Screw, 8-18 X 5/16   (Replaces: 3390646)				$ 8.03
30	WP357213		Nut, Push-in (2)   (Replaces: 357213)				$ 7.76
31	8299877		Harness, Wiring		Appelez-nous	-
32	WP3977456		Switch, Push-to-start   (Replaces: 3977456)			Immediately	$ 26.66
33	WP3957754		Timer Knob Assembly   (Replaces: 3957754)				$ 62.86
34	3957804		Knob, Push-to-start				$ 52.89
35	717252		Receptacle, 2 Way		Appelez-nous	-
36	WP94614		Terminal (female)   (Replaces: 94614)				$ 8.05
37	8271418		Bracket, Control				$ 57.15
38	8543129		Panel, Control		Appelez-nous	-
39	3936144		Connector				$ 21.22
40	WP388326		Screw, Console   (Replaces: 388326)				$ 9.29
