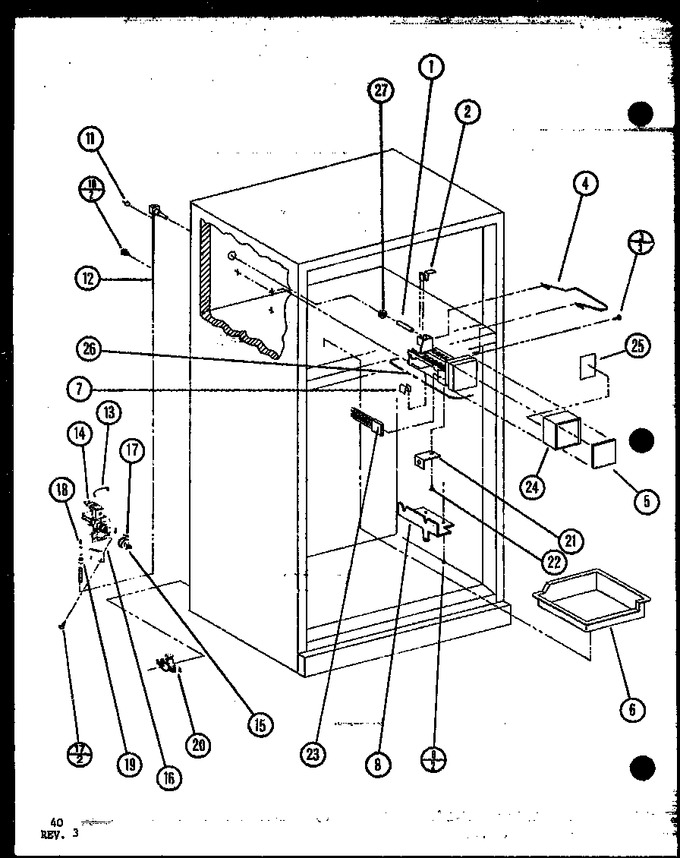

01 - Compressor Compartment Parts


02 - Fz Door Parts


03 - Interior Accessories


04 - Page 18


05 - Rear Components


06 - Ref Door Parts


07 - Ref Fz Functional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	A3127401		Tube		Appelez-nous	-
2	B5720301		Clip		Appelez-nous	-
3	WP98165		Screw, Sm   (Replaces: M0211018)				$ 8.57
4	WP67004028		Arm, I.m. Shut-off   (Replaces: D7813101)			Immediately	$ 95.92
5	C8963603		Insert, Ice Maker		Appelez-nous	-
6	D7621115		Ice Pan		Appelez-nous	-
10	WPM0104106		Clip,cord   (Replaces: M0104101)				$ 8.17
11	WPM0114003		Clip, Speed   (Replaces: M0114003)				$ 11.60
12	WPB5705307		Tubing Plastic   (Replaces: B5705308)				$ 13.05
13	B8374701		Clip, Water Valve		Appelez-nous	-
14	4318047		Valve-water K   (Replaces: D7712602)			Immediately	$ 74.09
15	A3084501		Coupling, Solenoid Valve And H		Appelez-nous	-
16	D7701601		Brkt, Water Valve		Appelez-nous	-
17	681390		Screw   (Replaces: M0251015)				$ 13.71
18	A1055101		Spring, Antikink		Appelez-nous	-
19	WP627018		Nut, Sleeve   (Replaces: M0753001)				$ 11.51
20	A3034801		Saddle Valve		Appelez-nous	-
21	R0183122		Bracket		Appelez-nous	-
22	WP489128		Screw   (Replaces: R0186038)				$ 11.40
23	D7813001		Harness, Ice Maker Mod		Appelez-nous	-
24	WPW10289690		Cover, Ice Maker   (Replaces: B5724506)			Immediately	$ 8.82
25	C8979501		Label Diagnostic Im		Appelez-nous	-
26	D7824706Q		Ice Maker   (Replaces: D7767601)			Immediately	$ 167.35
27	A3138301		Grommet		Appelez-nous	-
NI	M0102301		Clamp		Appelez-nous	-
NI	M0311301		Plug Button		Appelez-nous	-
NI	A3124301		Plug		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
