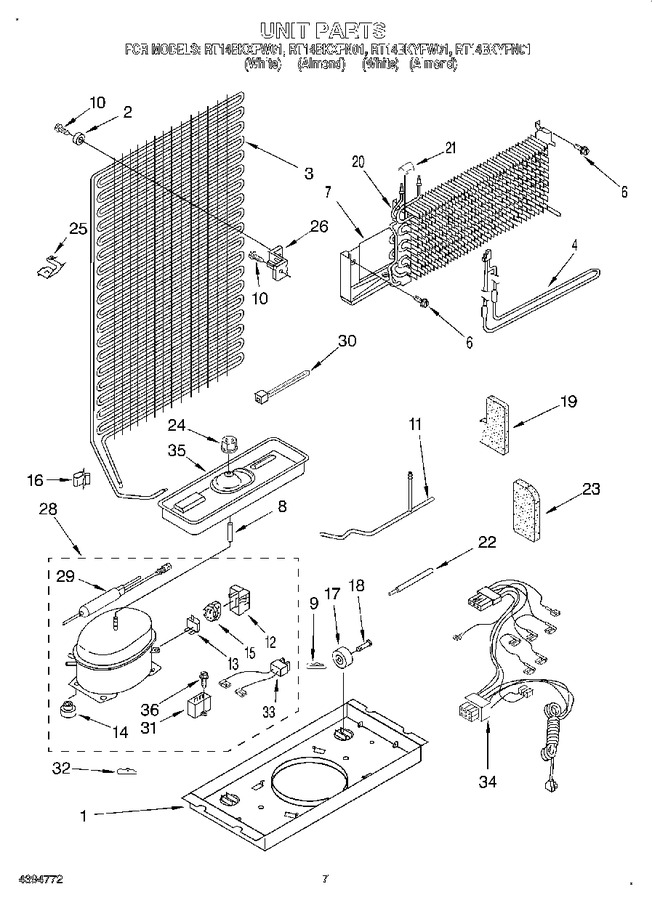

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2175260		Support Plate, Compressor		Appelez-nous	-
2	944772		Bumper		Appelez-nous	-
3	WP2252730		Condenser   (Replaces: 2195857)				$ 287.29
4	WP2263749		Heater, Defrost   (Replaces: 2176942)			Immediately	$ 93.70
6	WP489442		Screw   (Replaces: 489442)			Immediately	$ 11.49
7	2166097		Heat Shield		Appelez-nous	-
8	2176844		Spacer		Appelez-nous	-
9	WP2174706		Clip-pin   (Replaces: 2174706)				$ 11.53
10	WP488163		Screw,   (Replaces: 488725)				$ 7.92
11	2176855		Tube, Discharge		Appelez-nous	-
12	WP2162358		Cover   (Replaces: 2162358)				$ 95.29
13	4387913		Overload (includes Relay) (service)   (Replaces: 2154759)			Immediately	$ 84.39
13	WP2149959		Overload (includes Relay) (production)   (Replaces: 2149959)				$ 140.06
14	876811		Grommet (service)   (Replaces: 1100826)				$ 7.79
14	WP2163786		Grommet (production)   (Replaces: 2163786)				$ 8.36
15	N/A		Relay (see Overload)		Appelez-nous	-
16	W10812038		Clip, Wire   (Replaces: 939054)		Appelez-nous	-
17	4388239		Roller   (Replaces: 9791758)			Immediately	$ 75.99
18	W11594405		Rivet-axle   (Replaces: 2179826)			Immediately	$ 19.12
19	2166053		Wedge-evaporator		Appelez-nous	-
20	WP2263919		Evaporator Assy.   (Replaces: 2166055)				$ 324.61
21	9791833		Clip		Appelez-nous	-
22	2177020		Tube, Process		Appelez-nous	-
23	2166054		Wedge-evaporator		Appelez-nous	-
24	285002		Hex Nut   (Replaces: 489153)				$ 12.85
25	4386951		Clip, Condenser Mounting   (Replaces: 2172892)		Appelez-nous	-
26	944791		Bracket, Condenser		Appelez-nous	-
28	482801		Installation Kit				$ 119.50
28	876765		Tube Kit			Immediately	$ 90.65
28	W10823815		Compressor (includes Items 12, 13, 14, 15, 29, 32, 38 & 56) (also Order)   (Replaces: 2176660)				$ 707.86
29	W10843121		Drier   (Replaces: 2174865)			Immediately	$ 57.13
30	WPW10339879		Strap   (Replaces: 2155774)				$ 8.30
31	2169137		Run Capacitor (service Only)		Appelez-nous	-
32	24364001		Clip, Compressor		Appelez-nous	-
33	WP2172890		Wire Asm.   (Replaces: 2172890)				$ 8.51
34	2177021		Wire Assy. Unit				$ 109.69
35	2176668		Tray, Evaporator				$ 77.40
36	482278		Start Kit		Appelez-nous	-
36	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 110.51
36	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 21.64
36	978028		Valve, Access (1/2)		Appelez-nous	-
36	978029		Valve Access (5/8``)				$ 93.85
36	978030		Valve, Access (3/4``)				$ 137.25
36	876764		Valve, Access(3/16``)			Immediately	$ 95.92
36	W11693756		Screw   (Replaces: 488687)			Immediately	$ 14.76
36	978026		Valve, Access (5/16``)			Immediately	$ 134.49
