Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1103940		Panel, Freezer Door (also Order Item 21) (white)		Appelez-nous	-
1	1103942		Panel, Freezer Door (also Order Item 21) (almond)		Appelez-nous	-
1	1103941		Panel, Freezer Door (also Order Item 21) (golden Harvest)		Appelez-nous	-
2	989879		Hole Plug (golden Harvest)		Appelez-nous	-
2	534927		Hole Plug (white)		Appelez-nous	-
2	989197		Hole Plug (almond)		Appelez-nous	-
3	943185		Plate, Tap (4)		Appelez-nous	-
4	944035		Bracket, Door Stop		Appelez-nous	-
5	WP488921		Screw   (Replaces: 489220)			Immediately	$ 8.24
5	489221		Screw (repair)		Appelez-nous	-
6	489221		Screw (repair)		Appelez-nous	-
6	WP488921		Screw   (Replaces: 489224)			Immediately	$ 8.24
7	989196		Hole Plug (almond)		Appelez-nous	-
7	WP2212648		Hole Plug (white)   (Replaces: 844478)			Immediately	$ 8.19
7	WP2212648		Hole Plug (golden Harvest)   (Replaces: 989893)			Immediately	$ 8.19
8	WP2188456A		Door Gasket (magnetic)   (Replaces: 1122829)				$ 258.49
9	WPW10141645		Screw (repair)   (Replaces: 489084)				$ 8.05
9	WP489069		Screw, 7 X 1/2   (Replaces: 489101)			Immediately	$ 8.40
10	944157		End Cap, Handle (2)		Appelez-nous	-
12	1109183		Handle, Center		Appelez-nous	-
14	943188		Spacer, Handle Door (2)				$ 7.80
15	1120629		Panel, Interior Door (freezer)		Appelez-nous	-
16	WP488920		Screw   (Replaces: 489219)				$ 7.98
16	489250		Screw (repair)		Appelez-nous	-
17	1120710		Trim, Door Shelf		Appelez-nous	-
18	1124315		Nameplate		Appelez-nous	-
19	509929		Cap, Hinge Sleeve (2)		Appelez-nous	-
21	876029		Insulation Foam (required When Replacing Exterior Door)		Appelez-nous	-
22	1120613		Gasket Retainer, Side (2)		Appelez-nous	-
23	1120614		Gasket Retainer, Top & Bottom (2)				$ 27.51

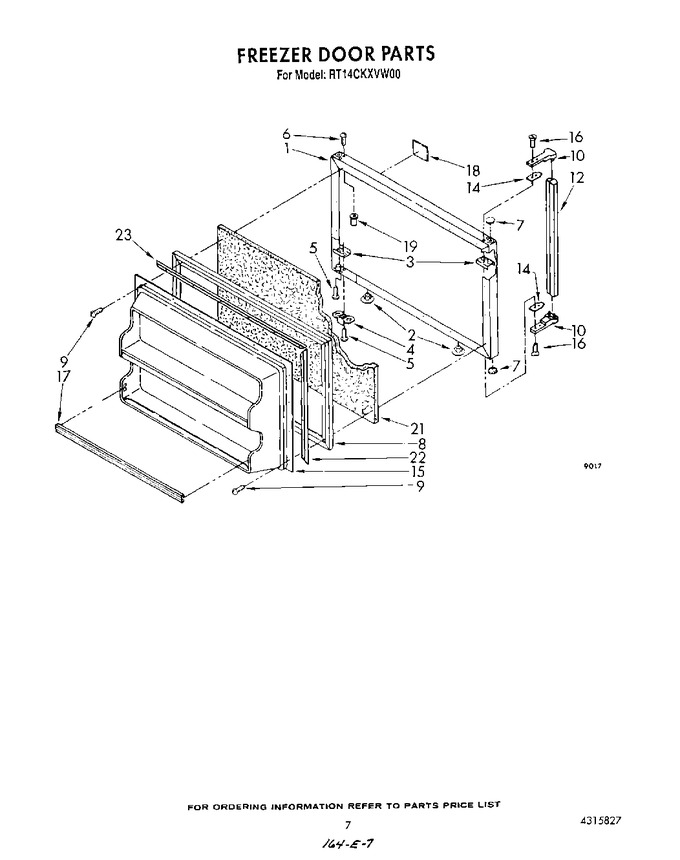

    View Diagram in Separate Window       Print Part List
