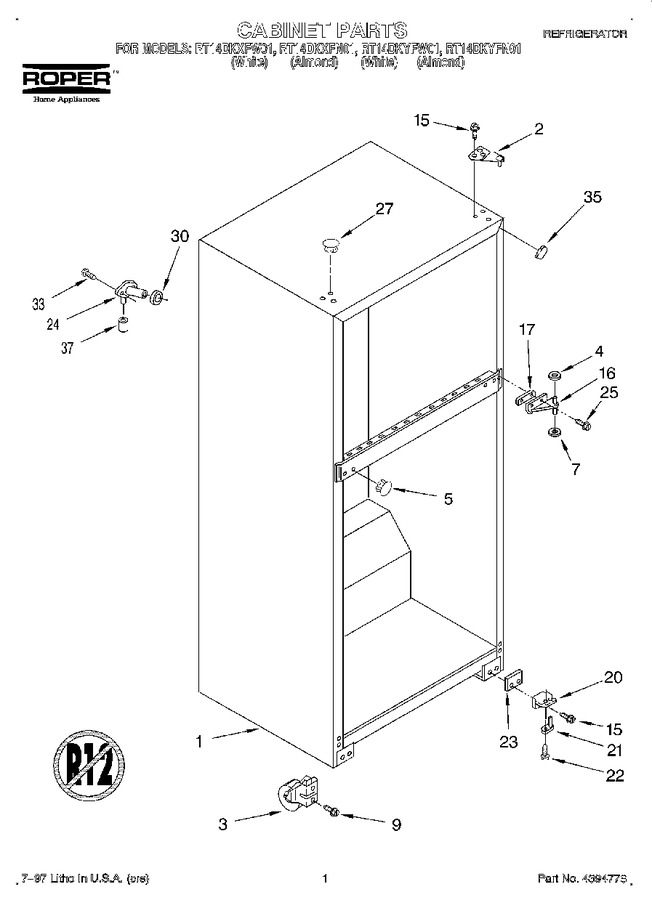

SELECT A DIAGRAM

01 - Cabinet


02 - Door


03 - Liner, Lit/optional


04 - Unit


05 - Shelf


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Cabinet (not A Serviceable Part)		Appelez-nous	-
2	WP2189412		Hinge (top)   (Replaces: 2189350)				$ 120.23
3	9790461		Roller-front		Appelez-nous	-
4	WP487576		Washer, 1/16   (Replaces: 487576)			Immediately	$ 9.88
5	1129062		Hole Plug		Appelez-nous	-
7	WP487802		Washer (7/64 Nylon)   (Replaces: 487802)			Immediately	$ 7.91
9	9791768		Screw		Appelez-nous	-
15	WP489497		Screw   (Replaces: 489497)			Immediately	$ 29.09
16	WP2166037		Hinge, Center   (Replaces: 2166037)				$ 85.08
17	2166043		Shim, Hinge Center   (Replaces: 2183143)				$ 69.76
20	WP2325482		Hinge Butt   (Replaces: 2166094)			Immediately	$ 80.00
21	9791682		Hinge-pin Bott.				$ 26.60
22	488714		Screw				$ 5.48
23	WP2201567		Shim, Bottom Hinge   (Replaces: 2183182)			Immediately	$ 8.16
24	WP2196157		Fitting,water Tube   (Replaces: 2174760)			Immediately	$ 12.59
25	WP999367		Screw   (Replaces: 489105)				$ 8.56
27	WP2151652		Hole Plug (6) (white)   (Replaces: 2151652)				$ 22.87
27	2151653		Hole Plug (6) (almond)		Appelez-nous	-
30	WP1106508		Seal Gasket   (Replaces: 1106508)			Immediately	$ 10.43
33	WPW10141645		Screw   (Replaces: 489084)				$ 8.05
35	W10859322		Corner Filler (white)   (Replaces: 2166003)				$ 8.09
35	2166004		Corner Filler (almond)		Appelez-nous	-
37	WP487996		Cap Bushing   (Replaces: 487996)				$ 8.67
