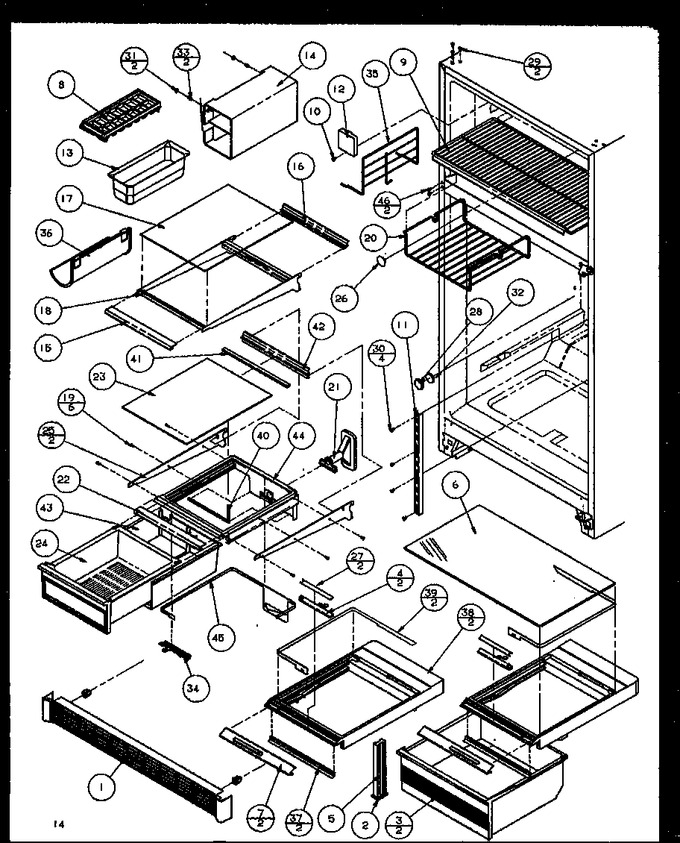

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	D7520510		Grille-toe-b K				$ 44.22
2	10349901		Shim, Crisper Support		Appelez-nous	-
2	10349902		Shim, Crisper Support		Appelez-nous	-
3	D7581043		Pan, Crisper		Appelez-nous	-
4	10199814		Slide Crisper Control K		Appelez-nous	-
4	10199815		Slide Crisper Control K		Appelez-nous	-
5	10199602		Post, Crisper Support		Appelez-nous	-
6	10036055		Glass Crisper Top Gg		Appelez-nous	-
7	D7616673		Trim		Appelez-nous	-
7	D7616672		Trim		Appelez-nous	-
8	WP841180A		Tray, Ice   (Replaces: D7725401)			Immediately	$ 47.84
9	D7580706		Shelf, Frz		Appelez-nous	-
10	67006425		Screw, Sm   (Replaces: M0209616)			Immediately	$ 7.30
11	D7599002		Ladder, Center		Appelez-nous	-
11	D7599105		Ladder, Side		Appelez-nous	-
12	D7874402		Cover-fl Tb/plug		Appelez-nous	-
13	D7620029		Bin-ice		Appelez-nous	-
14	D7620104		Rack, Ice		Appelez-nous	-
15	10049920		Trim-front Shelf		Appelez-nous	-
16	C8913610		Trim, Glass Shelf		Appelez-nous	-
17	10036052		Glass Shelf		Appelez-nous	-
18	D7871019		Assy, Glass Shelf		Appelez-nous	-
19	M0230028		Screw, No.8-32 X 5/16 Pph (blk)		Appelez-nous	-
20	10250501		Rack-freezer		Appelez-nous	-
21	D7859307		Grommet M.k.		Appelez-nous	-
22	10049919		Trim-front Shelf		Appelez-nous	-
23	10036049		Glass - Meatkeeper Shelf		Appelez-nous	-
24	D7698333		Pan-meat		Appelez-nous	-
25	D7862974		Side Rail		Appelez-nous	-
25	D7862975		Side Rail		Appelez-nous	-
26	M0310305		Plug, Button (wht)		Appelez-nous	-
27	10199906		Insert Crisper Slide		Appelez-nous	-
28	M0310314		Plug		Appelez-nous	-
29	WP12246608		Plug, Button (blk)   (Replaces: M0310727)			Immediately	$ 8.15
30	M0230923		Screw		Appelez-nous	-
30	WP90767		Screw, Sm   (Replaces: M0211016)			Immediately	$ 8.25
31	M0270508		Washer		Appelez-nous	-
32	B8362502		Insul. Mk Plug		Appelez-nous	-
33	M0219559		Screw		Appelez-nous	-
34	D7859402		Slide-mk Control		Appelez-nous	-
35	D7806002		Divider, Wire		Appelez-nous	-
36	D7547615		Rack Bottle V		Appelez-nous	-
37	D7718402		Seal Crisper		Appelez-nous	-
38	10182510		Frame Crisper L.		Appelez-nous	-
38	10182509		Frame Crisper R.		Appelez-nous	-
39	10200002		Band, Crisper Control		Appelez-nous	-
40	A3030353		Gasket		Appelez-nous	-
41	10043101		Ext. Rear Glass		Appelez-nous	-
42	C8990406		Trim M.k Top Rear		Appelez-nous	-
43	D7698112		Sleeve M.k. V		Appelez-nous	-
44	D7853303		Frame,meatkeeper		Appelez-nous	-
45	D7859504		Band M.k. Control		Appelez-nous	-
46	R9800670		Kit, Screw   (Replaces: M0226331)				$ 10.58
NI	Y00000000		See Note Add-on Ice Maker -- (available From Sales)		Appelez-nous	-
NI	10144018		Glass Shelf Assembly		Appelez-nous	-
NI	10259607		Right Crisper Frame Assembly		Appelez-nous	-
NI	10259606		Crisper Frame Assy L		Appelez-nous	-
NI	10144017		Glass Shelf Assembly		Appelez-nous	-
