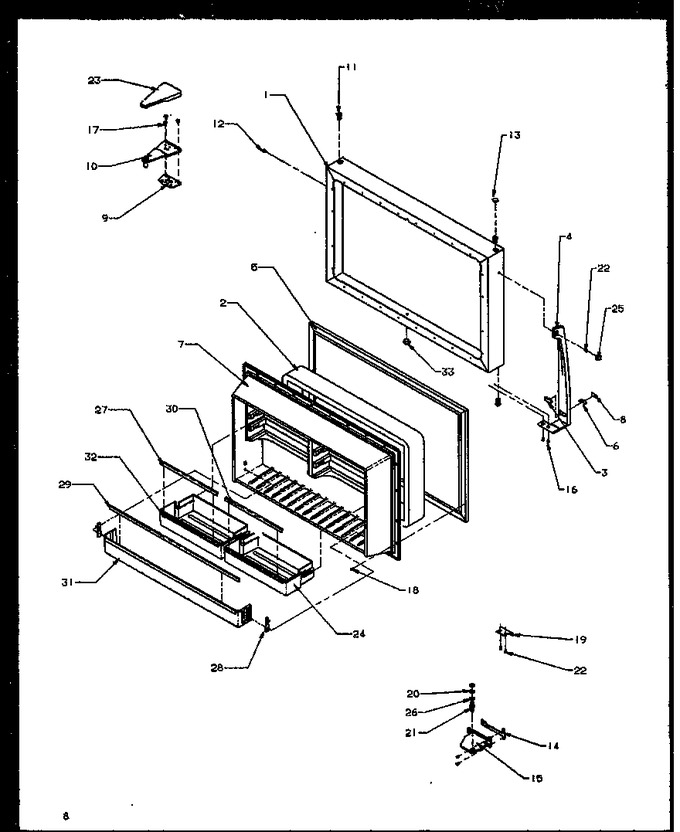

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	10482004EQ		Fz Door Foam Assembly, Black		Appelez-nous	-
1	10482004WQ		Assy Frz Door Fm		Appelez-nous	-
1	10482004LQ		Assy. Frz Door Cfc11		Appelez-nous	-
2	B0523593		Insulation, Batt Frz. Dr.		Appelez-nous	-
3	10184305		Plug Nameplate		Appelez-nous	-
3	10184301		Plug-nameplate W		Appelez-nous	-
3	10184303		Plug-l Nameplate		Appelez-nous	-
4	10253509		Handle Assy Fz W		Appelez-nous	-
4	10253507		Fz Handle Assy Bk		Appelez-nous	-
4	10253513		Assy, Frz Hndl L		Appelez-nous	-
5	WP12550110Q		Gasket,fz Dr(white)   (Replaces: 10456802)				$ 298.65
5	10456812		Gasket Frz (black)		Appelez-nous	-
6	10184501		Pad Nameplate		Appelez-nous	-
7	10461101		Liner, Freezer Dr		Appelez-nous	-
8	10184401		Nameplate, Handle		Appelez-nous	-
9	10451302		Shim, Top Hinge				$ 0.63
9	10451303		Shim, Top Hinge				$ 1.08
9	10451301		Shim, Top Hinge				$ 1.08
10	10185105		Hinge, Top		Appelez-nous	-
11	10393803		Bushing, Door (blk)		Appelez-nous	-
11	10393802		Bushing, Door (wht)		Appelez-nous	-
12	WP12246608		Plug, Button (blk)   (Replaces: M0310728)			Immediately	$ 8.15
12	WP67001130		Plug, Button (wht)   (Replaces: M0310701)			Immediately	$ 5.98
12	M0310714		Plug		Appelez-nous	-
13	10686402		Plug, Button		Appelez-nous	-
13	10686404		Plug, Button(black)		Appelez-nous	-
13	10686401		Plug Button		Appelez-nous	-
14	10562203		Shim, Center Hinge		Appelez-nous	-
14	10562202		Shim, Center Hinge		Appelez-nous	-
14	10562201		Shim, Center Hinge		Appelez-nous	-
15	10433503		Hinge-center		Appelez-nous	-
16	WPW10348409		Screw   (Replaces: M0222429)			Immediately	$ 8.20
17	R9800670		Kit, Screw   (Replaces: M0226331)				$ 10.58
18	M0219730		Screw				$ 7.65
19	10447101		Stop, Door (18)		Appelez-nous	-
19	10447102		Stop, Door		Appelez-nous	-
20	WPM0274062		Shim, Non Metal (blk)   (Replaces: M0274062)			Immediately	$ 24.43
20	WPM0274057		Shim, Non Metal (wht)   (Replaces: M0274057)			Immediately	$ 8.40
21	WP67006744		Pin, Hinge (ctr)   (Replaces: 10351001)				$ 8.68
22	WPW10348409		Mounting Screw   (Replaces: M0203944)			Immediately	$ 8.20
23	10444805		Cover, Hinge (white)		Appelez-nous	-
23	10444804		Cover, Hinge (black)		Appelez-nous	-
23	10444803		Cover, Hinge (almond)		Appelez-nous	-
24	10183006		Shelf, Ref Door		Appelez-nous	-
25	10201809		Cover, Handle Screw-blk		Appelez-nous	-
25	10201801		Cover-handle Screw W		Appelez-nous	-
25	10201805		Cover- Hndl Screw Almond		Appelez-nous	-
26	M0274058		Shim, Non Metal (wht)				$ 5.83
26	M0274063		Shim, Non Metal (blk)		Appelez-nous	-
27	10183963		Trim, Door Shelf		Appelez-nous	-
28	10202001		Clip, Retainer		Appelez-nous	-
29	10183957		Trim, Door Shelf (18-19)		Appelez-nous	-
30	10183921		Trim Dr. Shelf		Appelez-nous	-
31	10419201		Retainer, Ref Door		Appelez-nous	-
32	10419901		Shelf, Refrig. Door (19)		Appelez-nous	-
33	M0310308		Plug, Button (wht)		Appelez-nous	-
33	M0310338		Plug Button Almond		Appelez-nous	-
33	M0310336		Plug, Button (blk)		Appelez-nous	-
