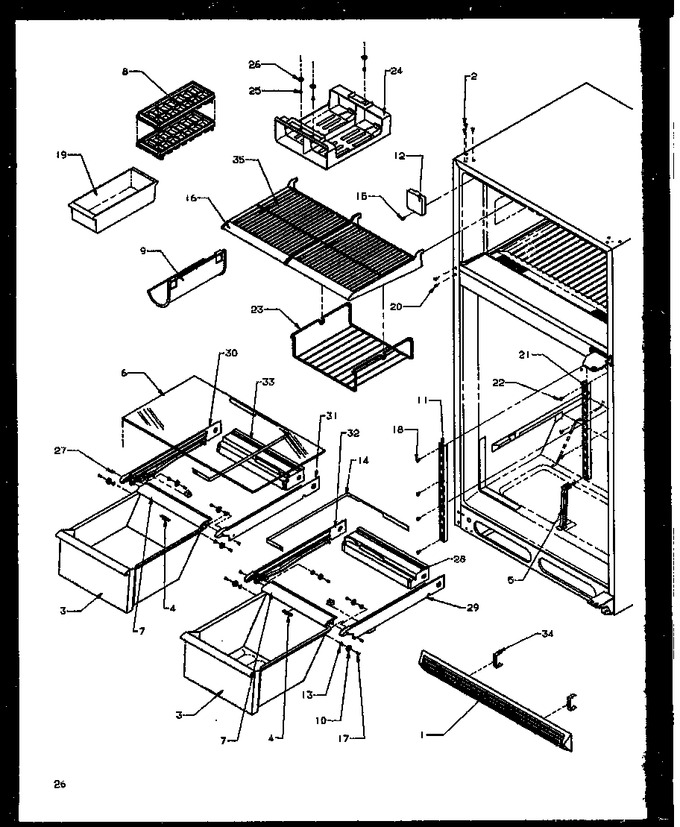

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 10474902 | Grille, Toe (white) (19) |
|
- | |||||
| 1 | 10474904 | Grille, L Toe |
|
- | |||||
| 1 | 10474901 | Grille, Toe (18) |
|
- | |||||
| 2 | WP12246608 | Plug, Button (blk) (Replaces: M0310727) |
|
Immediately | $ 8.15 | ||||
| 2 | WP67001130 | Plug (Replaces: M0310709) |
|
Immediately | $ 5.98 | ||||
| 2 | M0310716 | Plug |
|
- | |||||
| 3 | 10430211 | Pan, Crisper |
|
- | |||||
| 4 | 10447401 | Slide, Crisper |
|
- | |||||
| 5 | 10461901 | Post, Crisper Support |
|
Immediately | $ 25.85 | ||||
| 6 | 10370016 | Glass, Shelf (18) |
|
- | |||||
| 7 | 10450213 | Extr. Crisper Front (18-19) |
|
- | |||||
| 7 | 10450216 | Extr. Crisper Front (18-19) |
|
- | |||||
| 8 | WP841180A | Tray, Ice (Replaces: D7725401) |
|
Immediately | $ 47.84 | ||||
| 9 | 10448901 | Rack, Wine |
|
- | |||||
| 10 | 10481001 | Roller, Pan |
|
$ 10.99 | |||||
| 11 | D7599002 | Ladder, Center |
|
- | |||||
| 12 | D7874402 | Cover-fl Tb/plug |
|
- | |||||
| 13 | 67006692 | Screw, Shoulder (Replaces: 10481301) |
|
$ 10.79 | |||||
| 14 | 10467802 | Band, Crisper Control (18-19) |
|
- | |||||
| 15 | 67006425 | Screw (Replaces: M0230917) |
|
Immediately | $ 7.30 | ||||
| 16 | 10505608 | Extr, Wire Shelf |
|
- | |||||
| 17 | 67006692 | Screw, Hi Lo (Replaces: M0237932) |
|
$ 10.79 | |||||
| 18 | M0230923 | Screw |
|
- | |||||
| 19 | 10423121 | Bin, Ice |
|
- | |||||
| 20 | WP67001130 | Plug, Button (wht) (Replaces: M0310701) |
|
Immediately | $ 5.98 | ||||
| 20 | WP12246608 | Plug, Button (blk) (Replaces: M0310728) |
|
Immediately | $ 8.15 | ||||
| 20 | M0310714 | Plug |
|
- | |||||
| 21 | D7599105 | Ladder, Side |
|
- | |||||
| 22 | 67006425 | Screw-sm No.8-1/2lg (Replaces: M0211017) |
|
Immediately | $ 7.30 | ||||
| 23 | 10250502 | Rack, Freezer |
|
- | |||||
| 24 | 10423001 | Rack, Ice Service |
|
- | |||||
| 25 | M0219523 | Screw |
|
- | |||||
| 26 | M0270508 | Washer |
|
- | |||||
| 27 | WP98165 | Screw, Sm (Replaces: M0211018) |
|
$ 8.57 | |||||
| 28 | 10433805 | Rail, Crisper Back |
|
- | |||||
| 29 | 10432701 | Rail, Side Crisper |
|
- | |||||
| 30 | 10432702 | Rail, Side Crisper |
|
- | |||||
| 31 | 10432803 | Rail, Ctr. Crisper |
|
- | |||||
| 32 | 10432804 | Rail, Ctr. Crisper |
|
- | |||||
| 33 | 10435605 | Rail, Crisper Back |
|
- | |||||
| 34 | 10551501 | Clip-toe Grille |
|
- | |||||
| 35 | 10506001 | Shelf, Cantilever Wire |
|
- | |||||
| NI | 10480509 | Assy, Crisper Frame |
|
- |
