SELECT A DIAGRAM

01 - Cabinet Parts

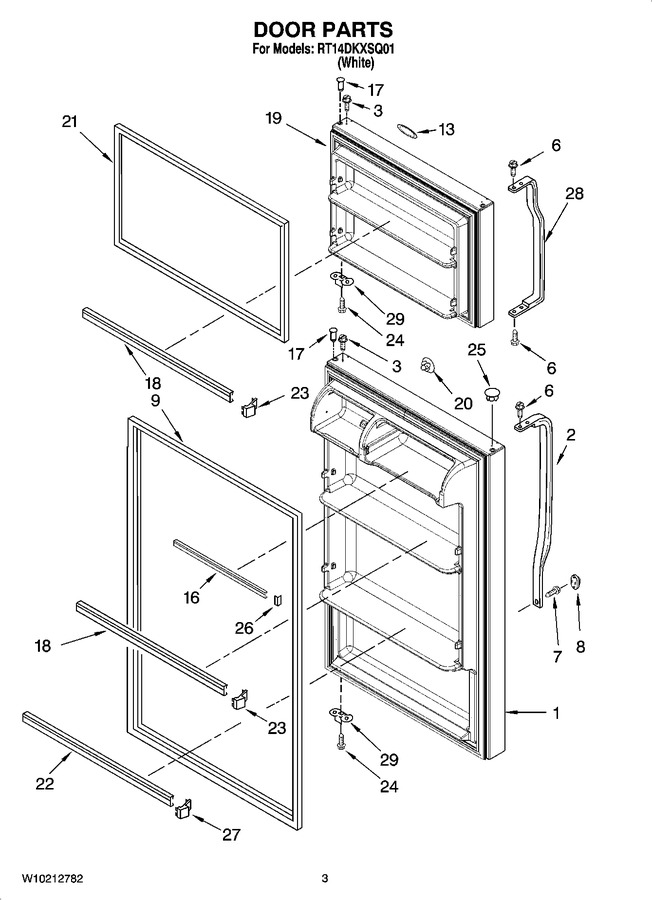

02 - Door Parts


03 - Liner Parts


04 - Unit Parts


05 - Shelf Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2316194W		Refrigerator Door Includes Item 17 (white)		Appelez-nous	-
2	WP2221946W		Handle (rc) (bow) (white)   (Replaces: 2221946W)			Immediately	$ 130.11
3	WP8281206		Screw   (Replaces: 8281206)				$ 7.94
6	WP489357		Screw   (Replaces: 489357)			Immediately	$ 7.19
7	WP8281146		Screw   (Replaces: 8281146)				$ 7.56
8	WP2202819W		Cover, Screw (white)   (Replaces: 2202819W)			Immediately	$ 7.75
9	WP2319265T		Door Gasket, Magnetic   (Replaces: W10190033)			Immediately	$ 184.89
13	W10162584		Nameplate (white)		Appelez-nous	-
16	W11129820		Trim, Door Shelf   (Replaces: 2266729)			Immediately	$ 121.28
17	WP2183003		Thimble   (Replaces: 2262054)				$ 7.75
18	WP2266727		Trim-door   (Replaces: 2266727)			Immediately	$ 92.50
19	2263275W		Freezer Door Includes Item 17 (white)		Appelez-nous	-
20	WP2189000		Hole Plug (white)   (Replaces: 2189000)			Immediately	$ 7.40
21	WP2319263T		Door Gasket, Magnetic   (Replaces: W10190031)			Immediately	$ 169.53
22	WP2266738		Trim, Door Shelf   (Replaces: 2266738)				$ 111.69
23	WP2156003		Endcap, Trim   (Replaces: 2156003)			Immediately	$ 12.62
24	WP488921		Screw   (Replaces: 488921)			Immediately	$ 7.75
25	WP2212648		Hole Plug (white)   (Replaces: 2212648)			Immediately	$ 7.80
26	WP2156007		Plug, Trim   (Replaces: 2156007)			Immediately	$ 7.65
27	WP2195916K		Plug, Trim   (Replaces: 2195916)			Immediately	$ 12.55
28	WP2202098		Handle (fc) (bow) (white)   (Replaces: 2202098)				$ 149.35
29	2217944		Bracket, Door Stop				$ 26.55

    View Diagram in Separate Window       Print Part List
