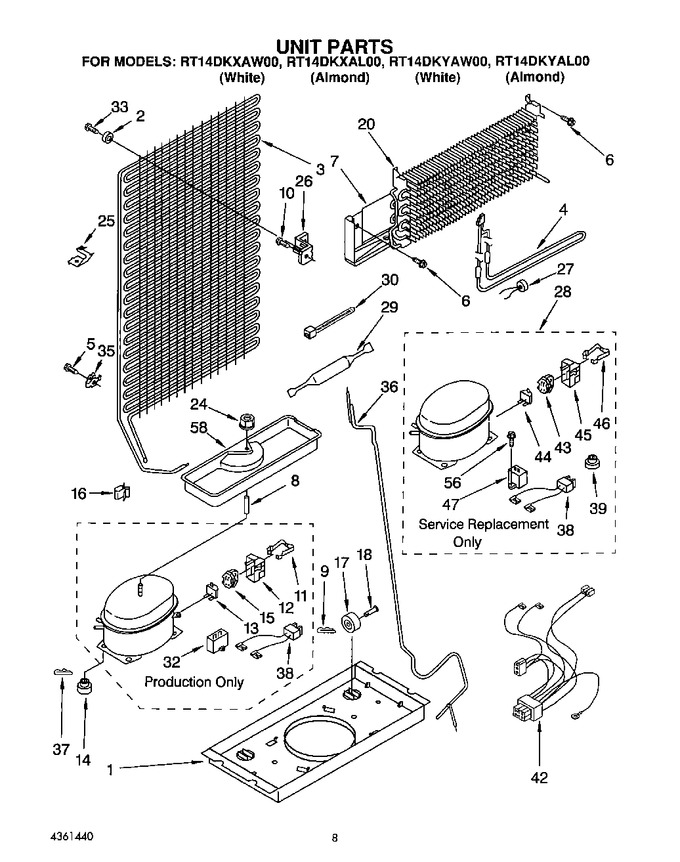

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 9791635 | Support Plate, Compressor |
|
- | |||||
| 2 | 944772 | Bumper (2) |
|
- | |||||
| 3 | 9790413 | Condenser |
|
- | |||||
| 4 | WP2263749 | Heater, Defrost (Replaces: 2166031) |
|
Immediately | $ 93.70 | ||||
| 5 | WP965173 | Screw (Replaces: 487415) |
|
Immediately | $ 11.87 | ||||
| 6 | WP965173 | Screw (Replaces: 487869) |
|
Immediately | $ 11.87 | ||||
| 7 | 9791383 | Heat Shield |
|
- | |||||
| 8 | 1105130 | Spacer |
|
- | |||||
| 9 | 20150912 | Clip-pin |
|
- | |||||
| 10 | WP489478 | Screw (Replaces: 489242) |
|
$ 8.18 | |||||
| 11 | 938384 | Strap |
|
- | |||||
| 12 | 1108115 | Cover |
|
- | |||||
| 13 | 2154758 | Overload |
|
- | |||||
| 14 | WP2163786 | Grommet (4) (Replaces: 2163786) |
|
$ 8.36 | |||||
| 15 | WP2262181 | Start Relay (Replaces: 1108143) |
|
$ 128.78 | |||||
| 16 | W10812038 | Clip, Wire (Replaces: 939054) |
|
- | |||||
| 17 | 4388239 | Roller (Replaces: 9791758) |
|
Immediately | $ 75.99 | ||||
| 18 | 20150911 | Pin-roller |
|
- | |||||
| 20 | WP2263919 | Evaporator Assy. Bracket (2) (Replaces: 9791441) |
|
$ 324.61 | |||||
| 24 | 285002 | Hex Nut (Replaces: 489153) |
|
$ 12.85 | |||||
| 25 | 4386951 | Clip, Condenser Mounting (2) (Replaces: 942852) |
|
- | |||||
| 26 | 944791 | Bracket, Condenser |
|
- | |||||
| 27 | WP4387490 | Defrost Bimetal (Replaces: 9791823) |
|
Immediately | $ 30.88 | ||||
| 28 | 4317960 | Compressor (also Order 482801 Installation Kit & 876765 Tube Kit) |
|
- | |||||
| 29 | W10843121 | Drier (Replaces: 2154002) |
|
Immediately | $ 57.13 | ||||
| 30 | 851095 | Clamp |
|
- | |||||
| 32 | WPW10662129 | Run Capacitor (Replaces: 1118581) |
|
Immediately | $ 58.86 | ||||
| 33 | WP489174 | Screw (Replaces: 489169) |
|
$ 7.30 | |||||
| 35 | 1105406 | Clip, Tube |
|
- | |||||
| 36 | 9791825 | Heat Exchanger |
|
- | |||||
| 37 | 24364001 | Clip, Compressor |
|
- | |||||
| 38 | WP2172890 | Wire Asm (Replaces: 1127675) |
|
$ 8.51 | |||||
| 39 | 876811 | Grommet (Replaces: 1100826) |
|
$ 7.79 | |||||
| 42 | 9790416 | Wire Assy. Unit |
|
- | |||||
| 43 | WP2262181 | Relay (Replaces: 1108143) |
|
$ 128.78 | |||||
| 44 | 1108114 | Overload |
|
- | |||||
| 45 | 1108115 | Cover, Terminal |
|
- | |||||
| 46 | 938384 | Retainer |
|
- | |||||
| 47 | WPW10662129 | Capacitor (Replaces: 1118581) |
|
Immediately | $ 58.86 | ||||
| 56 | W11693756 | Screw (Replaces: 487240) |
|
Immediately | $ 14.76 | ||||
| 58 | 482278 | Start Kit |
|
- | |||||
| 58 | 978029 | Valve Access (5/8``) |
|
$ 93.85 | |||||
| 58 | 978030 | Valve, Access (3/4``) |
|
$ 137.25 | |||||
| 58 | 876764 | Valve, Access(3/16``) |
|
Immediately | $ 95.92 | ||||
| 58 | WP978025 | Valve, Access (1/4``) (Replaces: 978025) |
|
Immediately | $ 110.51 | ||||
| 58 | 1101002 | Evaporator Tray |
|
- | |||||
| 58 | 978026 | Valve, Access (5/16``) |
|
Immediately | $ 134.49 | ||||
| 58 | SF5538 | Valve, Access (3/8``) (Replaces: 978027) |
|
$ 21.64 | |||||
| 58 | 978028 | Valve, Access (1/2) |
|
- |
