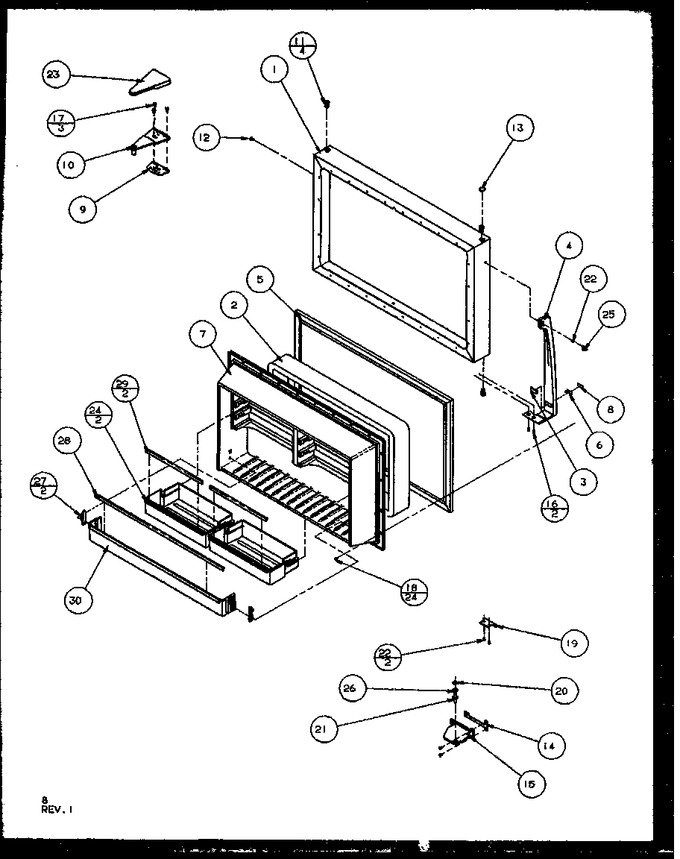

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 10482007EQ | Fz Door Foam Assembly, Black |
|
- | |||||
| 1 | 10482004WQ | Assy Frz Door Fm |
|
- | |||||
| 1 | 10482004LQ | Assy. Frz Door Cfc11 |
|
- | |||||
| 2 | B0523593 | Insulation, Batt Frz. Dr. |
|
- | |||||
| 3 | 10184303 | Plug-l Nameplate |
|
- | |||||
| 3 | 10184305 | Plug Nameplate |
|
- | |||||
| 3 | 10184301 | Plug-nameplate W |
|
- | |||||
| 4 | 10253513 | Assy, Frz Hndl L |
|
- | |||||
| 4 | 10253509 | Handle Assy Fz W |
|
- | |||||
| 4 | 10253521 | Fz Handle Assy Bk |
|
- | |||||
| 5 | 10456812 | Gasket Frz (black) |
|
- | |||||
| 5 | WP12550110Q | Gasket,fz Dr(white) (Replaces: 10456802) |
|
$ 298.65 | |||||
| 6 | 10184501 | Pad Nameplate |
|
- | |||||
| 7 | 10461101 | Liner, Freezer Dr |
|
- | |||||
| 8 | 10184401 | Nameplate, Handle |
|
- | |||||
| 9 | 10451303 | Shim, Top Hinge |
|
$ 1.08 | |||||
| 9 | 10451301 | Shim, Top Hinge |
|
$ 1.08 | |||||
| 9 | 10451302 | Shim, Top Hinge |
|
$ 0.63 | |||||
| 10 | 10185105 | Hinge, Top |
|
- | |||||
| 11 | 10393803 | Bushing, Door (blk) |
|
- | |||||
| 12 | WP12246608 | Plug, Button (blk) (Replaces: M0310728) |
|
Immediately | $ 8.15 | ||||
| 12 | WP67001130 | Plug, Button (wht) (Replaces: M0310701) |
|
Immediately | $ 5.98 | ||||
| 13 | 10263702 | Plug Button L |
|
- | |||||
| 13 | 10263701 | Plug Button |
|
- | |||||
| 13 | 10263704 | Plug, Button(black) |
|
- | |||||
| 14 | 10562201 | Shim, Center Hinge |
|
- | |||||
| 14 | 10562203 | Shim, Center Hinge |
|
- | |||||
| 14 | 10562202 | Shim, Center Hinge |
|
- | |||||
| 15 | 10433501 | Hinge-center |
|
- | |||||
| 16 | WPW10348409 | Screw (Replaces: M0222429) |
|
Immediately | $ 8.20 | ||||
| 17 | R9800670 | Kit, Screw (Replaces: M0226331) |
|
$ 10.58 | |||||
| 18 | M0219730 | Screw |
|
$ 7.65 | |||||
| 19 | 10447102 | Stop, Door |
|
- | |||||
| 19 | W11708403 | Stop-black Door (Replaces: 10447103) |
|
Immediately | $ 14.75 | ||||
| 20 | M0274049 | Washer |
|
- | |||||
| 21 | WP67006744 | Pin, Hinge (ctr) (Replaces: 10351001) |
|
$ 8.68 | |||||
| 22 | WPW10348409 | Mounting Screw (Replaces: M0203944) |
|
Immediately | $ 8.20 | ||||
| 23 | 10444805 | Cover, Hinge (white) |
|
- | |||||
| 23 | 10444804 | Cover, Hinge (black) |
|
- | |||||
| 23 | 10444803 | Cover, Hinge (almond) |
|
- | |||||
| 24 | 10419901 | Shelf, Refrig. Door (19) |
|
- | |||||
| 24 | 10183006 | Shelf, Ref Door |
|
- | |||||
| 25 | 10201809 | Cover, Handle Screw-blk |
|
- | |||||
| 25 | 10201801 | Cover-handle Screw W |
|
- | |||||
| 25 | 10201805 | Cover- Hndl Screw Almond |
|
- | |||||
| 26 | M0274050 | Washer |
|
- | |||||
| 27 | W11245710 | Screw, Sm (stnls) (Replaces: M0210417) |
|
Immediately | $ 14.75 | ||||
| 28 | 10202001 | Clip, Retainer |
|
- | |||||
| 29 | 10183957 | Trim, Door Shelf (18-19) |
|
- | |||||
| 30 | 10183954 | Trim, Door Shelf |
|
- | |||||
| 30 | 10183921 | Trim Dr. Shelf |
|
- | |||||
| NI | 10419201 | Retainer, Ref Door |
|
- |
