01 - (tecumseh Compressor)


02 - Cabinet Back


03 - Cabinet Bottom And Back


04 - Cabinet Shelving


05 - Cabinet Shelving


06 - Divider Block And Controls


07 - Evap Area


08 - Fz Door


09 - Fz Door And Trim Parts


10 - Ref Door


11 - Ref Door And Trim Parts

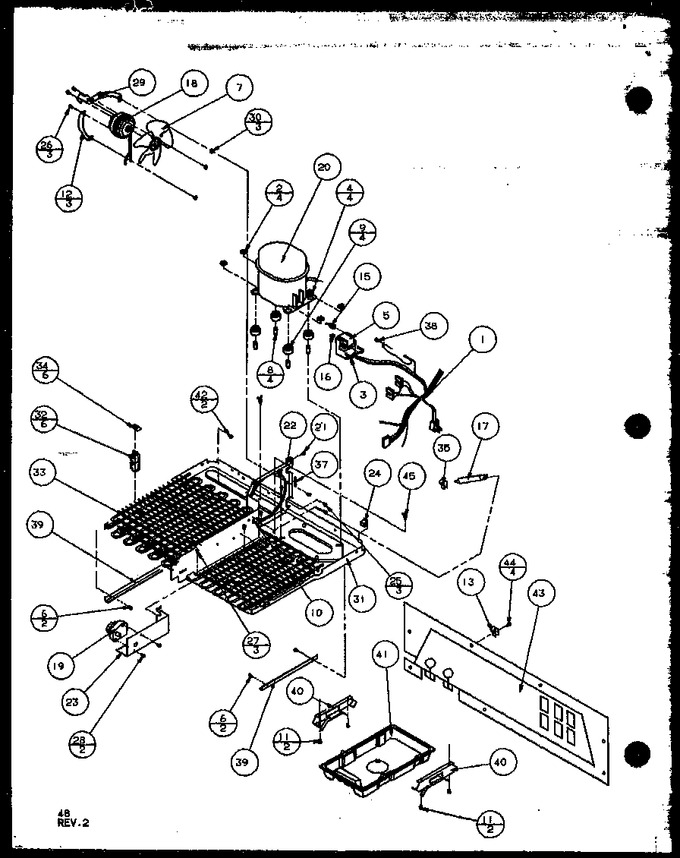

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	10354701		Harness. M.c		Appelez-nous	-
2	A3140801		Clip K		Appelez-nous	-
3	A3041801		Strap K		Appelez-nous	-
4	B8365302		Washer		Appelez-nous	-
5	B0559501		Cover K		Appelez-nous	-
6	M0211530		Screw		Appelez-nous	-
7	B5742601		Blade, Fan		Appelez-nous	-
8	A3072001		Sleeve K		Appelez-nous	-
9	WPW10169124		Grommet   (Replaces: B8333401)				$ 7.55
10	A9008301		Felt		Appelez-nous	-
11	WP489069		Screw   (Replaces: M0220617)			Immediately	$ 8.40
12	C8982101		Bracket, Cond Motor		Appelez-nous	-
13	M0102301		Clamp		Appelez-nous	-
15	C8866906		Overload		Appelez-nous	-
16	C3553407		Relay		Appelez-nous	-
17	4007A		Drier   (Replaces: B2150502)			Immediately	$ 15.05
18	833697		Motor, Fan   (Replaces: D7584001)			Immediately	$ 88.15
19	R0168027		Kit, Defrost Timer   (Replaces: 10129303)			Immediately	$ 159.86
20	W10439652		Compressor   (Replaces: D7743203)				$ 442.20
21	WP489069		Screw   (Replaces: M0220617)			Immediately	$ 8.40
22	D7691002		Cond. Fan Shrd		Appelez-nous	-
23	D7752701		Bracket, Timer		Appelez-nous	-
24	M0110508		Clip		Appelez-nous	-
25	M0221332		Screw, Shoulder		Appelez-nous	-
26	M0223803		Screw		Appelez-nous	-
27	WP12990527		Screw   (Replaces: M0219916)			Immediately	$ 8.76
28	M0218118		Screw		Appelez-nous	-
29	WPW10339879		Tie   (Replaces: M0321202)				$ 8.30
30	M0500107		Grommet K		Appelez-nous	-
31	D7595413		Base Pan		Appelez-nous	-
32	B8346301		Spacer Cond.		Appelez-nous	-
33	D7654301		Condenser Pntd		Appelez-nous	-
34	M0293703		Speednut		Appelez-nous	-
35	M0104002		Clamp-drier		Appelez-nous	-
37	B5759604		Gasket		Appelez-nous	-
38	M0253916		Screw		Appelez-nous	-
39	D7835501		Support M.c.		Appelez-nous	-
40	D7790501		Support Drain Pan		Appelez-nous	-
41	D7790601		Drain Pan		Appelez-nous	-
42	WP22002933		Screw, Sm   (Replaces: M0211357)				$ 8.06
43	C8890208		Back M.c. Comp		Appelez-nous	-
44	M0219704		Screw		Appelez-nous	-
45	DC61-40081A		Tie, Wire   (Replaces: M0585401)				$ 0.94
NI	C8916701		Spring K		Appelez-nous	-
