Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 WPW10348409 Screw   (Replaces: M0222429) In-Stock Immediately $ 8.20

2 10253512 Ref Handle Assembly, Gold Appelez-nous -
2 10253510 Handle Assy Ref W Appelez-nous -
2 10253522 Ref Handle Assy Bk Appelez-nous -
2 10253514 Assy, Ref Hndl L Appelez-nous -
3 10339806 Trim, Top Frz/referig Appelez-nous -
3 D3958309 Cap-door Appelez-nous -
4 10392601 Bushing Appelez-nous -
4 10392602 Bushing Appelez-nous -
5 M0310713 Plug Appelez-nous -
5 M0310714 Plug Appelez-nous -
5 WP67001130 Plug, Button (wht)   (Replaces: M0310701) In-Stock Immediately $ 5.98

5 M0310724 Plug Appelez-nous -
6 10253914EQ Assy Refr Dr Cfc 11 Appelez-nous -
6 10253907Q W Ref Dr Fom As Cfc11 Appelez-nous -
6 10253908Q G Ref Dr Fm As Cfc 11 Appelez-nous -
6 10253909Q L Ref Dr Fom As Cfc11 Appelez-nous -
7 WP67006715 Screw   (Replaces: M0233847) Special Order $ 7.55

8 10266105 Stop- Door Appelez-nous -
8 10266104 Stop Door Appelez-nous -
9 10399502 Kit,btm Hinge Shim Appelez-nous -
9 10399501 Kit,btm Hinge Shim Appelez-nous -
10 10163607 Btm Hinge Brkt E Appelez-nous -
11 C8814901 Pin, Hinge K Appelez-nous -
12 M0274049 Washer Appelez-nous -
13 WPW10348409 Mounting Screw   (Replaces: M0203944) In-Stock Immediately $ 8.20

14 10201802 Cover-handle Screw W Appelez-nous -
14 10201806 Cover- Hndl Screw Almond Appelez-nous -
14 10201804 Cover-handle Screw G Appelez-nous -
14 10201810 Cover, Handle Screw-blk Appelez-nous -
15 10339725 Trim Appelez-nous -
16 10339726 Trim Appelez-nous -
17 M0310713 Plug Appelez-nous -
18 M0275148 Tape Per Roll K Appelez-nous -
19 W11245710 Screw, Sm (stnls)   (Replaces: M0210417) In-Stock Immediately $ 14.75

20 A3030335 Gasket-per Ft Appelez-nous -
21 10339903 Trim, Bottom Frz-refrig Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

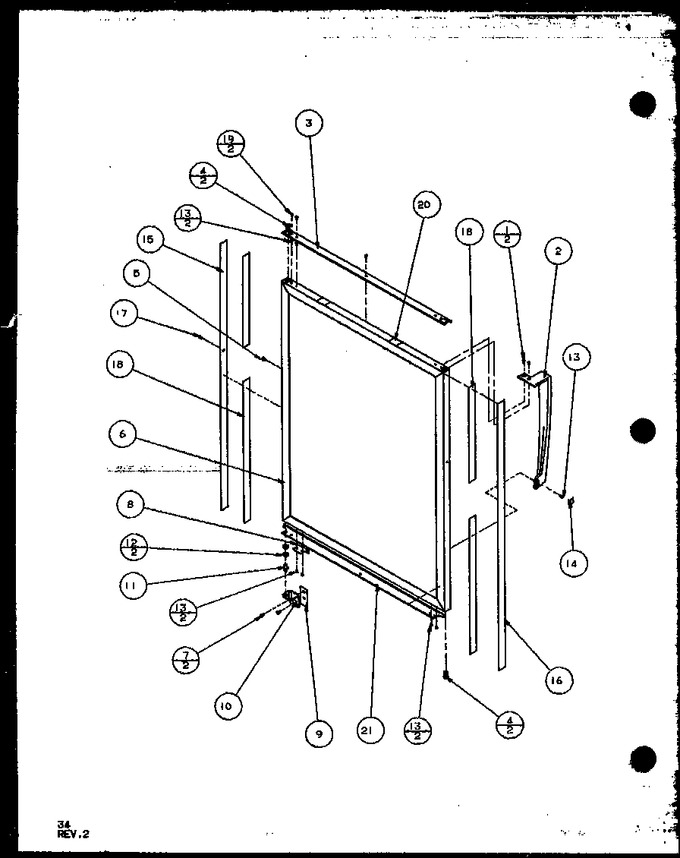

Diagram for TZ20QW (BOM: P1156201W W)
