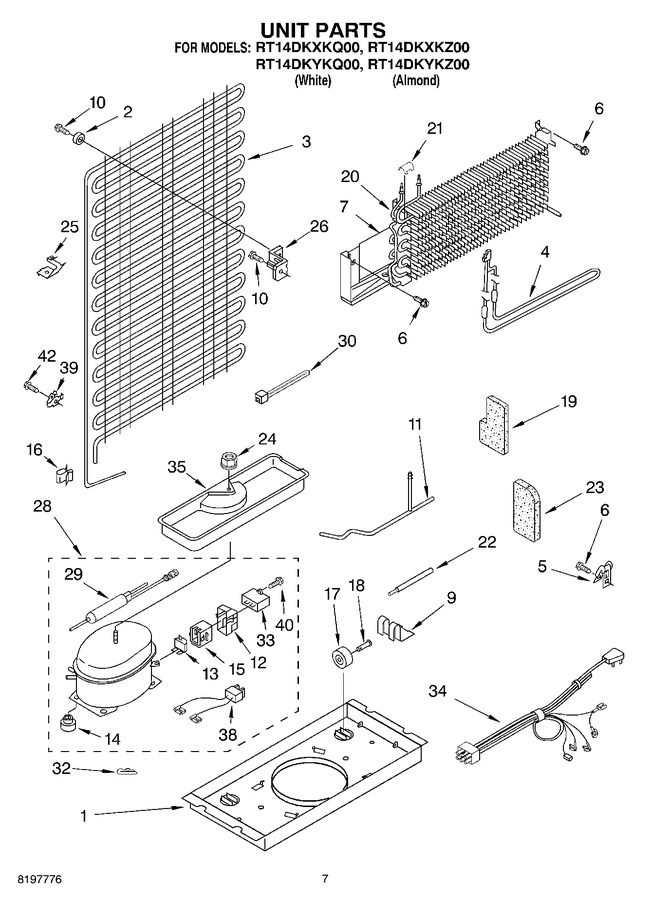

SELECT A DIAGRAM

01 - Cabinet, Literature


02 - Door


03 - Liner


04 - Unit


05 - Shelf, Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2221886		Support Plate, Compressor		Appelez-nous	-
2	944772		Bumper		Appelez-nous	-
3	WP2252730		Condenser   (Replaces: 2192693)				$ 273.61
4	WP2263749		Heater, Defrost   (Replaces: 2176942)			Immediately	$ 93.70
5	549193		Clamp-cord				$ 13.39
6	WP489442		Screw   (Replaces: 489442)			Immediately	$ 10.94
7	2201515		Heat Shield		Appelez-nous	-
9	WP2174706		Clip-pin   (Replaces: 2174706)				$ 10.98
10	WP488163		Screw,   (Replaces: 488725)				$ 7.54
11	2174791		Evacuation Tube		Appelez-nous	-
12	WP2162358		Cover ((service))   (Replaces: 4387731)				$ 90.75
12	WP2162358		Cover (production)   (Replaces: 2162358)				$ 90.75
13	4387913		Overload ((service - Includes Relay))   (Replaces: 4387766)			Immediately	$ 84.39
13	WP2214067		Overload (production)   (Replaces: 2214067)				$ 131.66
14	WP2163786		Grommet (production)   (Replaces: 2163786)				$ 7.96
14	WP4387558		Grommet (service)   (Replaces: 4387558)				$ 6.95
15	WP2262181		Relay (production (service See Overload))   (Replaces: 2213763)				$ 122.65
16	W10812038		Clip, Wire   (Replaces: 939054)		Appelez-nous	-
17	WPW10475495		Roller   (Replaces: 2150304)			Immediately	$ 32.06
18	W11594405		Rivet-axle   (Replaces: 2179826)			Immediately	$ 18.21
19	2166053		Wedge-evaporator		Appelez-nous	-
20	WP2263919		Evaporator Assy.   (Replaces: 2166055)				$ 309.15
21	9791833		Clip		Appelez-nous	-
22	W11661102		Tube, Process   (Replaces: 2174739)				$ 29.01
23	2166054		Wedge-evaporator		Appelez-nous	-
24	285002		Hex Nut   (Replaces: 489153)				$ 12.24
25	4386951		Clip, Condenser Mounting   (Replaces: 2172892)		Appelez-nous	-
26	2213986		Bracket, Condenser		Appelez-nous	-
28	W10309988		Compressor (includes Items 12, 13, 14, 15, 29 & 38) (also Order   (Replaces: 2216049)			Immediately	$ 559.32
28	482801		Installation Kit				$ 119.50
28	876765		Tube Kit			Immediately	$ 86.33
29	W10843121		Drier (service)   (Replaces: 4387019)			Immediately	$ 52.57
29	W10843121		Drier (production)   (Replaces: 2201796)			Immediately	$ 52.57
30	WPW10339879		Strap   (Replaces: 2155774)				$ 7.90
32	24364001		Clip, Compressor		Appelez-nous	-
33	WP4387764		Capacitator (service)   (Replaces: 4387764)				$ 177.04
33	WPW10662129		Capacitator (production)   (Replaces: 999532)			Immediately	$ 58.86
34	2165793		Wire Assembly Unit		Appelez-nous	-
35	2201801		Tray, Evaporator				$ 78.52
38	WP2172890		Wire Assembly, Capacitator   (Replaces: 2172890)				$ 8.10
39	1105406		Clip, Tube		Appelez-nous	-
40	WP489128		Screw   (Replaces: 488500)				$ 10.88
42	978029		Valve Access (5/8``)				$ 93.85
42	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 105.25
42	876764		Valve, Access(3/16``)			Immediately	$ 91.35
42	978028		Valve, Access (1/2)		Appelez-nous	-
42	978030		Valve, Access (3/4``)				$ 130.71
42	WP965173		Screw   (Replaces: 487415)			Immediately	$ 10.72
42	978026		Valve, Access (5/16``)			Immediately	$ 128.09
42	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 21.64
