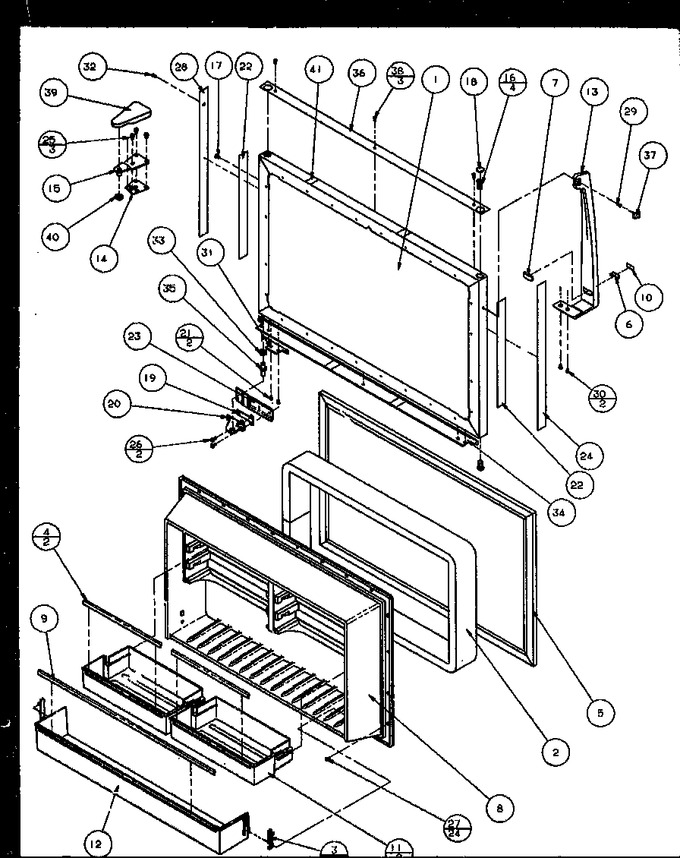

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	10263508E		Assy Frz Door Fm		Appelez-nous	-
2	876370		Insulation Bott (1= 1ft)   (Replaces: B0523588)				$ 243.14
3	10202001		Clip, Retainer		Appelez-nous	-
4	10183923		Trim Dr. Shelf		Appelez-nous	-
5	D7605121		Gasket, Door Frz, Black		Appelez-nous	-
6	10184501		Pad Nameplate		Appelez-nous	-
7	10184305		Plug Nameplate		Appelez-nous	-
8	10184602		Liner Fz. Door		Appelez-nous	-
9	10183924		Trim Dr. Shelf		Appelez-nous	-
10	10184401		Nameplate, Handle		Appelez-nous	-
11	10183206		Shelf Fz Door		Appelez-nous	-
12	10183306		Retainer Door		Appelez-nous	-
13	10253521		Fz Handle Assy Bk		Appelez-nous	-
14	10200302		Shim, Top Hinge		Appelez-nous	-
14	10200301		Shim, Top Hinge		Appelez-nous	-
14	10200303		Shim, Top Hinge		Appelez-nous	-
15	D7757806		Top Hinge Assy		Appelez-nous	-
16	10393802		Bushing, Door (wht)		Appelez-nous	-
18	10263705		Plug, Button		Appelez-nous	-
19	10200506		Shim, Center Hinge		Appelez-nous	-
19	10200504		Shim, Center Hinge		Appelez-nous	-
19	10200505		Shim, Center Hinge		Appelez-nous	-
20	10200701		Hinge, Center		Appelez-nous	-
21	WPW10348409		Mounting Screw   (Replaces: M0203944)			Immediately	$ 8.20
22	R0195037		Tape Kit		Appelez-nous	-
23	10321201		Top Strip		Appelez-nous	-
24	10339721		Trim		Appelez-nous	-
25	R9800670		Kit, Screw   (Replaces: M0257244)				$ 10.58
26	W11573362		Screw, T. F.   (Replaces: M0226233)				$ 14.72
27	M0219730		Screw				$ 7.65
28	10339722		Trim		Appelez-nous	-
29	WPW10348409		Mounting Screw   (Replaces: M0203944)			Immediately	$ 8.20
30	WPW10348409		Screw   (Replaces: M0222429)			Immediately	$ 8.20
31	10200202		Stop, Door		Appelez-nous	-
32	M0310713		Plug		Appelez-nous	-
33	WPM0274057		Shim, Non Metal (wht)   (Replaces: M0274057)			Immediately	$ 8.40
34	10339903		Trim, Bottom Frz-refrig		Appelez-nous	-
35	WP67006744		Pin, Hinge (ctr)   (Replaces: 10351001)				$ 8.68
36	10339805		Trim-top Fz		Appelez-nous	-
37	10201809		Cover, Handle Screw-blk		Appelez-nous	-
38	W11245710		Screw, Sm (stnls)   (Replaces: M0210417)			Immediately	$ 14.75
39	10182604		Cover, Hinge (ebony)		Appelez-nous	-
40	M0274058		Shim, Non Metal (wht)				$ 5.83
41	A3030335		Gasket-per Ft		Appelez-nous	-
