SELECT A DIAGRAM

02 - Door


03 - Cabinet


04 - Liner, Lit/optional


05 - Unit


06 - Icemaker


07 - Shelf

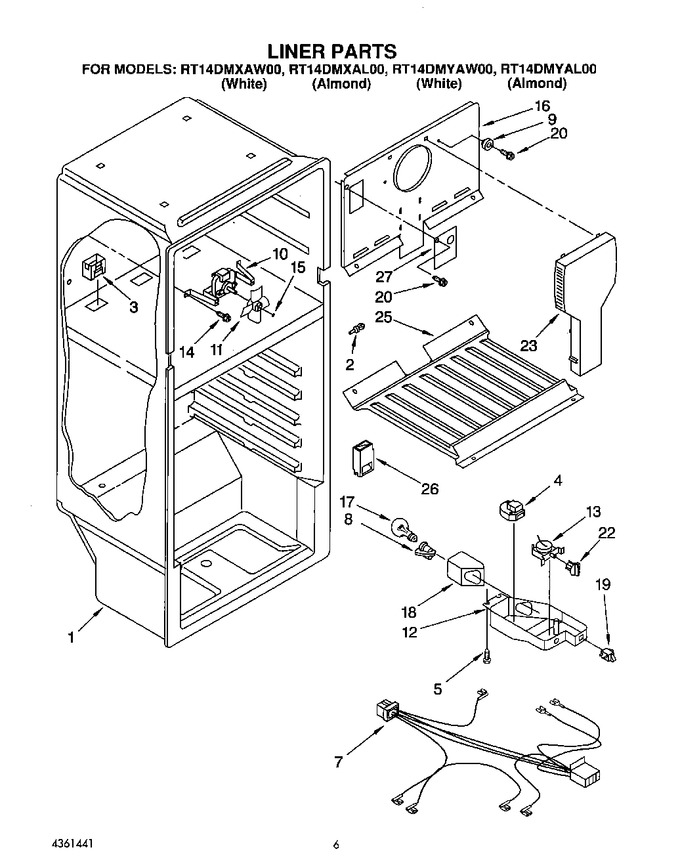

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Liner (not A Serviceable Part)		Appelez-nous	-
2	939962		Rivet-plastic				$ 12.42
3	9791377		Diffuser-air		Appelez-nous	-
4	WP2183400		Timer, Defrost   (Replaces: 2162044)			Immediately	$ 86.97
5	WP489174		Screw   (Replaces: 489174)				$ 7.30
7	2176927		Wire Assy. Control Box   (Replaces: 9791406)		Appelez-nous	-
8	4387478		Socket, Light   (Replaces: 2162085)			Immediately	$ 115.67
9	531933		Grommet				$ 5.70
10	2166013		Fan Motor & Bracket Assy.		Appelez-nous	-
11	2160471		Fan Blade		Appelez-nous	-
12	2215213		Control Box   (Replaces: 9791814)				$ 116.05
13	9790409		Thermostat				$ 104.58
14	WP489478		Screw   (Replaces: 489242)				$ 8.18
15	992953		Ring, Compression		Appelez-nous	-
16	9790382		Cover-evaporator		Appelez-nous	-
17	W11679940		Light Bulb   (Replaces: 946059)			Immediately	$ 11.30
18	W11034434		Light Shield   (Replaces: 9791702)			Immediately	$ 108.92
19	W11384469		Switch, Rocker Arm   (Replaces: 1108112)			Immediately	$ 39.09
20	WP488729		Screw, 8 X 1/2   (Replaces: 489196)			Immediately	$ 8.28
22	WP2202885		Control Knob   (Replaces: 9791351)				$ 27.70
23	2166026		Air Tower		Appelez-nous	-
25	9790380		Freezer Floor		Appelez-nous	-
26	9790402		Air Diffuser		Appelez-nous	-
27	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
27	350956		Paint, Spray 13 Oz. (almond)				$ 54.01
27	WP503695		Cork, Sealer 1/4 Pound)   (Replaces: 503695)				$ 123.84
27	WP505587		Sealer, Mastic (1 Qt.).   (Replaces: 505587)			Immediately	$ 182.65
27	WP542638		Grease, Silicone (1/2 Oz.)   (Replaces: 542638)			Immediately	$ 12.78
27	542639		Cement, Alumilastic 1-1/4 Oz.)		Appelez-nous	-
27	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
27	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
27	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 18.81
27	876370		Kit, Insulation (14 Pcs. 3`` X 24`` X 48``)   (Replaces: 876305)				$ 243.14
27	876370		Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``)   (Replaces: 978941)				$ 243.14
27	261890		Xenamel, Golden Harvest (13 Oz. Spray Can)		Appelez-nous	-
27	DD81-03523A		Paint, Touch-up 1/2 Oz. (harvest Gold)   (Replaces: 72110)				$ 137.86
27	799340		Enamel, Black (1 Qt. Uncut)		Appelez-nous	-
27	261891		Enamel, Golden Harvest (1 Qt. Uncut)		Appelez-nous	-
27	978883		Enamel, Almond (1 Qt. Uncut)		Appelez-nous	-
27	833938		Kit, Terminal Connector				$ 8.47
27	WP2217784		Cover, Hole   (Replaces: 944760)				$ 47.22
27	212643		Sealer, Gum (4 Feet)			Immediately	$ 82.13
27	479502		Tape, Vinyl 3/4 X 108``)				$ 66.77
27	876370		Kit, Insulation (2 Pcs. 3`` X 24 `` X 48``)				$ 243.14
27	876029		Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``)		Appelez-nous	-
27	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 51.75
27	606755		Bag, Insulation (36-5/8`` X 46``)				$ 82.37
27	799833		Kit, Evaporator Repair (aluminum Epoxy)		Appelez-nous	-
27	350942		Primer White (13 Oz. Spray Can)				$ 94.14
27	350941		Leveler, Enamel (13 Oz. Spray Can)		Appelez-nous	-
27	285006		Enamel, Black (13 Oz. Spray Can)   (Replaces: 350939)				$ 59.89
27	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 40.12
	LIT4361441		Parts List		Appelez-nous	-
	LIT2163325		Use & Care Guide		Appelez-nous	-
	LIT2163327		Energy Label		Appelez-nous	-
	LIT9791409		Service & Wiring Sheet		Appelez-nous	-
	1117510		Torx Key				$ 5.84

    View Diagram in Separate Window       Print Part List
