Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 10354701 Harness. M.c Appelez-nous -
2 A3140801 Clip K Appelez-nous -
3 A3041801 Strap K Appelez-nous -
4 A9008301 Felt Appelez-nous -
5 WP489069 Screw   (Replaces: M0220617) In-Stock Immediately $ 8.40

6 B0559501 Cover K Appelez-nous -
7 B5742601 Blade, Fan Appelez-nous -
8 A3072001 Sleeve K Appelez-nous -
9 WPW10169124 Grommet   (Replaces: B8333401) Special Order $ 7.55

10 B8365302 Washer Appelez-nous -
11 D7790601 Drain Pan Appelez-nous -
12 C8982101 Bracket, Cond Motor Appelez-nous -
13 C8866906 Overload Appelez-nous -
14 C3553407 Relay Appelez-nous -
15 4007A Drier   (Replaces: B2150502) In-Stock Immediately $ 15.05

16 833697 Motor, Fan   (Replaces: D7584001) In-Stock Immediately $ 88.15

17 R0168027 Kit, Defrost Timer   (Replaces: 10129303) In-Stock Immediately $ 159.86

18 W10439652 Compressor   (Replaces: D7743203) Special Order $ 442.20

19 D7691002 Cond. Fan Shrd Appelez-nous -
20 D7752701 Bracket, Timer Appelez-nous -
21 M0110508 Clip Appelez-nous -
22 M0223803 Screw Appelez-nous -
23 M0221332 Screw, Shoulder Appelez-nous -
24 M0218118 Screw Appelez-nous -
25 WPW10339879 Tie   (Replaces: M0321202) Special Order $ 8.30

26 M0500107 Grommet K Appelez-nous -
27 D7595413 Base Pan Appelez-nous -
28 B8346301 Spacer Cond. Appelez-nous -
29 D7654301 Condenser Pntd Appelez-nous -
30 M0293703 Speednut Appelez-nous -
31 M0104002 Clamp-drier Appelez-nous -
32 C8890208 Back M.c. Comp Appelez-nous -
33 B5759604 Gasket Appelez-nous -
34 M0253916 Screw Appelez-nous -
35 M0211530 Screw Appelez-nous -
36 WP489069 Screw   (Replaces: M0220617) In-Stock Immediately $ 8.40

37 M0219704 Screw Appelez-nous -
38 WP22002933 Screw, Sm   (Replaces: M0211357) Special Order $ 8.06

39 DC61-40081A Tie, Wire   (Replaces: M0585401) Special Order $ 0.94

40 WP12990527 Screw   (Replaces: M0219916) In-Stock Immediately $ 8.76

41 D7790501 Support Drain Pan Appelez-nous -
42 D7835501 Support M.c. Appelez-nous -
NI C8916701 Spring K Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

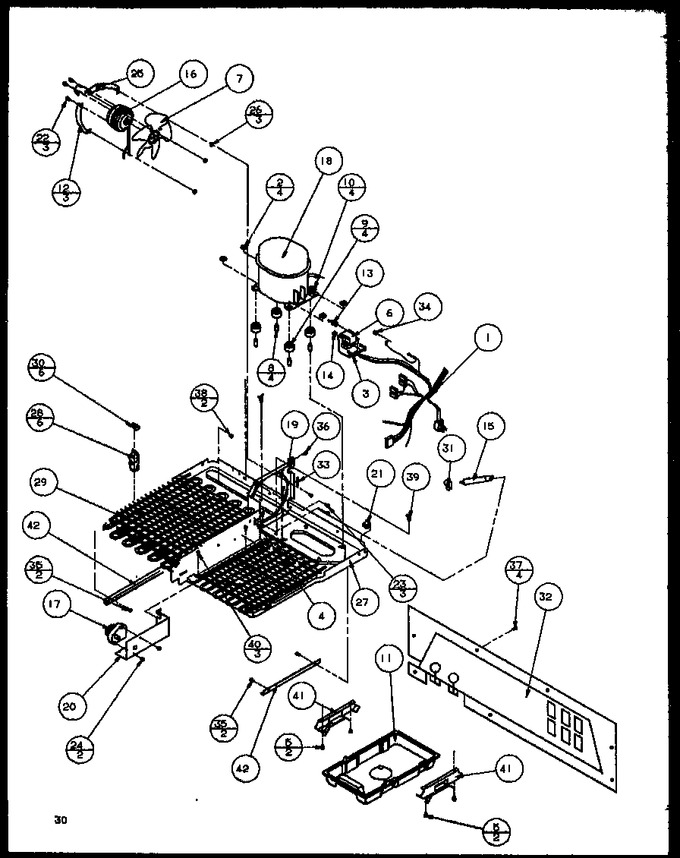

Diagram for TZ21QW (BOM: P1111710W W)
