Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 10474803 Grille, Toe (gold) Appelez-nous -
2 10551501 Clip-toe Grille Appelez-nous -
3 Y10430109 Pan-crisper Appelez-nous -
4 10797501 Slide, Crisper Appelez-nous -
5 10461901 Post, Crisper Support In-Stock Immediately $ 25.85

6 WP841180A Tray, Ice   (Replaces: D7725401) In-Stock Immediately $ 47.84

7 10448901 Rack, Wine Appelez-nous -
8 67006425 Screw, Sm   (Replaces: M0209616) In-Stock Immediately $ 7.30

9 D7599002 Ladder, Center Appelez-nous -
10 D7874402 Cover-fl Tb/plug Appelez-nous -
11 10423121 Bin, Ice Appelez-nous -
12 10423001 Rack, Ice Service Appelez-nous -
13 10530201 Seal, Crisper Appelez-nous -
14 10505607 Extr. Wire Shelf Appelez-nous -
15 10250502 Rack, Freezer Appelez-nous -
16 10506002 Shelf, Wire Frz Appelez-nous -
17 M0310724 Plug Appelez-nous -
18 M0310720 Plug Appelez-nous -
19 M0230923 Screw Appelez-nous -
20 M0270508 Washer Appelez-nous -
21 10370012 Shelf, Glass Special Order $ 86.24

22 D7599105 Ladder, Side Appelez-nous -
23 M0219523 Screw Appelez-nous -
24 10481001 Roller, Pan Special Order $ 10.99

25 67006425 Screw-sm No.8-1/2lg   (Replaces: M0211017) In-Stock Immediately $ 7.30

26 67006692 Screw, Shoulder   (Replaces: M0238105) Special Order $ 10.79

27 10432701 Rail, Side Crisper Appelez-nous -
28 10432702 Rail, Side Crisper Appelez-nous -
29 10432803 Rail, Ctr. Crisper Appelez-nous -
30 10432804 Rail, Ctr. Crisper Appelez-nous -
31 10688014 Extr. R. Crisper Frt Appelez-nous -
32 10688017 Extr L Crisper Frt Appelez-nous -
33 10433804 Rail, Crisper Back Appelez-nous -
34 10467804 Band, Crisper Cont. Appelez-nous -
35 10435604 Rail, Crisper Back Appelez-nous -
36 67006692 Screw, Hi Lo   (Replaces: M0237932) Special Order $ 10.79

37 10687801 Rail, R. Crisper Frt Appelez-nous -
38 10687802 Rail, L. Crisper Frt Appelez-nous -
NI 10698501 Assy, Crisper Frame Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

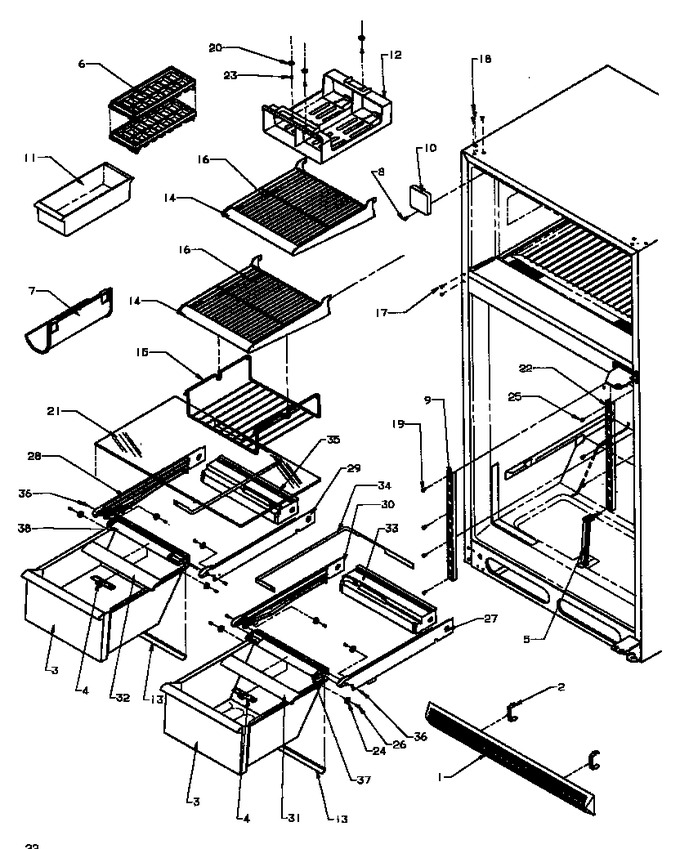

Diagram for TZ21R2G (BOM: P1181501W G)
