SELECT A DIAGRAM

01 - Cabinet Back


02 - Cabinet Bottom


03 - Cabinet Shelving


04 - Cabinet Shelving


05 - Compressor Compartment


06 - Control Panel


07 - Divider Block


08 - Evap Area


09 - Fz Door

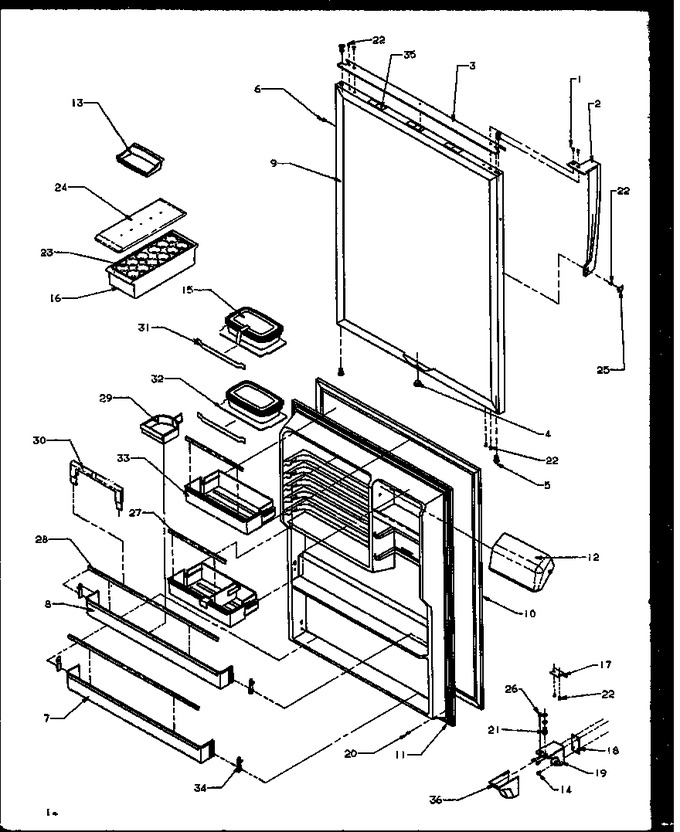

10 - Ref Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10348409		Screw   (Replaces: M0222429)			Immediately	$ 8.20
2	10253512		Ref Handle Assembly, Gold		Appelez-nous	-
2	10253508		Ref Handle Assy Bk		Appelez-nous	-
2	10253514		Assy, Ref Hndl L		Appelez-nous	-
2	10253510		Handle Assy Ref W		Appelez-nous	-
3	10201507		Cap, Door		Appelez-nous	-
3	10201506		Cap, Door		Appelez-nous	-
4	M0310336		Plug, Button (blk)		Appelez-nous	-
4	M0310308		Plug, Button (wht)		Appelez-nous	-
4	M0310337		Plug, Button Gold		Appelez-nous	-
4	M0310338		Plug Button Almond		Appelez-nous	-
5	10393802		Bushing, Door (wht)		Appelez-nous	-
5	10393803		Bushing, Door (blk)		Appelez-nous	-
6	M0310714		Plug		Appelez-nous	-
6	WP12246608		Plug, Button (blk)   (Replaces: M0310728)			Immediately	$ 8.15
6	WP67001130		Plug, Button (wht)   (Replaces: M0310701)			Immediately	$ 5.98
6	M0310724		Plug		Appelez-nous	-
7	10419001		Retainer, Door		Appelez-nous	-
8	10183108		Retainer, Ref Door (no Decor)		Appelez-nous	-
9	10481901GQ		Assy Rfr Dr Gld Cfc11		Appelez-nous	-
9	10481901WQ		Assy, Ref Door (white) Btm		Appelez-nous	-
9	10481901EQ		Assy, Ref Door (black) Cfc11		Appelez-nous	-
9	10481901LQ		Assy Ref. Door Fm		Appelez-nous	-
10	WP12550111Q		Gasket,ref Dr(white)   (Replaces: 10456803)				$ 178.50
10	10456813		Gasket,ref Dr(black)		Appelez-nous	-
11	10440801		Liner, Refrig Door		Appelez-nous	-
12	10423411		Door, Dairy		Appelez-nous	-
13	10310901		Tray, Butter		Appelez-nous	-
14	WP67006715		Screw   (Replaces: M0233847)				$ 7.55
15	D7806405		Container Sec. Ser.		Appelez-nous	-
16	10423124		Bin, Egg V		Appelez-nous	-
17	10447102		Stop, Door		Appelez-nous	-
17	W11708403		Stop-black Door   (Replaces: 10447103)			Immediately	$ 14.75
18	10447901		Shim, Btm Hinge		Appelez-nous	-
18	10447902		Shim Hinge		Appelez-nous	-
19	10433208		Hinge, Bottom White		Appelez-nous	-
19	10433209		Hinge, Bottom Black		Appelez-nous	-
20	M0219730		Screw				$ 7.65
21	67007018		Pin, Hinge (btm)   (Replaces: 10200801)			Immediately	$ 8.62
22	WPW10348409		Mounting Screw   (Replaces: M0203944)			Immediately	$ 8.20
23	10436504		Tray, Egg		Appelez-nous	-
24	10436404		Lid, Utility				$ 60.85
25	10201802		Cover-handle Screw W		Appelez-nous	-
25	10201806		Cover- Hndl Screw Almond		Appelez-nous	-
25	10201810		Cover, Handle Screw-blk		Appelez-nous	-
25	10201804		Cover-handle Screw G		Appelez-nous	-
26	M0310331		Plug, Button Almond		Appelez-nous	-
26	M0310330		Plug, Button White		Appelez-nous	-
27	10183933		Trim, Door Shelf		Appelez-nous	-
28	10183969		Trim, Door Shelf		Appelez-nous	-
29	10441101		Hugger, Bottle (shelf Divider)		Appelez-nous	-
30	10468001		Retainer, Tall Pkg		Appelez-nous	-
31	10425301		Retainer, Package		Appelez-nous	-
32	10425101		Shelf, Service		Appelez-nous	-
33	10416901		Shelf, Ref Door		Appelez-nous	-
34	10202001		Clip, Retainer		Appelez-nous	-
35	M0275163		Tape Per Roll		Appelez-nous	-
37	10462804		Cover, L Hinge Lw		Appelez-nous	-
37	10462802		Cover, Hinge Lower (white)		Appelez-nous	-
37	10462801		Cover, Hinge Lower (black)		Appelez-nous	-
37	10462803		Cover, Hinge Lower (gold)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
