SELECT A DIAGRAM

01 - Cabinet


02 - Liner


03 - Compartment Separator


04 - Shelf


05 - Freezer Door

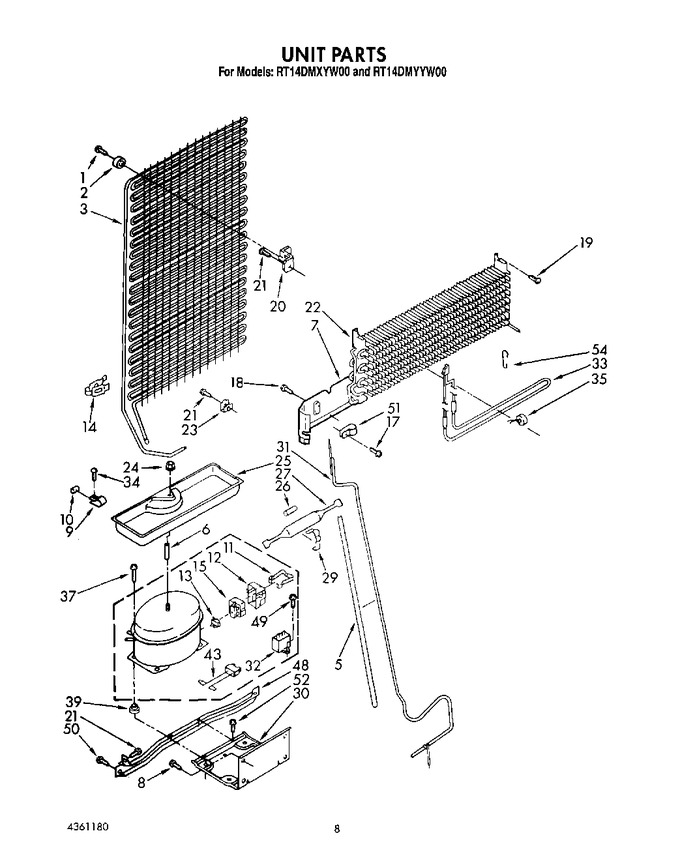

06 - Unit


07 - Refrigerator Door


08 - Icemaker, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP488163		Screw, 8 X 1-1/6   (Replaces: 488208)				$ 7.92
2	944772		Bumper (2)		Appelez-nous	-
3	2154869		Condenser		Appelez-nous	-
5	1108073		Sleeve		Appelez-nous	-
6	2154438		Spacer		Appelez-nous	-
7	1108169		Heat Shield Evaporator		Appelez-nous	-
8	WP489427		Screw   (Replaces: 489339)				$ 7.84
9	510716		Tube Clamp		Appelez-nous	-
10	945593		Dampener		Appelez-nous	-
11	938384		Spring, Relay Case		Appelez-nous	-
12	1108115		Case, Relay		Appelez-nous	-
13	1108114		Overload (includes Relay)		Appelez-nous	-
14	1105406		Clip, Tube		Appelez-nous	-
15	N/A		Relay (see Overload)		Appelez-nous	-
17	489050		Screw				$ 692.56
18	WP965173		Screw, 8 X 3/8 (also Order Item 58)   (Replaces: 487869)			Immediately	$ 11.87
19	WP489174		Screw (2)   (Replaces: 489169)				$ 7.30
20	944791		Bracket, Condenser (2)		Appelez-nous	-
22	1108180		Evaporator		Appelez-nous	-
23	4386951		Clip, Condenser Mounting (2)   (Replaces: 942852)		Appelez-nous	-
24	285002		Nut   (Replaces: 489153)				$ 12.85
25	1101002		Evaporator Tray		Appelez-nous	-
27	W10843121		Dryer   (Replaces: 945424)			Immediately	$ 57.13
28	482801		Also Order Tray Mounting Kit				$ 119.50
28	876765		Tube Kit			Immediately	$ 90.65
28	2154645		Compressor (includes Items 11, 12, 13, 15, 32, 43, & 49)		Appelez-nous	-
29	1127590		Clamp, Dryer		Appelez-nous	-
30	1118781		Unit Mounting Plate		Appelez-nous	-
31	1127874		Exchanger, Heat		Appelez-nous	-
32	WPW10662129		Running Capacitor   (Replaces: 1118581)			Immediately	$ 58.86
33	2162025		Heater, Defrost		Appelez-nous	-
34	WP965173		Screw   (Replaces: 487415)			Immediately	$ 11.87
35	WPW10225581		Bi-metal, Defrost   (Replaces: 2149849)			Immediately	$ 50.77
37	876811		Screw   (Replaces: 489373)				$ 7.79
39	876811		Grommet (4)   (Replaces: 1100826)				$ 7.79
43	WP2172890		Wire Assembly   (Replaces: 1127675)				$ 8.51
48	1118782		Unit Mounting Rail		Appelez-nous	-
49	W11693756		Screw   (Replaces: 488687)			Immediately	$ 14.76
50	WP489427		Screw, 1/4-28 X 1/2   (Replaces: 489339)				$ 7.84
51	489151		Clamp		Appelez-nous	-
52	WP489128		Screw   (Replaces: 488500)				$ 11.40
54	876764		Valve, Access(3/16``)			Immediately	$ 95.92
54	978028		Valve, Access (1/2)		Appelez-nous	-
54	978029		Valve Access (5/8``)				$ 93.85
54	978030		Valve, Access (3/4``)				$ 137.25
54	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 110.51
54	1108172		Support, Heater		Appelez-nous	-
54	978026		Valve, Access (5/16``)			Immediately	$ 134.49
54	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 21.64

    View Diagram in Separate Window       Print Part List
